Installation Instructions
Original Instructions

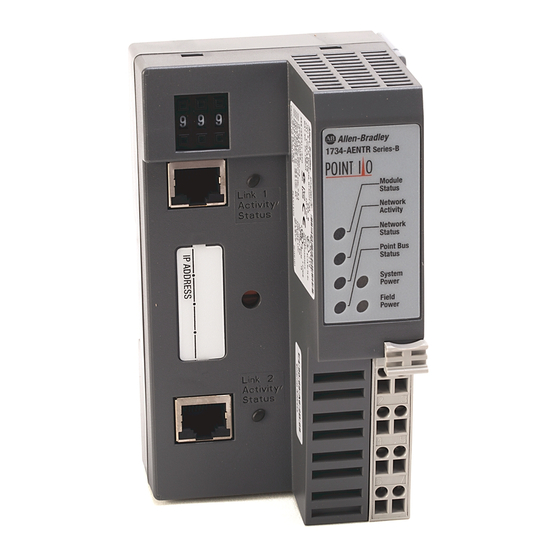

POINT I/O EtherNet/IP Adapter
Catalog numbers 1734-AENT, 1734-AENTK, Series C
Catalog numbers with the suffix 'K' are conformal coated and their specifications are the same as non-conformal coated catalogs.
Topic
Summary of Changes
This publication contains the following new or updated information. This list includes substantive updates only and is not intended to reflect all changes.
Topic
Updated template
Updated UK and European Hazardous Location Approval
Updated IEC Hazardous Location Approval
Updated Special Conditions for Safe Use
Updated General Specifications
Updated Environmental Specifications
Updated Certifications
Page
1
4
5
5
6
6
8
9
10
Page
throughout
3
4
4
10
11
12
Advertisement
Table of Contents
Related Manuals for Rockwell Automation Allen-Bradley C Series
Summary of Contents for Rockwell Automation Allen-Bradley C Series
-
Page 1: Table Of Contents
Installation Instructions Original Instructions POINT I/O EtherNet/IP Adapter Catalog numbers 1734-AENT, 1734-AENTK, Series C Catalog numbers with the suffix ‘K’ are conformal coated and their specifications are the same as non-conformal coated catalogs. Topic Page Summary of Changes About the Adapter Before You Begin Install the Adapter Set the Chassis Size... - Page 2 Indien de apparatuur wordt gebruikt op een wijze die niet is gespecificeerd door de fabrikant, dan bestaat het gevaar dat de beveiliging van de apparatuur niet goed werkt. Rockwell Automation Publication 1734-IN042G-EN-P - September 2022...
- Page 3 Such locations correspond to Zone 2 classification according to UKEX regulation 2016 No. 1107 and ATEX directive 2014/34/EU. • May have catalog numbers followed by a "K" to indicate a conformal coating option. Rockwell Automation Publication 1734-IN042G-EN-P - September 2022...
-
Page 4: About The Adapter
The enclosure must be accessible only by the use of a tool. • This equipment shall be used within its specified ratings defined by Rockwell Automation. • Transient protection shall be provided that is set at a level not exceeding 140% of the peak rated voltage at the supply terminals to the equipment. -
Page 5: Before You Begin
Secure DIN rail to mounting surface approximately every 200 mm (7.8 in.) and use end-anchors appropriately. Be sure to ground the DIN rail properly. Refer to Industrial Automation Wiring and Grounding Guidelines, Rockwell Automation publication 1770-4.1, for more information. -
Page 6: Set The Chassis Size
• Use the pen push thumbwheel switches on the adapter. • Use a Dynamic Host Configuration Protocol (DHCP) server, such as Rockwell Automation® BootP/DHCP. • Retrieve the IP address from nonvolatile memory. The adapter reads the thumbwheel switches first to determine if the switches are set to a valid number. You set the node address using the 3-position pen push thumbwheel switch using a pen tip. - Page 7 12. Rotate the terminal block into the wiring base until it locks itself into place. 13. Replace the adjacent module in its base. 14. Reconnect the Ethernet cable(s) to the adapter. 15. Set the IP Address for this module. 16. Configure the adapter chassis size. Rockwell Automation Publication 1734-IN042G-EN-P - September 2022...
-
Page 8: Wire The Adapter
WARNING: Do not wire more than two conductors on any single terminal. WARNING: To comply with the CE Low Voltage Directive (LVD), this equipment must be powered from a Safety Extra Low Voltage (SELV) or Protected Extra Low Voltage (PELV) compliant source. Rockwell Automation Publication 1734-IN042G-EN-P - September 2022... -
Page 9: Interpret Status Indicators
Not active. Adapter power is off or DC-DC converter problem present. System power Solid green System power is on. DC-DC converter is active (5V). Not active. field power is off. Field power Solid green Power is on. 24V is present. Rockwell Automation Publication 1734-IN042G-EN-P - September 2022... -
Page 10: Specifications
Use the Conductor Category information for planning conductor routing as described in the appropriate System Level Installation Manual. Maximum 31 direct connections for standard I/O or maximum 20 direct connections if any safety I/O module resides in the backplane. Rockwell Automation Publication 1734-IN042G-EN-P - September 2022... - Page 11 IEC 61000-4-5: Surge transient immunity ±1 kV line-line(DM) and ±2 kV line-earth(CM) on power ports ±2 kV line-earth(CM) on communications ports IEC 61000-4-6: Conducted RF immunity 10Vrms with 1kHz sine-wave 80% AM from 150kHz...80MHz Rockwell Automation Publication 1734-IN042G-EN-P - September 2022...
- Page 12 POINT I/O EtherNet/IP adapter. Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1. More information on proper wiring and grounding techniques. You can view or download publications at rok.auto/literature. Rockwell Automation Publication 1734-IN042G-EN-P - September 2022...
- Page 13 POINT I/O EtherNet/IP Adapter Installation Instructions Notes: Rockwell Automation Publication 1734-IN042G-EN-P - September 2022...
- Page 14 Rockwell Otomasyon Ticaret A.Ş. Kar Plaza İş Merkezi E Blok Kat:6 34752 İçerenköy, İstanbul, Tel: +90 (216) 5698400 EEE Yönetmeliğine Uygundur Allen-Bradley, ControlLogix, expanding human possibility, FactoryTalk, POINT I/O, POINTBus, Rockwell Automation, Studio 5000 Logix Designer, and TechConnect are trademarks of Rockwell Automation, Inc.
