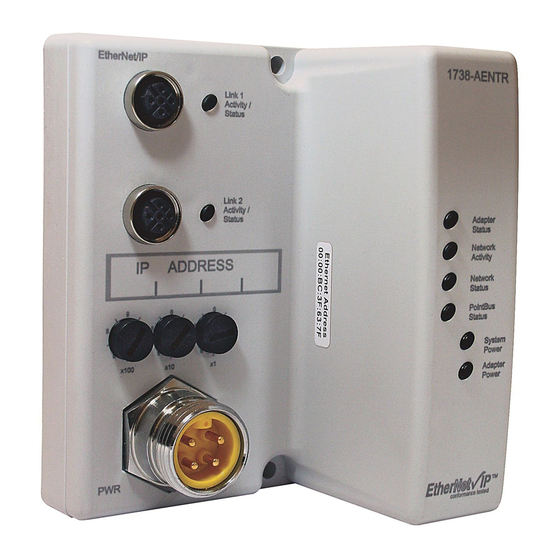

Installation Instructions ArmorPoint I/O 2-Port EtherNet/IP Adapter, Series A Catalog Number 1738-AENTR Topic Page Important User Information Environment and Enclosure Prevent Electrostatic Discharge About the Module Mount the Adapter and I/O Base Set the Network Address Wire the EtherNet/IP Adapter... -
Page 2: Important User Information
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment. -
Page 3: Environment And Enclosure
ArmorPoint I/O 2-Port EtherNet/IP Adapter, Series A 3 Environment and Enclosure This equipment is intended for use in overvoltage Category II applications (as ATTENTION defined in IEC 60664-1), at altitudes up to 2000 m (6562 ft) without derating. This equipment is considered Group 1, Class A industrial equipment according to IEC/CISPR 11. -
Page 4: About The Module
4 ArmorPoint I/O 2-Port EtherNet/IP Adapter, Series A Make sure all connectors and caps are securely tightened to properly seal the ATTENTION connections against leaks and maintain IP enclosure type requirements. To comply with the CE Low Voltage Directive (LVD), all connected I/O must be ATTENTION powered from a source compliant with the following: Safety Extra Low Voltage (SELV) or Protected Extra Low Voltage (PELV). - Page 5 To effectively use your adapter, note the following considerations. Determine Compatibility RSLogix 5000 version 17 or greater must be used for the 1738-AENTR’s Add-on Profile. The 1738-AENTR adapters will accept I/O connections with the electronic keying for the 1738-AENT. This allows the 1738-AENTR adapter to be used in a daisy-chain topology with the 1738-AENT’s profile...
- Page 6 6 ArmorPoint I/O 2-Port EtherNet/IP Adapter, Series A If using the adapter with a 1756-ENBT module, 1768-ENBT module or an L3xE processor, use the following required firmware versions for these bridge modules: • 1756-ENBT firmware version 4.5 or greater • 1768-ENBT firmware version 2.1 or greater •...
-
Page 7: Mount The Adapter And I/O Base
ArmorPoint I/O 2-Port EtherNet/IP Adapter, Series A 7 Mount the Adapter and I/O Base To mount the ArmorPoint I/O adapter on a wall or panel, use the screw holes provided with the ArmorPoint I/O adapter. The ArmorPoint I/O adapter must be mounted on a grounded metal IMPORTANT mounting plate or other conductive surface. - Page 8 8 ArmorPoint I/O 2-Port EtherNet/IP Adapter, Series A 4. Ground the system using the ground lug connection in the I/O base. (The ground lug connection is also a mounting hole.) Mounting base Set to keyswitch position to 4 for the 1738 analog output modules Ground lug connection...
-
Page 9: Set The Network Address
• adjust the switches on the front of the module • use a Dynamic Host Configuration Protocol (DHCP) server, such as Rockwell Automation BootP/DHCP • retrieve the IP address from nonvolatile memory The adapter reads the switches first to determine if the switches are set to a valid number. -
Page 10: Wire The Ethernet/Ip Adapter
Pin 1 - Tx + Pin 2 - Rx + Pin 3 - Tx - Pin 4 - Rx - 43765 1738-AENTR Auxiliary Power Connector M18 Male In Connector (view into connector) Pin 1 - User Power + Pin 2 - Adapter Power +... -
Page 11: Interpret The Status Indicators
ArmorPoint I/O 2-Port EtherNet/IP Adapter, Series A 11 Interpret the Status Indicators Link 1 Activity/Status indicator Link 2 Activity/Status indicator IP A D D R E S S Adapter Status indicator Network Activity indicator Network Status indicator PointBus Status indicator System Power indicator Adapter Power indicator PW R... -
Page 12: Network Activity
12 ArmorPoint I/O 2-Port EtherNet/IP Adapter, Series A Adapter Status (Continued) Status Description Recommended action Unrecoverable fault has occurred: Replace device. - self-test failure (Flash checksum failure at power up, ramtest failure or EEPROM checksum failure at cycle power). - firmware fatal error. Network Activity Status Description... -
Page 13: Network Status
ArmorPoint I/O 2-Port EtherNet/IP Adapter, Series A 13 Network Status Status Description Recommended action Device not initialized. Device does Apply power to device, verify IP not have an IP address. address, and correct, as needed. Green CIP connections present. Device None. - Page 14 14 ArmorPoint I/O 2-Port EtherNet/IP Adapter, Series A Adapter Power Status Description Recommended action Not active; adapter power is off. Apply adapter power. Green Power is on; 24V input is present. None. PointBus Status Status Description Recommended action Device is not online. Apply power to device, wait for - Device has not completed dup_MAC_id to complete, and...
- Page 15 ArmorPoint I/O 2-Port EtherNet/IP Adapter, Series A 15 PointBus Status (Continued) Status Description Recommended action Unrecoverable fault has occurred: 1. Make sure an I/O module is not - device is bus off. using a MAC ID = 0. 2. Make sure all backplane modules are communicating at the proper baud rate.
-
Page 16: Specifications
0.8 A for the 1738-AENTR. Backplane current can be extended beyond 0.8 A by using a 1738-EP24DC Backplane Extension Power Supply. - Page 17 ArmorPoint I/O 2-Port EtherNet/IP Adapter, Series A 17 General (Continued) Attribute Value Indicators 3 red/green status indicators on CPU: - Adapter Status - Network Status (Ports 1 and 2 combined) - PointBus Status 1 green/yellow status indicator on CPU: - Network Activity (Ports 1 and 2 combined) 2 green/yellow status indicators on base: - Link 1 Activity/Status - Link 2 Activity/Status...
- Page 18 18 ArmorPoint I/O 2-Port EtherNet/IP Adapter, Series A General (Continued) Attribute Value Weight, approx. 0.33 kg (0.72 lb) Mounting type Metal panel Enclosure type rating Meets IP65/66/67/69K (when marked) Refer to publication M116-CA001A-EN-P for more information. Use this Conductor Category information for planning conductor routing. Refer to Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1.
- Page 19 ArmorPoint I/O 2-Port EtherNet/IP Adapter, Series A 19 Environmental Attribute Value Temperature, operating IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock): -20…60 °C (-4…140 °F) Temperature, IEC 60068-2-1 (Test Ab, Unpackaged Non-operating Cold), nonoperating IEC 60068-2-2 (Test Bb, Unpackaged Non-operating Dry Heat): -40…85 °C (-40…185 °F)
- Page 20 20 ArmorPoint I/O 2-Port EtherNet/IP Adapter, Series A Environmental (Continued) Attribute Value EFT/B immunity IEC 61000-4-4: ±4 kV at 5 kHz on power ports ±3 kV at 5 kHz on communications ports Surge transient IEC 61000-4-5: immunity ±1 kV @ line-line (DM) and ±2 kV @ line-earth (CM) on power ports ±2 kV @ line-earth (CM) on communications ports Conducted RF immunity...
- Page 21 ArmorPoint I/O 2-Port EtherNet/IP Adapter, Series A 21 Certifications Certification (when Value product is marked) European Union 2004/108/EC EMC Directive, compliant with: EN 61000-6-2; Industrial Immunity EN 61000-6-4; Industrial Emissions EN 61131-2; Programmable Controllers (Clause 8, Zone A & B) EN 61326-1;...
- Page 22 22 ArmorPoint I/O 2-Port EtherNet/IP Adapter, Series A Notes: Publication 1738-IN028B-EN-E - February 2010...
- Page 23 ArmorPoint I/O 2-Port EtherNet/IP Adapter, Series A 23 Notes: Publication 1738-IN028B-EN-E - February 2010...
-
Page 24: Rockwell Automation Support
New Product Satisfaction Return Rockwell Automation tests all of its products to ensure that they are fully operational when shipped from the manufacturing facility. However, if your product is not functioning and needs to be returned, follow these procedures.
