Installation Instructions
Original Instructions

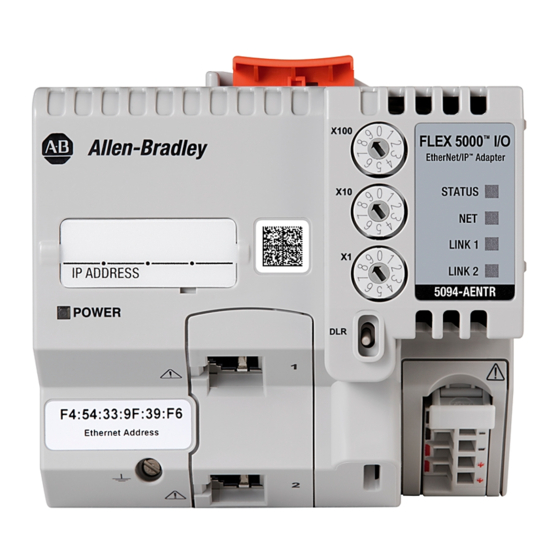

FLEX 5000 EtherNet/IP Adapters with RJ45 Ports
Catalog Numbers 5094-AENTR, 5094-AENTRXT, 5094-AEN2TR, 5094-AEN2TRXT
Topic
Product Overview
The FLEX 5000™ EtherNet/IP™ Adapters with RJ45 Ports perform the following functions:
• Facilitate high-speed data transfer across an EtherNet/IP network between FLEX 5000 I/O modules and a Logix 5000™ controller.
• Provide system-side power to FLEX 5000 I/O modules.
• The 5094-AENTR and 5094-AENTRXT adapters support as many as 8 FLEX 5000 I/O modules.
• The 5094-AEN2TR and 5094-AEN2TRXT adapters support as many as 16 FLEX 5000 I/O modules.
The adapters are configured with the Studio 5000 Logix Designer® application. For more information on how to use FLEX 5000 EtherNet/IP
Adapters with RJ45 Ports, including the compatible Logix 5000 controllers and Logix Designer application versions, see the publications that are
listed in
Additional Resources on page
15.
Page
5
5
6
7
8
9
11
12
13
13
14
15
Advertisement
Table of Contents
Related Manuals for Rockwell Automation Allen-Bradley FLEX 5000 Series
Summary of Contents for Rockwell Automation Allen-Bradley FLEX 5000 Series
-
Page 1: Table Of Contents
Installation Instructions Original Instructions FLEX 5000 EtherNet/IP Adapters with RJ45 Ports Catalog Numbers 5094-AENTR, 5094-AENTRXT, 5094-AEN2TR, 5094-AEN2TRXT Topic Page About the Adapter Before You Begin Adapter Dimensions Set the Network Internet Protocol (IP) Address Install the Adapter onto the DIN Rail Connect Power to the Adapter Connect the Adapter to an EtherNet/IP Network Install the End Cap... - Page 2 Indien de apparatuur wordt gebruikt op een wijze die niet is gespecificeerd door de fabrikant, dan bestaat het gevaar dat de beveiliging van de apparatuur niet goed werkt. Rockwell Automation Publication 5094-IN001C-EN-P - May 2019...
- Page 3 Zone 2 classification to IEC 60079-0. • The type of protection is "Ex nA IIC T4 Gc" according to IEC 60079-15. • Comply to Standards IEC 60079-0:2011, IEC 60079-15:2010, reference IECEx certificate number IECEx UL17.0047X. Rockwell Automation Publication 5094-IN001C-EN-P - May 2019...
- Page 4 Any illustrations, charts, sample programs, and layout examples shown in this publication are intended solely for the purposes of example. Since there are many variables and requirements associated with any particular installation, Rockwell Automation does not assume responsibility or liability for actual use based upon the examples shown in this publication.
-
Page 5: About The Adapter
If you do not use the rotary switches to set the adapter IP address, you can use the following software to set the IP address: • DHCP server • BootP DHCP EtherNet/IP Commissioning Tool Software • RSLinx® Classic software For more information, see Set the Network Internet Protocol (IP) Address on page Rockwell Automation Publication 5094-IN001C-EN-P - May 2019... -
Page 6: Adapter Dimensions
FLEX 5000 EtherNet/IP Adapter with RJ45 Ports Dimensions 94.0 mm (3.70 in.) 96.5 mm (3.80 in.) X100 FLEX 5000 EtherNet/IP ™ Adapter STATUS LINK 1 92.7 mm IP ADDRESS LINK 2 (3.65 in.) 5094-AENTR POWER Rockwell Automation Publication 5094-IN001C-EN-P - May 2019... -
Page 7: Set The Network Internet Protocol (Ip) Address
DIN rail materials (for example, aluminum or plastic) that can corrode, oxidize, or are poor conductors can result in improper or intermittent grounding. Secure DIN rail to mounting surface approximately every 200 mm (7.8 in.) and use end-anchors appropriately. Be sure to ground the DIN rail properly. Refer to Industrial Automation Wiring and Grounding Guidelines, Rockwell Automation publication 1770-4.1 for more information. -
Page 8: Install The Adapter Onto The Din Rail
3. Position the adapter so that the back of it faces the DIN rail. 4. Press the adapter against the DIN rail until it clicks. 5. Make sure that the adapter is latched securely. Rockwell Automation Publication 5094-IN001C-EN-P - May 2019... -
Page 9: Connect Power To The Adapter
If so, you must install the power control device at the VDC+ terminal on the removable terminal block. If you install the power control device at the VDC- terminal, the adapter can fail to power up or power down properly. 1. Verify that the external power supply is not powered. Rockwell Automation Publication 5094-IN001C-EN-P - May 2019... - Page 10 WARNING: If you connect or disconnect wiring while power is applied, an electrical arc can occur. This could cause an explosion in hazardous location installations. Be sure that power is removed or the area is nonhazardous before proceeding. If necessary, complete the following tasks to disconnect wires from the Power RTB on the adapter. Rockwell Automation Publication 5094-IN001C-EN-P - May 2019...
-
Page 11: Connect The Adapter To An Ethernet/Ip Network
Use an RJ45 straight cable to connect the adapter to an EtherNet/IP network. For more information on using shielded or unshielded cables, see the Rockwell Automation Knowledgebase article, “Grounding the Ethernet Cable Shield in an EtherNet/IP System”, Answer ID 167121. -
Page 12: Install The End Cap
2. Slide an end anchor along the left-side of the DIN rail until it touches the adapter. 3. Slide an end anchor along the right-side of the DIN rail until it touches the end cap on the last installed terminal base. 4. Tighten the screw of each end anchor. Rockwell Automation Publication 5094-IN001C-EN-P - May 2019... -
Page 13: Power The System
™ Adapter 6. Pull the adapter off the DIN rail. 7. To replace the adapter, repeat the installation steps that are described beginning at Set the Network Internet Protocol (IP) Address on page Rockwell Automation Publication 5094-IN001C-EN-P - May 2019... -
Page 14: Specifications
(14 AWG) solid or stranded copper wire rated at 105 °C (221 °F), or greater, 3.5mm (0.14in) max diameter including Wire size, functional earth terminal insulation, single wire connection only. Screw-type RTB: • 0.4 N•m (3.5 lb•in) Terminal block torque, Power RTB Spring-type RTB: • Not applicable Rockwell Automation Publication 5094-IN001C-EN-P - May 2019... -
Page 15: Additional Resources
EtherNet/IP network. http://www.odva.org Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1 Provides general guidelines for installing a Rockwell Automation industrial system. Product Certifications website, Provides declarations of conformity, certificates, and other certification details. http://www.rockwellautomation.com/global/certification/overview.page You can view or download publications at http://www.rockwellautomation.com/literature/. - Page 16 Rockwell Automation maintains current product environmental information on its website at http://www.rockwellautomation.com/rockwellautomation/about-us/sustainability-ethics/product-environmental-compliance.page. Allen-Bradley, Compact 5000, FLEX 5000, Logix 5000, Rockwell Automation, Rockwell Software, RSLinx Classic, Studio 5000 Logix Designer, and TechConnect are trademarks of Rockwell Automation, Inc. EtherNet/IP is a trademark of ODVA, Inc.
