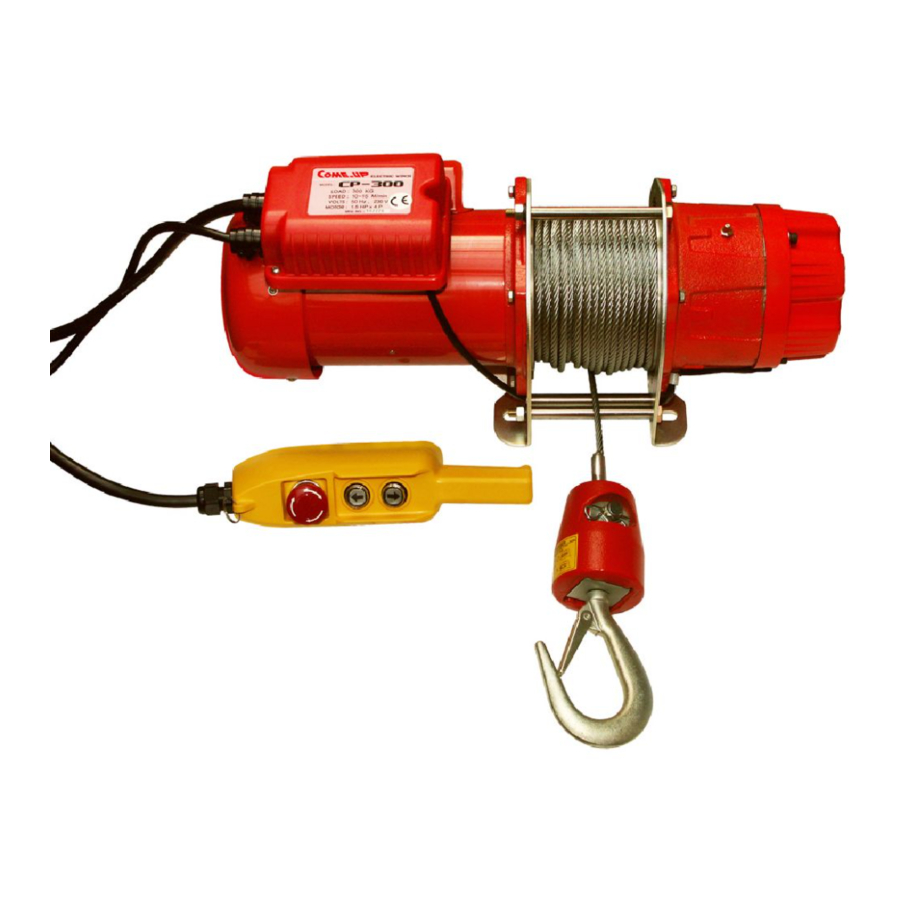

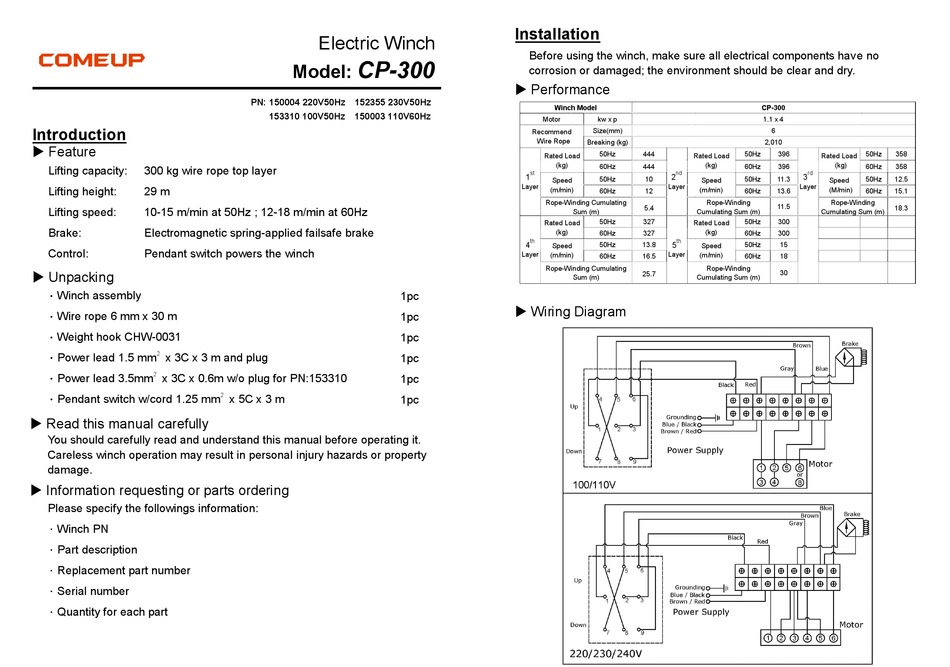

Comeup CP-300 Quick Start Manual

Introduction

 Feature
Lifting capacity: 300 kg wire rope top layer
Lifting height: 29 m
Lifting speed: 10-15 m/min at 50Hz ; 12-18 m/min at 60Hz
Brake: Electromagnetic spring-applied failsafe brake
Control: Pendant switch powers the winch
 Unpacking
．Winch assembly
．Wire rope 6 mm x 30 m
．Weight hook CHW-0031
2
．Power lead 1.5 mm
x 3C x 3 m and plug
．Power lead 3.5mm 2
x 3C x 0.6m w/o plug for PN:153310
．Pendant switch w/cord 1.25 mm
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Part description
．Replacement part number
．Serial number
．Quantity for each part
Electric Winch
CP-300
Model:
PN: 150004 220V50Hz 152355 230V50Hz
153310 100V50Hz 150003 110V60Hz
2
x 5C x 3 m

Installation

Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Performance
Winch Model
Motor
Recommend
Wire Rope
Rated Load
(kg)
st
1
Speed
Layer
(m/min)
Rope-Winding Cumulating
Sum (m)
Rated Load
(kg)
th
4
Speed
Layer (m/min)
Rope-Winding Cumulating
Sum (m)
1pc
 Wiring Diagram
1pc
1pc
1pc
1pc
1pc
CP-300
kw x p 1.1 x 4
Size(mm)
Breaking (kg) 2,010
50Hz 444 50Hz
Rated Load
(kg)
60Hz 444 60Hz
nd
2
50Hz 10 50Hz
Speed
Layer
(m/min)
60Hz 12 60Hz
Rope-Winding
5.4
Cumulating Sum (m)
50Hz 327 50Hz
Rated Load
(kg)
60Hz 327 60Hz
th
50Hz 13.8 5 50Hz
Speed
Layer (m/min)
60Hz 16.5 60Hz
Rope-Winding
25.7
Cumulating Sum (m)
6
396 50Hz 358
Rated Load
(kg)
396 60Hz 358
rd
3
11.3 50Hz 12.5
Speed
Layer
(M/min)
13.6 60Hz 15.1
Rope-Winding
11.5
18.3
Cumulating Sum (m)
300
300
15
18
30
