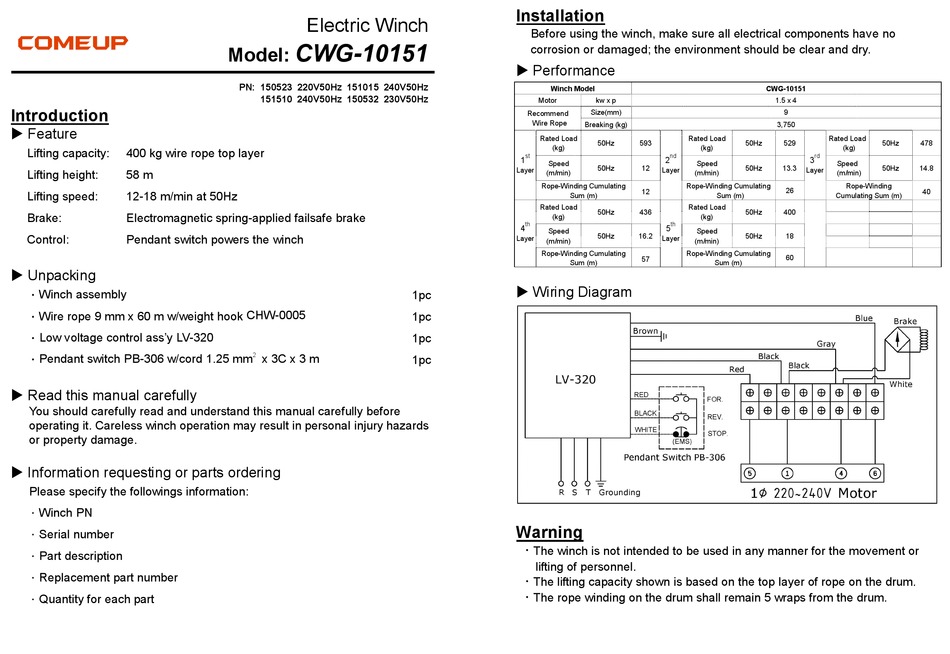

Comeup CWG-10151 Quick Start Manual

Introduction

 Feature
Lifting capacity: 400 kg wire rope top layer
Lifting height: 58 m
Lifting speed: 12-18 m/min at 50Hz
Brake: Electromagnetic spring-applied failsafe brake
Control: Pendant switch powers the winch
 Unpacking
．Winch assembly
．Wire rope 9 mm x 60 m w/weight hook CHW-0005
．Low voltage control ass'y LV-320
．Pendant switch PB-306 w/cord 1.25 mm
 Read this manual carefully
You should carefully read and understand this manual carefully before
operating it. Careless winch operation may result in personal injury hazards
or property damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part
Electric Winch
CWG-10151
Model:
PN: 150523 220V50Hz 151015 240V50Hz
151510 240V50Hz 150532 230V50Hz
2
x 3C x 3 m

Installation

Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Performance
Winch Model
Motor
Size(mm)
Recommend
Wire Rope
Breaking (kg)
Rated Load
(kg)
st
1
Speed
Layer
(m/min)
Rope-Winding Cumulating
Sum (m)
Rated Load
(kg)
th
4
Speed
Layer
(m/min)
Rope-Winding Cumulating
Sum (m)
 Wiring Diagram
1pc
1pc
1pc
1pc

Warning

． The winch is not intended to be used in any manner for the movement or
lifting of personnel.
． The lifting capacity shown is based on the top layer of rope on the drum.
． The rope winding on the drum shall remain 5 wraps from the drum.
CWG-10151
kw x p
Rated Load
50Hz 593 50Hz
(kg)
nd
2
Speed
50Hz 12 50Hz
Layer
(m/min)
Rope-Winding Cumulating
12
Sum (m)
Rated Load
50Hz 436 50Hz
(kg)
th
5
Speed
50Hz 16.2 50Hz
Layer
(m/min)
Rope-Winding Cumulating
57
Sum (m)
1.5 x 4
9
3,750
Rated Load
529 50Hz 478
(kg)
rd
3
Speed
13.3 50Hz 14.8
Layer
(m/min)
Rope-Winding
26
40
Cumulating Sum (m)
400
18
60
