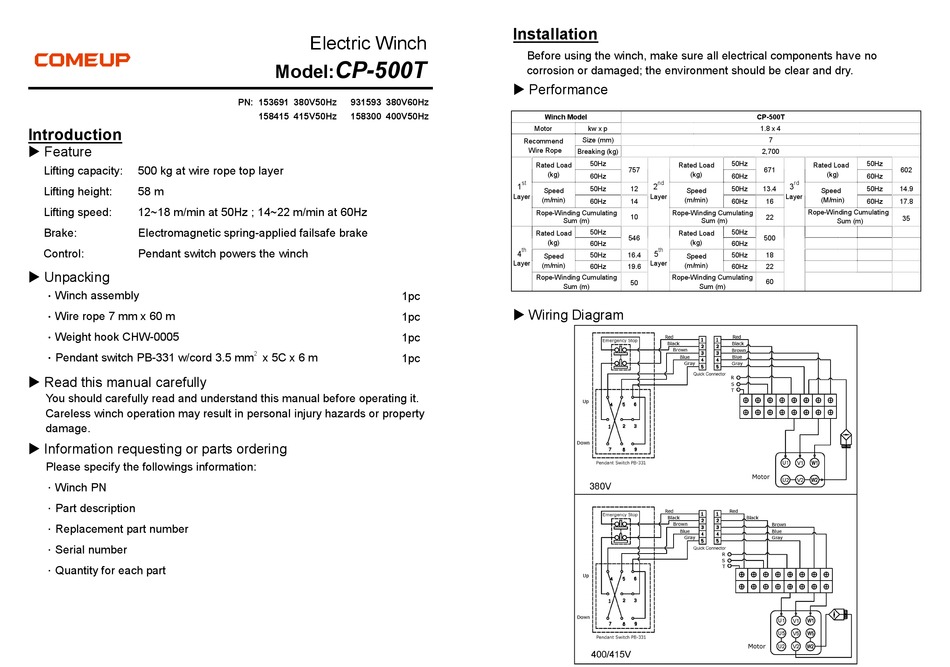

Comeup CP-500T Quick Start Manual

Introduction

 Feature
Lifting capacity: 500 kg at wire rope top layer
Lifting height: 58 m
Lifting speed: 12~18 m/min at 50Hz ; 14~22 m/min at 60Hz
Brake: Electromagnetic spring-applied failsafe brake
Control: Pendant switch powers the winch
 Unpacking
．Winch assembly
．Wire rope 7 mm x 60 m
．Weight hook CHW-0005
．Pendant switch PB-331 w/cord 3.5 mm
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Part description
．Replacement part number
．Serial number
．Quantity for each part
Electric Winch
CP-500T
Model:
PN: 153691 380V50Hz 931593 380V60Hz
158415 415V50Hz 158300 400V50Hz
1pc
1pc
1pc
2
x 5C x 6 m 1pc

Installation

Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Performance
Winch Model
Motor kw x p
Size (mm)
Recommend
Wire Rope
Breaking (kg)
50Hz
Rated Load Rated Load
757
(kg) (kg)
60Hz
st nd
1 2
50Hz 12
Speed Speed
Layer Layer
(m/min) (m/min)
60Hz 14
Rope-Winding Cumulating Rope-Winding Cumulating
10
Sum (m)
50Hz
Rated Load Rated Load
546
(kg) (kg)
60Hz
th th
4 5
50Hz 16.4
Speed Speed
Layer Layer
(m/min) (m/min)
60Hz 19.6
Rope-Winding Cumulating Rope-Winding Cumulating
50
Sum (m)
 Wiring Diagram
CP-500T
1.8 x 4
7
2,700
50Hz 50Hz
Rated Load
671
(kg)
60Hz 60Hz
rd
3
50Hz 13.4 50Hz
Speed
Layer
(M/min)
60Hz 16 60Hz
Rope-Winding Cumulating
22
Sum (m) Sum (m)
50Hz
500
60Hz
50Hz 18
60Hz 22
60
Sum (m)
602
14.9
17.8
35
