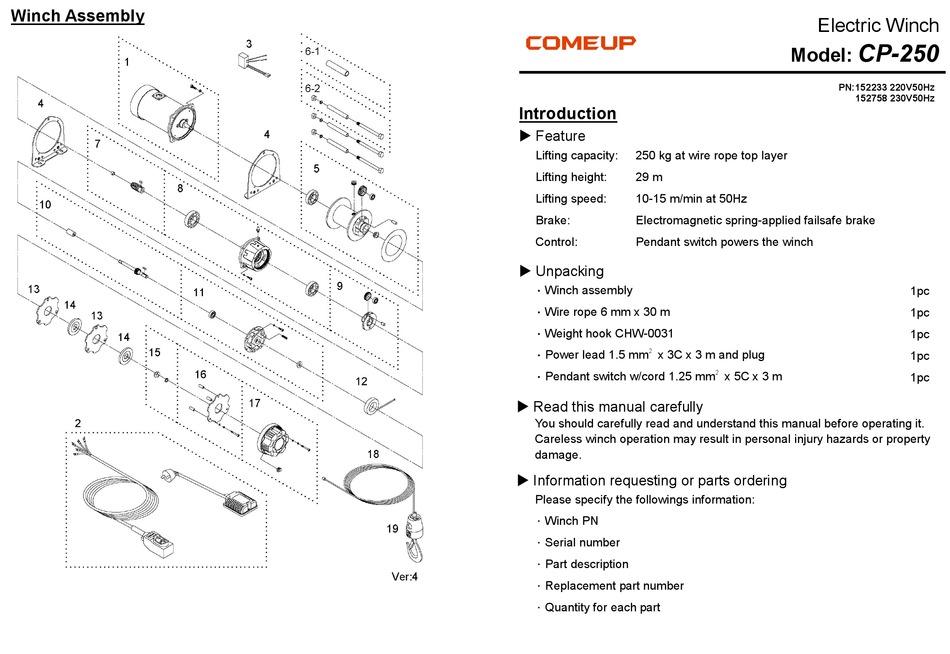

Winch Assembly
Introduction
Feature
Lifting capacity:
250 kg at wire rope top layer
Lifting height:
29 m
Lifting speed:
10-15 m/min at 50Hz
Brake:
Electromagnetic spring-applied failsafe brake
Control:
Pendant switch powers the winch
Unpacking
．Winch assembly
．Wire rope 6 mm x 30 m
．Weight hook CHW-0031
．Power lead 1.5 mm
2
x 3C x 3 m and plug
．Pendant switch w/cord 1.25 mm
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part

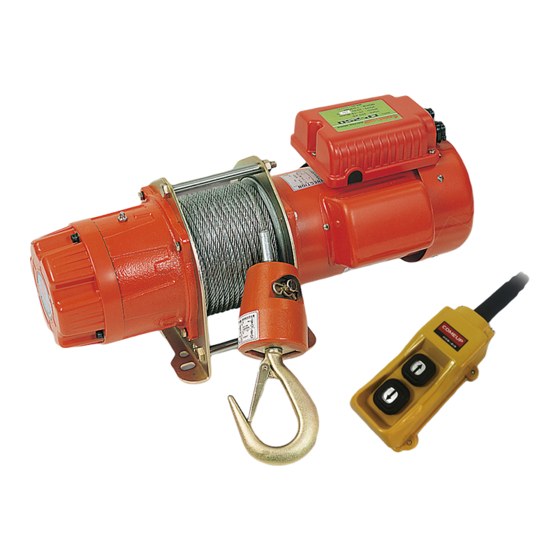

Electric Winch
CP-250
Model:
PN:152233 220V50Hz
152758 230V50Hz
2
x 5C x 3 m
1pc
1pc
1pc
1pc
1pc
