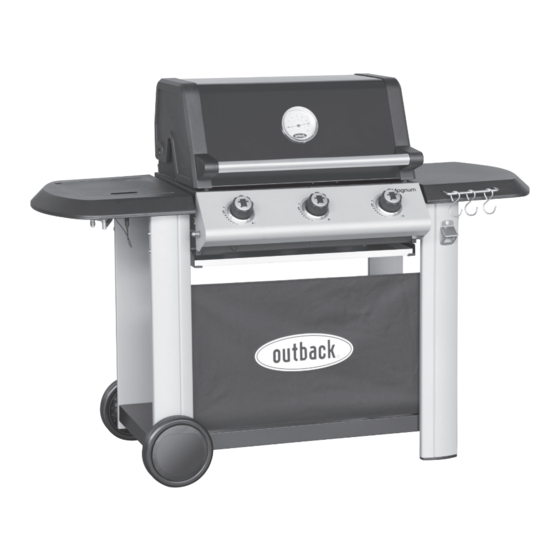

Magnum 3 gas/charcoal hybrid

Advertisement

Quick Links

Photographs are not to scale.
Specifications subject to change
without prior notice.
WARNING
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and contact
your local dealer.
Assembly and Operating Instructions for
®
Outback
Magnum 3 Gas/Charcoal Hybrid
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not affect your
statutory rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check
that the hose connections are tight and leak test each time you reconnect the gas
bottle.
For Flare-up control please refer to the 'OPERATION' section of this manual.
RC4341PC
FOR YOUR SAFETY
1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
2575
0359

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC4341PC and is the answer not in the manual?

Questions and answers

Summary of Contents for Outback RC4341PC

  • Page 1 Assembly and Operating Instructions for ® Outback Magnum 3 Gas/Charcoal Hybrid RC4341PC Photographs are not to scale. Specifications subject to change 2575 0359 without prior notice.  For outdoor use only. Not for commercial use.  Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.
  • Page 2: Parts List

    Parts List Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‗Hardware Reference Diagram‘. CODE PART Magnum 3 Gas/Charcoal Hybrid Hood (Pre-Assembled to Body)  Hood Handle  HOOD Heat Indicator ...
  • Page 3: Parts Diagrams

    Parts Diagrams Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see hardware pack page.
  • Page 4 Hardware Reference Diagram Specifications subject to change without prior notice. M6X10 Bolts (19 pcs) M4X10 Bolts (2 pcs) D6,D7...
  • Page 5 Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,  adjustable spanner or metric spanner set. The assembly of this barbecue at least requires 2 people.  Remove any internal components or packaging from the barbecue body. ...
  • Page 6 Unscrew the Locknuts (D10x2pcs) from both ends of the Axle (C18). Slide the axle through the corresponding holes in the left legs. Slide a Wheel (C19) over each end of the axle. Secure the wheels into place with the locknuts. Place the Hubcaps (C20) onto the outsides of the wheels.
  • Page 7 (Rear view of the barbecue trolley.) Velcro Attach the Front Screen (C16) to the Front Left / Right Legs as shown. Attach the Bottle Opener (C15) to the right front leg using a M6x10 Bolt (D4).
  • Page 8 FRONT REAR FRONT REAR D1 D2 D3 Attach the Drip Tray Left Bracket (B10) to the barbecue body using M5x15 Bolts (D1x2pcs), M5 Washers (D2x2pcs) and M5 Nuts (D3x2pcs) as shown. Repeat above process for the Drip Tray Right Bracket (B11). NOTE: Ensure that the big tabs of the brackets which stop the drip tray are located at the front of the barbecue.
  • Page 9 Retaining Unscrew the retaining nut from Side Burner Ignitor (C3). Insert the ignitor through the Side Burner Base (C2) and secure with the retaining nut. Carefully lay the side burner base into the side burner shelf horizontally, and fix it using M6x15 Bolts (D5x4pcs) and M6 Nuts (D8x4pcs).
  • Page 10 Press the Side Burner Knob (C7) onto the side burner valve stem. ② ① Step Step ③ ④ Step Step Unscrew the pre-assembled Wing Nut (D11) from the Side Burner (C4). Insert the wire of the Side Burner Electrode (C5) through the side burner base; make sure it is installed in correct position as shown.
  • Page 11 Connect the side burner electrode wire to the side burner ignitor as shown. WARNING: BEFORE OPERATION, ENSURE SIDE BURNER WIRES ARE CONNECTED TO IGNITOR. IF THE CIRCUIT IS NOT COMPLETED, THE IGNITOR WILL NOT SPARK! Place the Side Burner Grid (C6) onto the side burner base. NOTE: Only use cookware with a base diameter or between 150mm and 220mm on the side burner.
  • Page 12 Attach the Tool Hooks (C10) to the Hook Rail (C9) as shown; make sure that the direction of each tool hook is facing outwards. Attach the tool hook assembly to the Side Shelf (C8) using M6x10 Bolts (D4x2pcs). Attach the side shelf assembly to the Right Front / Rear Legs using M6x10 Bolts (D4x8pcs) as shown.
  • Page 13 Lay the Flame Tamers (B3) carefully into the body ensuring it lies level within the body. Lay the Cooking Grills (B1) and Round Grill (B2) into place. Attach the Warming Rack (A4) to the Barbecue Body (B5) as shown.
  • Page 14 Insert the Drip Tray (B9) by sliding it underneath the barbecue body. ASSEMBLY IS NOW COMPLETE.
  • Page 15 Leak Test Diagram 1. Maximum diameter or breadth is 320mm. 2. Maximum height (regulator included) is 700mm. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE.
  • Page 16: Gas, Regulator And Hose

    Important Information  Before you use your barbecue, perform a leak test. This is the only safe and sure way to detect any gas leaking from joints and Please read these instructions carefully connections of the barbecue after assembly. before assembly and use of your barbecue. ...
  • Page 17: Installation

    BOTTLE IN ORDER FOR THE BARBECUE TO understand IMPORTANT OPERATE SAFELY AND EFFICIENTLY. USE INFORMATION section of this manual. INCORRECT FAULTY  Your barbecue is not designed to be used REGULATOR BOTTLE with more than 50% of the cooking area as a DANGEROUS AND WILL INVALIDATE ANY solid plate —...
  • Page 18 Manual lighting instructions Roasting Hood Cooking  Open the barbecue and side burner hood Barbecues equipped with a roasting hood give the option to form an ‗oven‘ for roasting or or lid before lighting. Never light your baking food, such as joints of meat or whole barbecue or side burner with the hood or lid chickens, etc.
  • Page 19: Care And Maintenance

    during cooking. Care and Maintenance When flare-ups do occur, they can usually be Regularly clean your barbecue between uses extinguished by applying baking soda or salt and especially after extended periods of directly onto the flame tamer. Always protect storage. Ensure barbecue your hands when handling anything near the...
  • Page 20 annually, or whenever heavy build-up is found, Trolley to ensure that there are no signs of blockage Wipe with a cloth wrung out in hot soapy water (debris, insects) in either the burner portholes or and dry. the primary air inlet of the burners. Use a pipe cleaner to clear obstructions.
  • Page 21: Technical Specifications

    Technical Specifications Notes: Heat Injector Burners Input Size Consumption ® Outback Magnum 3 Butane:943g/hr 12.96kW 1.02mm Gas/Charcoal Propane:926g/hr Hybrid Butane:178g/hr Side Burner 2.44kW 0.76mm Propane:174g/hr CE Approval Pin Number: 2575DM30422 UKCA Approval Pin Number: 0359BR665 Category: I 3+ (28-30/37) Gas / Pressure: G30 Butane at 28-30mbar and G31 Propane at 37mbar...
  • Page 22: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose is connected on Reconnect wire...
  • Page 23 The product has not sustained damage through foreign objects, substances or accidents.  The care and maintenance instructions given in your Outback manual have been followed.  If the product includes one or a number of parts or accessories, only the defective accessory or part will be replaced i.e.
