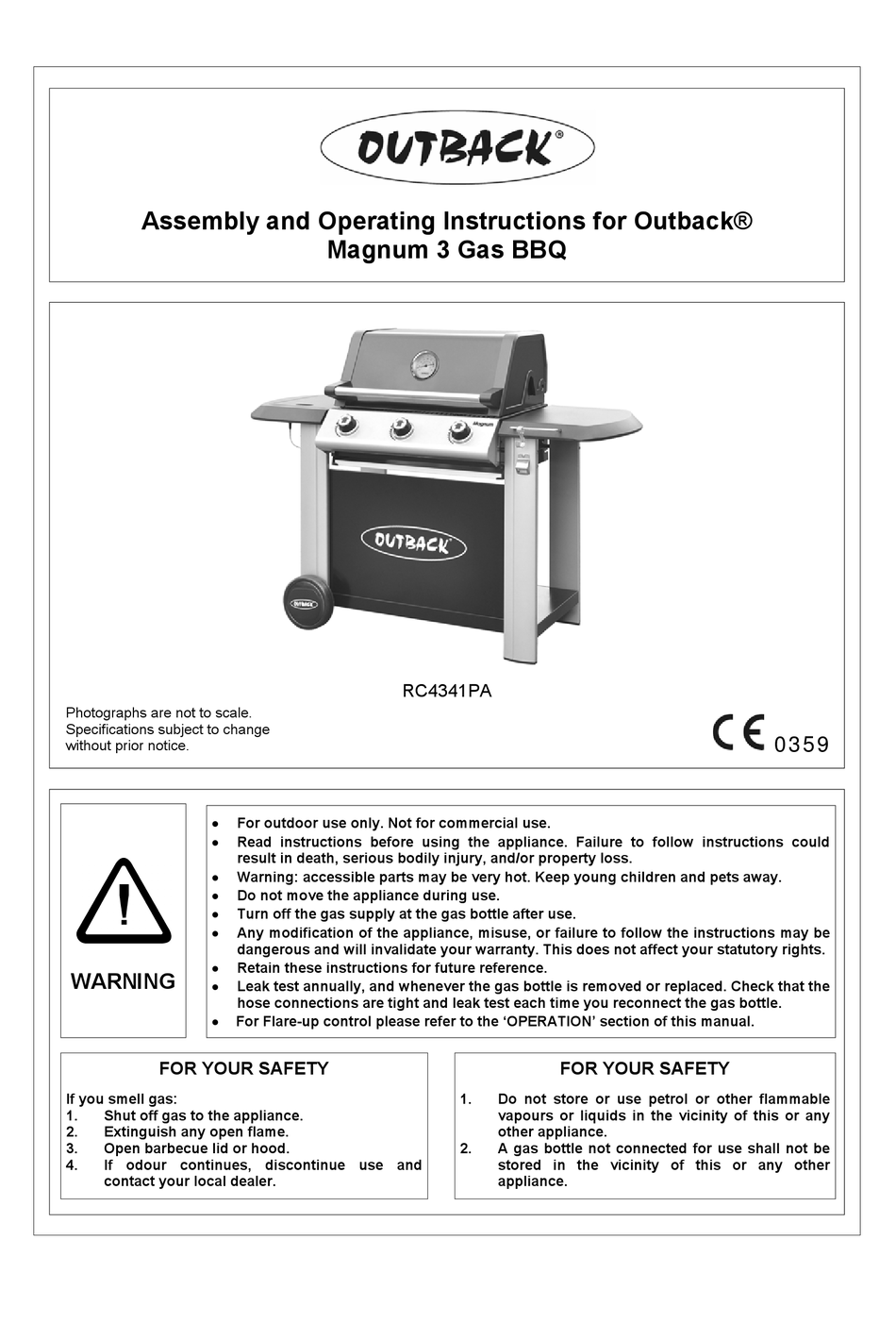

Assembly and Operating Instructions for Outback®
Photographs are not to scale.
Specifications subject to change
without prior notice.







WARNING


FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.

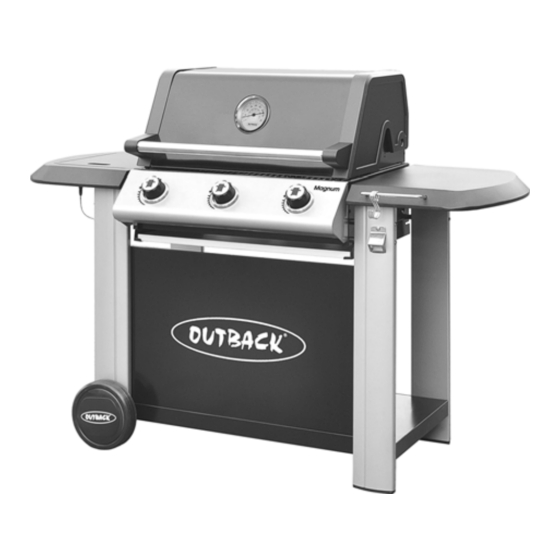

Magnum 3 Gas BBQ
RC4341PA
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may be
dangerous and will invalidate your warranty. This does not affect your statutory rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check that the
hose connections are tight and leak test each time you reconnect the gas bottle.
For Flare-up control please refer to the 'OPERATION' section of this manual.
FOR YOUR SAFETY
1.
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2.
A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
0359

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC4341PA and is the answer not in the manual?

Questions and answers

Related Manuals for Outback RC4341PA

Summary of Contents for Outback RC4341PA

  • Page 1 Assembly and Operating Instructions for Outback® Magnum 3 Gas BBQ RC4341PA Photographs are not to scale. Specifications subject to change 0359 without prior notice.  For outdoor use only. Not for commercial use.  Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.

  • Page 2: Parts List

    Parts List Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‘Hardware Reference Diagram’. CODE PART Magnum 3 Gas BBQ Hood (Pre-Assembled to Body)  Hood Handle  HOOD Heat Indicator ...

  • Page 3: Parts Diagrams

    Parts Diagrams Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see hardware pack page.
  • Page 4 Hardware Reference Diagram Specifications subject to change without prior notice. M4X10 Bolts （2 pcs） D6,D7...
  • Page 5 Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,  adjustable spanner or metric spanner set. The assembly of this barbecue at least requires 2 people.  Remove any internal components or packaging from the barbecue body. ...
  • Page 6 Unscrew the Locknuts (D10) from both ends of the Axle (C18). Slide the axle through the corresponding holes in the left legs. Slide the Wheels (C19) over each end of the axle. Secure the wheels into place with the locknuts. Place the Hubcaps (C20) onto the outsides of the wheels.
  • Page 7 (Rear view of the barbecue trolley.) Attach the Front Screen (C16) to the Front Left / Right Legs as shown. Attach the Bottle Opener (C15) to the right front leg using a M6x10 Bolts (D4).
  • Page 8 FRONT REAR FRONT REAR D1 D2 D3 Attach the Drip Tray Left Bracket (B8) to barbecue body using M5x15 Bolts (D1x2pcs), Washers (D2x2pcs) and M5 Nuts (D3x2pcs) as shown. Repeat above process for Drip Tray Right Bracket (B9). NOTE: Ensure that the big tabs of the brakets which stop the drip tray are located at the front of the barbecue.
  • Page 9 Pre-assembled Nut Unscrew the pre-assembled nut of the Ignition Button (C3). Insert the ignition button through the Side Burner Base (C2) and secure with the pre-assembled nut. Carefully lay the side burner base into the side burner shelf, then fixing it by using M6x15 Bolts (D5x4pcs) and M6 Nuts (D8x4pcs) as shown.
  • Page 10 Press the Side Burner Knob (C7) onto side burner valve stem. ① ② Step Step ④ ③ Step Step Unscrew the Wing Nut (D11) from the Side Burner (C4). Insert the wire of Side Burner Electrode (C5) into the hole at the side burner base. Feed the venturi tube of the side burner through the hole in bottom of side burner base as shown, then fix it and the side burner electrode onto side burner base using the wing nut.
  • Page 11 Connect the wire of side burner electrode to the ignition button as shown. Place the Side Burner Grid (C6) onto the side burner shelf. NOTE: Only use cookware with a base diameter of between 150mm and 220mm on the side burner.
  • Page 12 Insert the Hook Rail (C9) through the Tool Hooks (C10) as shown, then fix the assembly onto the Side Shelf (C8) using M6x10 Bolts (D4x2pcs). Make sure the hooks are facing outwards. Attach the side shelf assembly to the right front / rear Legs using M6x10 Bolt (D4x8pcs) as shown.
  • Page 13 Lay the Flame Tamers (B2) carefully into the body ensuring it lies level within the body. Lay the Cooking Grills (B1) into place. Attach the Warming Rack (A4) to the barbecue body as shown.
  • Page 14 Insert the Drip Tray (B7) by sliding it underneath the barbecue body. ASSEMBLY IS NOW COMPLETE.

  • Page 15: Leak Testing

    Leak Test Diagram 1. Maximum diameter or breadth is 320mm. 2. Maximum height (regulator included) is 700mm. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE.
  • Page 16 Important Information Before you use your barbecue, perform a  leak test. This is the only safe and sure way to detect any gas leaking from joints and Please read these instructions carefully before assembly and use of your barbecue. connections of the barbecue after assembly.

  • Page 17: Installation

    local gas dealer for the most suitable regulators not covered by warranty. and gas bottles. Preparation Before Cooking To prevent foods from sticking to the cooking Installation surface, please use a long handled brush to apply a light coat of cooking or vegetable oil Selecting a Location before each barbecuing session.
  • Page 18  bake or roast on a metal baking tray and set it Insert lit match through the right match- lighting hole on the right side of the on one side of the cooking grill. barbecue body and place near rightmost Turn the burner directly under the food to the burner porthole.

  • Page 19: Care And Maintenance

    given below.  Never handle hot parts with unprotected hands. Fat Fires  Never douse the barbecue with water when Empty and clean the drip tray of food debris its surfaces are hot. after each cooking session. If the barbecue is to be used for large gatherings, it will be In order to extend the life and maintain the necessary to turn off and cool the barbecue...
  • Page 20 on the burners. If rust appears between uses or Stainless steel surfaces can be cleaned using a stainless steel cleaner or methylated spirits and in storage, clean with a soft brass wire brush. spotting should taken care immediately. Failure to remove spotting can Flame Tamer lead to permanent discolouration.

  • Page 21: Technical Specifications

    Technical Specifications Notes: Heat Injector Burners Approval Input Size Consumption Magnum 3 0359 12.96 Butane: 943g/hr 1.02mm Gas BBQ 359BR665 Propane: 926g/hr Side 0359 2.44 Butane: 178g/hr 0.76mm Burner 359BR665 Propane: 174g/hr Category: I 3+ (28-30/37) Gas / Pressure: G30 Butane at 28-30mbar and G31 Propane at 37mbar Countries of Use: BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SK, SI Category: I...

  • Page 22: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose is connected on Reconnect wire...
  • Page 23 Other parts are warranted for a period of one (1) year from the date of purchase.  OUTBACK® will, within above periods, supply replacements for defective parts free of charge provided that: The product has not been used for trade, professional or hire purposes.
