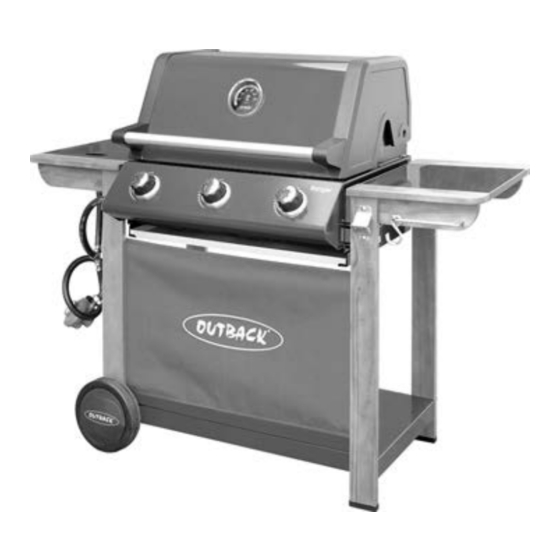

Assembly and Operating Instructions for Outback®
Ranger 3 Gas BBQ and Ranger 3S Gas BBQ
RC4341C
Photographs are not to scale.
Specifications subject to change
without prior notice.
WARNING
FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may be
dangerous and will invalidate your warranty. This does not affect your statutory rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check that the
hose connections are tight and leak test each time you reconnect the gas bottle.
For Flare-up control please refer to the 'OPERATION' section of this manual.
RC4343C
FOR YOUR SAFETY
1.
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2.
A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
0359
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Outback RC4343C
Summary of Contents for Outback RC4343C
- Page 1 Assembly and Operating Instructions for Outback® Ranger 3 Gas BBQ and Ranger 3S Gas BBQ RC4341C RC4343C Photographs are not to scale. Specifications subject to change 0359 without prior notice. For outdoor use only. Not for commercial use. ...
-
Page 2: Parts List
Parts List Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‘Hardware Reference Diagram’. Ranger 3 Ranger 3S CODE PART Gas BBQ Gas BBQ Hood (Pre-Assembled to Body) ... -
Page 3: Parts Diagrams
Parts Diagrams Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see hardware pack page. - Page 4 Hardware Reference Diagram Specifications subject to change without prior notice. D1,D2,D3 D9,D10 D4,D5...
- Page 5 Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver, adjustable spanner or metric spanner set. The assembly of this barbecue at least requires 2 people. Remove any internal components or packaging from the barbecue body. ...
- Page 6 Insert M6x95 Bolts (D4x8pcs) through the trolley legs, the Washers (D5x8pcs), and keep the tip of the bolts inside the washers. While holding the barbecue body into position (2 people required), screw the bolts into the barbecue body as shown. CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or becomes damaged when it is set on the ground.
- Page 7 Remove the retaining bolts from Drip Tray Handle (B9), and then attach it onto the Drip Tray (B10) using the retaining bolts. Insert the Drip Tray by sliding it underneath the barbecue body. Attach the Beer Bottle Opener (C11) to the Right front leg using 1/4-20UNCx12 Bolts (D7x2pcs).
- Page 8 Attach the Tool Hook (C10) to the Tool Hook Support (C9) as shown, Make sure the direction of tool hook is facing outward. Attach the Tool hook assembly to the Side Shelf (C8) using M6x10 Bolts (D8x2pcs). Attach the Side shelf and Tool hook assembly to the Right Front / Rear Legs using 1/4-20UCNx25 Bolts (D6x8pcs) as shown.
- Page 9 Attach the Side Burner Shelf (C1) to the Left Front / Rear Legs using 1/4-20UNCx25 Bolts (D6x8pcs) as shown. Unscrew the pre-assembled nut of the Ignition Button (C3). Insert the Ignition Button (C3) into the hole at the Side Burner Base(C2) and secure with the pre-assembled nut. Carefully lay the Side Burner Base(C2) into the Side Burner Shelf (C1) and make sure it is horizontal, Then fixing the Side Burner Base using M6x15 Bolts (D9x4pcs) and M6 Nuts (D10x4pcs).
- Page 10 Attach the side burner valve onto the Side Burner Base (C2) using M4x10 Bolts (D12x2pcs) as shown. Press the Side Burner Knob (C7) onto side burner valve stem.
- Page 11 ① ② Step Step ③ ④ Step Step Unscrew the pre-assembled Butterfly Nut (D13) of the Side Burner (C4). Insert the Wire of Side Burner Electrode (C5) into the hole at the Side Burner Base(C2) . Attach the Side Burner (C4) and Side Burner Electrode (C5) onto side burner Base using Butterfly Nut (D13) as shown.
- Page 12 Using M4 Step Screws (D11x2pcs) lock to prevent Side burner lid from opening the burned wood trolley. Place Side Burner Grid (C6) into the Side Burner Base (C2). Attach the Front Screen (C16) to the Front Left / Right Legs as shown.
- Page 13 Lay the Flame Tamers (B4) carefully into the body ensuring it lies level within the body. Lay the Cooking Grills (B1) and Round Grill (B2) into place. Attach the Warming Rack (A4) to the Barbecue Body (B5) as shown.
- Page 14 Leak Test Diagram 1. Maximum diameter or breadth is 320mm. 2. Maximum height (regulator included) is 700mm. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE.
- Page 15 Important Information to detect any gas leaking from joints and connections of the barbecue after assembly. Leak test annually, and whenever the gas Please read these instructions carefully bottle is removed or replaced. before assembly and use of your barbecue. ...
-
Page 16: Installation
Installation Preparation Before Cooking To prevent foods from sticking to the cooking surface, please use a long handled brush to Selecting a Location apply a light coat of cooking or vegetable oil This barbecue is for outdoor use only and before each barbecuing session. - Page 17 Insert lit match through the right match- done with the burners on low. lighting hole on the right side of the For best results, place the food you wish to bake or roast on a metal baking tray and set it barbecue body and place near rightmost on one side of the cooking grill.
-
Page 18: Care And Maintenance
to protect yourself from the flames. cleaning. Do not leave the barbecue exposed to outside weather conditions or stored in damp, If a fat fire occurs, please see the instructions moist areas. given below. Never handle hot parts with unprotected hands. - Page 19 that the neck of the burner fits over the valve be regularly inspected and any weathered or outlet. damaged surfaces should be sanded and recoated promptly with a garden furniture It is quite normal for surface rust to be present varnish or paint, following the manufacturer’s on the burners.
-
Page 20: Technical Specifications
Technical Specifications Notes: Heat Injector Burners Approval Input Size Consumption Ranger 3 0359 12.96 Butane: 943g/hr 1.02mm Gas BBQ 359BR665 Propane: 926g/hr Ranger 3S 0359 12.96 Butane: 943g/hr 1.02mm Gas BBQ 359BR665 Propane: 926g/hr Side 0359 2.44 Butane: 178g/hr 0.76mm Burner 359BR665 Propane: 174g/hr... -
Page 21: Troubleshooting
Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose is connected on Reconnect wire... - Page 22 Other parts are warranted for a period of one (1) year from the date of purchase. OUTBACK® will, within above periods, supply replacements for defective parts free of charge provided that: The product has not been used for trade, professional or hire purposes.
