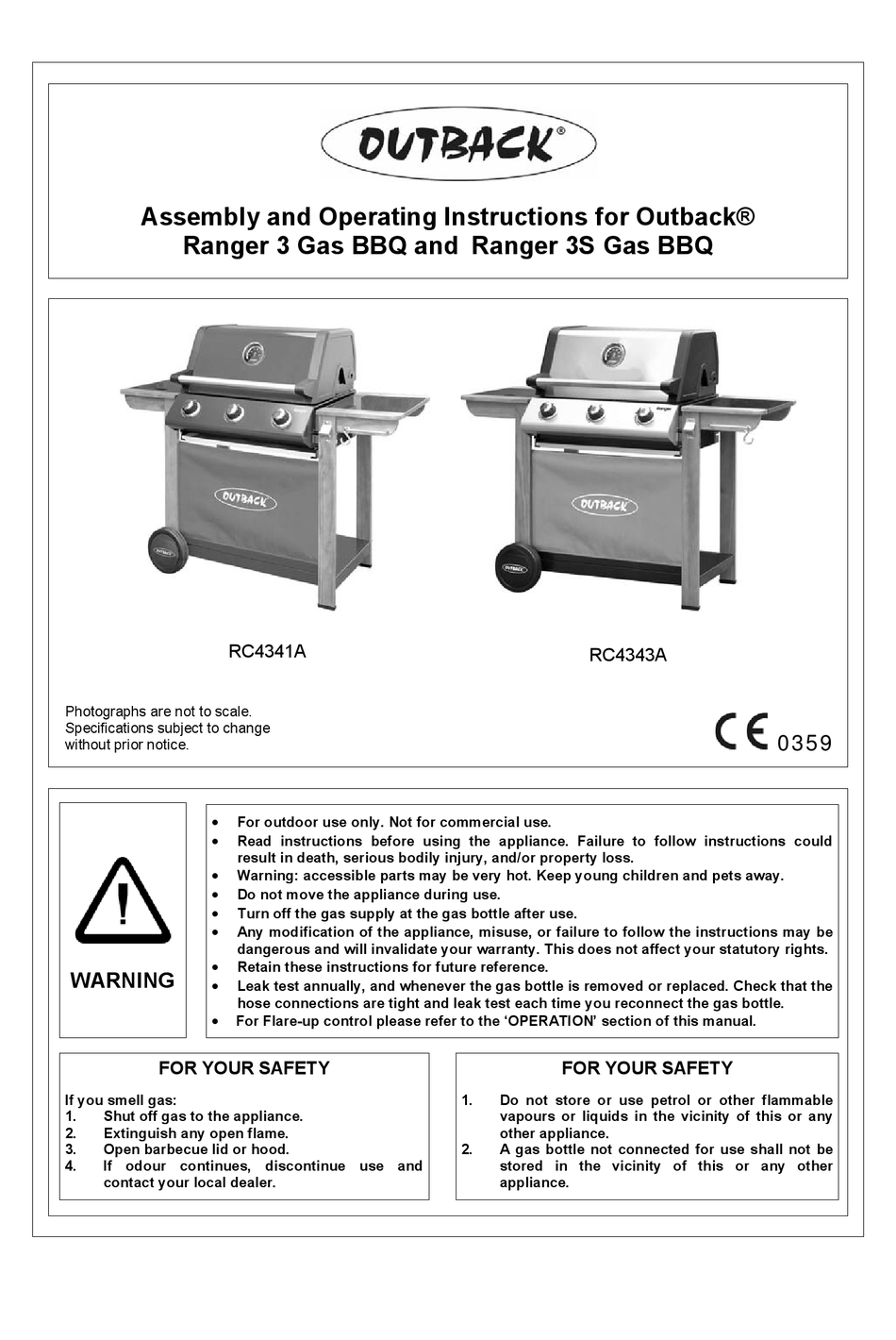

Assembly and Operating Instructions for Outback®
Ranger 3 Gas BBQ and Ranger 3S Gas BBQ
RC4341A
Photographs are not to scale.
Specifications subject to change
without prior notice.







WARNING


FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may be
dangerous and will invalidate your warranty. This does not affect your statutory rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check that the
hose connections are tight and leak test each time you reconnect the gas bottle.
For Flare-up control please refer to the 'OPERATION' section of this manual.
RC4343A
FOR YOUR SAFETY
1.
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2.
A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
0359

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ranger 3 and is the answer not in the manual?

Questions and answers

Related Manuals for Outback Ranger 3

Summary of Contents for Outback Ranger 3

  • Page 1 Assembly and Operating Instructions for Outback® Ranger 3 Gas BBQ and Ranger 3S Gas BBQ RC4341A RC4343A Photographs are not to scale. Specifications subject to change 0359 without prior notice.  For outdoor use only. Not for commercial use. ...

  • Page 2: Parts List

    Parts List Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‘Hardware Reference Diagram’. Ranger 3 Ranger 3S CODE PART Gas BBQ Gas BBQ Hood (Pre-Assembled to Body) ...

  • Page 3: Parts Diagrams

    Parts Diagrams Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see hardware pack page.
  • Page 4 Hardware Reference Diagram Specifications subject to change without prior notice. D1,D2,D3 D9,D10 D4,D5...
  • Page 5 Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,  adjustable spanner or metric spanner set. The assembly of this barbecue at least requires 2 people.  Remove any internal components or packaging from the barbecue body. ...
  • Page 6 Insert M6x95 Bolts (D4x8pcs) through the trolley legs, the Spacers (D5x8pcs), and keep the tip of the bolts inside the spacers. While holding the barbecue body into position (2 people required), screw the bolts into the barbecue body as shown. CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or becomes damaged when it is set on the ground.
  • Page 7 Remove the retaining bolts from Drip Tray Handle (B7), then attach it onto the Drip Tray (B8) using the retaining bolts. Insert the drip tray by sliding it underneath the barbecue body. Attach the Bottle Opener (C11) to the right front leg using 1/4-20UNCx12 Bolts (D7x2pcs).
  • Page 8 Insert the Hook Rail (C9) through the Tool Hooks (C10) as shown, then fix the assembly onto the Side Shelf (C8) using M6x10 Bolts (D8x2pcs). Make sure the hooks are facing outwards. Attach the side shelf assembly to the right front / rear Legs using 1/4-20UCNx25 Bolts (D6x8pcs) as shown.
  • Page 9 Attach the Side Burner Shelf (C1) to the left front / rear Legs using 1/4-20UNCx25 Bolts (D6x8pcs) as shown. Pre-assembled Nut Unscrew the pre-assembled nut of the Ignition Button (C3). Insert the ignition button through the Side Burner Base (C2) and secure with the pre-assembled nut. Carefully lay the side burner base into the side burner shelf, then fixing it by using M6x15 Bolts (D9x4pcs) and M6 Nuts (D10x4pcs) as shown.
  • Page 10 Attach the side burner valve onto the side burner base using M4x10 Bolts (D12x2pcs) as shown. Press the Side Burner Knob (C7) onto side burner valve stem.
  • Page 11 ① ② Step Step ④ ③ Step Step Unscrew the Wing Nut (D13) from the Side Burner (C4). Insert the wire of Side Burner Electrode (C5) into the hole at the side burner base. Feed the venturi tube of the side burner through the hole in bottom of side burner base as shown, then fix it and the side burner electrode onto side burner base using the wing nut.
  • Page 12 Using M4 Step Bolts (D11x2pcs) to limit the side burner lid during opening, to prevent it burning the wood part of side burner shelf. Place the Side Burner Grid (C6) onto the side burner shelf. NOTE: Only use cookware with a base diameter of between 150mm and 220mm on the side burner.
  • Page 13 Lay the Flame Tamers (B2) carefully into the body ensuring it lies level within the body. Lay the Cooking Grills (B1) into place. Attach the Warming Rack (A4) to the barbecue body as shown.

  • Page 14: Leak Testing

    Leak Test Diagram 1. Maximum diameter or breadth is 320mm. 2. Maximum height (regulator included) is 700mm. ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE.

  • Page 15: Gas, Regulator And Hose

    Important Information leak test. This is the only safe and sure way to detect any gas leaking from joints and connections of the barbecue after assembly. Please read these instructions carefully  Leak test annually, and whenever the gas before assembly and use of your barbecue. bottle is removed or replaced.

  • Page 16: Installation

    local gas dealer for the most suitable regulators not covered by warranty. and gas bottles. Preparation Before Cooking To prevent foods from sticking to the cooking Installation surface, please use a long handled brush to apply a light coat of cooking or vegetable oil Selecting a Location before each barbecuing session.
  • Page 17 Open the gas control valve on the gas bottle the hood down. However, this should only be or regulator. done with the burners on low.  Insert lit match through the right match- lighting hole on the right side of the For best results, place the food you wish to bake or roast on a metal baking tray and set it barbecue body and place near rightmost...

  • Page 18: Care And Maintenance

    your hands when handling anything near the storage. Ensure barbecue components sufficiently cool before cooking surface of the barbecue and take care cleaning. Do not leave the barbecue exposed to to protect yourself from the flames. outside weather conditions or stored in damp, moist areas.
  • Page 19 the primary air inlet of the burners. Use a pipe The wood used in the manufacture of your barbecue will naturally weather and change its cleaner to clear obstructions. appearance. It is quite natural for small cracks to appear on the surface of the wood. Do not When refitting the burners, be careful to check expose to sun or rain directly.

  • Page 20: Technical Specifications

    Technical Specifications Notes: Heat Injector Burners Approval Input Size Consumption Ranger 3 0359 12.96 Butane: 943g/hr Gas BBQ / 1.02mm 359BR665 Propane: 926hr RC4341A Ranger 3S 0359 12.96 Butane: 943g/hr Gas BBQ / 1.02mm 359BR665 Propane: 926hr RC4343A Side 0359 2.44...

  • Page 21: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose is connected on Reconnect wire...
  • Page 22 Other parts are warranted for a period of one (1) year from the date of purchase.  OUTBACK® will, within above periods, supply replacements for defective parts free of charge provided that: The product has not been used for trade, professional or hire purposes.
