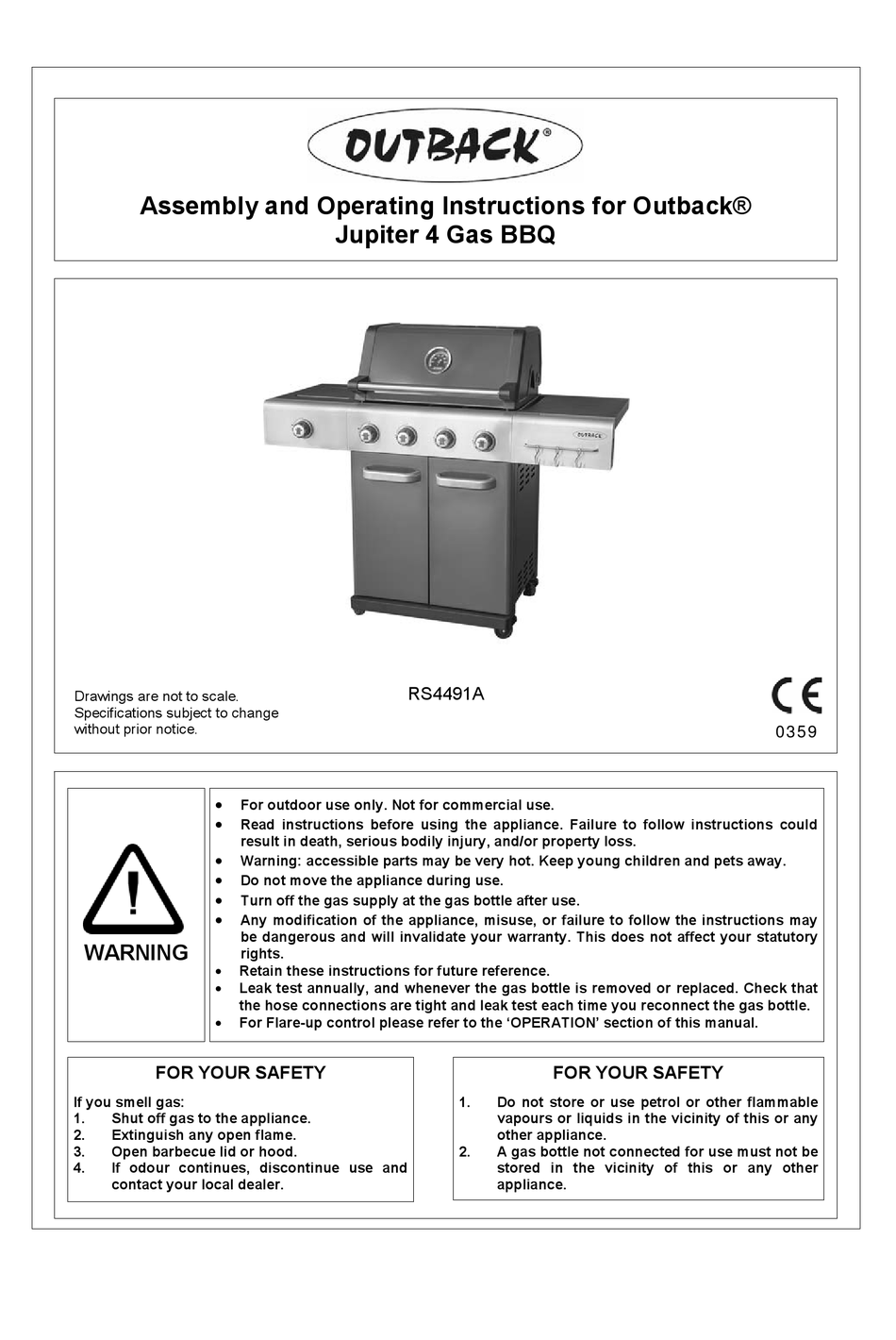

Assembly and Operating Instructions for Outback®
Drawings are not to scale.
Specifications subject to change
without prior notice.

For outdoor use only. Not for commercial use.

Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.

Warning: accessible parts may be very hot. Keep young children and pets away.

Do not move the appliance during use.

Turn off the gas supply at the gas bottle after use.

Any modification of the appliance, misuse, or failure to follow the instructions may
be dangerous and will invalidate your warranty. This does not affect your statutory
WARNING
rights.
 Retain these instructions for future reference.
 Leak test annually, and whenever the gas bottle is removed or replaced. Check that
the hose connections are tight and leak test each time you reconnect the gas bottle.
 For Flare-up control please refer to the 'OPERATION' section of this manual.
FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.
Jupiter 4 Gas BBQ
RS4491A
1.
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2.
A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.
FOR YOUR SAFETY
0359

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS4491A and is the answer not in the manual?

Questions and answers

Related Manuals for Outback RS4491A

Summary of Contents for Outback RS4491A

  • Page 1 Assembly and Operating Instructions for Outback® Jupiter 4 Gas BBQ RS4491A Drawings are not to scale. Specifications subject to change 0359 without prior notice.  For outdoor use only. Not for commercial use.  Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.

  • Page 2: Parts List

    Parts List Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. CODE PART Jupiter 4 Gas BBQ Hood (Pre-Assembled to Body)  Hood Handle ...

  • Page 3: Parts Diagram

    Parts Diagram Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
  • Page 4 Hardware Reference Diagram Specifications subject to change without prior notice.
  • Page 5 Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,  adjustable spanner or metric spanner set. Remove any internal component or packaging from the barbecue body.  Whilst every care is taken in the manufacture of this product, care must be taken during assembly in ...
  • Page 6 Attach the Rear Panels (C16) onto the cabinet assembly using ST4.0x10 Screws (D2x11pcs) as shown. Bottom Attach the Storage Unit (C19) onto the bottom panel using M6x15 Bolts (D3x4pcs) as shown.
  • Page 7 Attach the Upper Support (C12) to the left/right cabinet panel using M6x15 Bolts (D3x4pcs). Carefully turn the cabinet upside-down. Attach the Casters (C20) and Lockable Casters (C21) onto the left/right cabinet panels as shown. Ensure the lockable casters are installed on the rear side.
  • Page 8 Remove the retaining bolts from one Door Handle (C13), then attach the door handle onto the Left Door (C14) using the retaining bolts as shown. Repeat above process for the Right Door (C15). Fit the doors to the cabinet by depressing the spring pins and placing into the cabinet.
  • Page 9 Carefully place the Barbecue Body (B1) onto the cabinet assembly and fix it by using M6x15 Bolts (D3x4pcs) as shown. Attach Side Shelf Panel (C4) onto Side Shelf (C3) using M6x15 Bolts (D3x2pcs) and M6 Nut (D4x2pcs) as shown.
  • Page 10 step1 step2 step3 step4 Attach the side shelf assembly onto the barbecue body using ST4.0x10 Screw (D2x2pcs) and M6x15 Bolts (D3x4pcs) as shown. Attach Side Burner Shelf Panel (C2) onto Side Burner Shelf (C1) using M6x15 Bolts (D3x2pcs) and M6 Nut (D4x2pcs) as shown.
  • Page 11 step1 step2 step4 step3 Attach the side burner shelf assembly onto the barbecue body using ST4.0x10 Screw (D2x2pcs) and M6x15 Bolts (D3x4pcs) as shown. Side burner Valve Attach the side burner valve and Knob Bezel (C7) onto side burner shelf using M4x10 Bolts (D5x2pcs) as shown.
  • Page 12 Feed the venturi tube of the Side Burner (C9) through the hole in bottom of the side burner shelf, and fix it by using a M4x10 Bolt (D5) as shown. Make sure that the end of venturi tube is set over the gas outlet of side burner valve. Electrode wire Connect the electrode wire to the ignitor.
  • Page 13 Lay the Flame Tamers (B6) carefully into the body ensuring it lies level within the body. Lay the Cooking Grills (B8) and Round Grill (B7) into place. Place the Side Burner Grid (C6) onto the side burner shelf. NOTE: Only use cookware with a base diameter of between 150mm and 220mm on the side burner.
  • Page 14 Insert the Drip Tray (B9) by sliding it underneath the barbecue body. Insert the Hook Rail (C22) through the Tool Hooks (C5) as shown, then fix the assembly onto side shelf panel using M5x10 Bolts (D6x2pcs).

  • Page 15: Leak Testing

    1. Maximum diameter or breadth is 320mm. 2. Maximum height (regulator included) is 700mm. ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE.

  • Page 16: Gas, Regulator And Hose

    leak test. This is the only safe and sure way Important Information to detect any gas leaking from joints and connections of the barbecue after assembly. Please read these instructions carefully before assembly and use of your barbecue.  Leak test annually, and whenever the gas bottle is removed or replaced.

  • Page 17: Installation

    Installation Preparation Before Cooking To prevent foods from sticking to the cooking surface, please use a long handled brush to Selecting a Location apply a light coat of cooking or vegetable oil This barbecue is for outdoor use only and before each barbecuing session.
  • Page 18 the hood down. However, this should only be lighting hole on the right side of the barbecue body and place near rightmost done with the burners on low. burner porthole.  Push and turn the rightmost control knob For best results, place the food you wish to bake or roast on a metal baking tray and set it anti-clockwise to the high position, taking on one side of the cooking grill.

  • Page 19: Care And Maintenance

    cooking surface of the barbecue and take care and especially after extended periods of to protect yourself from the flames. storage. Ensure barbecue components sufficiently cool before If a fat fire occurs, please see the instructions cleaning. Do not leave the barbecue exposed to given below.
  • Page 20 formed, which can lead to spotting such as When refitting the burners, be careful to check surface discolouration and rust. that the neck of the burner fits over the valve outlet. Stainless steel surfaces can be cleaned using a stainless steel cleaner or methylated spirits and It is quite normal for surface rust to be present spotting should...

  • Page 21: Technical Specifications

    Technical Specifications NOTES: Heat Injector Burners Approval Input Size Consumption Jupiter 4 0359 12.96 Butane: 943g/hr 0.89mm Gas BBQ 359BR665 Propane: 926g/hr Side 0359 2.94 Butane: 214g/hr 0.84mm Burner 359BR665 Propane: 210g/hr Category: I 3+ (28-30/37) Gas / Pressure: G30 Butane at 28-30mbar and G31 Propane at 37mbar Countries of Use: BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SK, SI Category: I...

  • Page 22: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose is connected on Reconnect wire...
  • Page 23 Other parts are warranted for a period of one (1) year from the date of purchase.  OUTBACK® will, within above periods, supply replacements for defective parts free of charge provided that: The product has not been used for trade, professional or hire purposes.
