Assembly and Operating Instructions for
Photographs are not to scale.
Specifications subject to change
without prior notice.
•
For outdoor use only. Not for commercial use.
•
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
•
Warning: accessible parts may be very hot. Keep young children and pets away.
•
Do not move the appliance during use.
•
Turn off the gas supply at the gas bottle after use.
•
Any modification of the appliance, misuse, or failure to follow the instructions may
be dangerous and will invalidate your warranty. This does not affect your statutory
WARNING
rights.
•
Retain these instructions for future reference.
•
Leak test annually, and whenever the gas bottle is removed or replaced. Check that
the hose connections are tight and leak test each time you reconnect the gas bottle.
•
For Flare-up control please refer to the 'OPERATION' section of this manual.
FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.

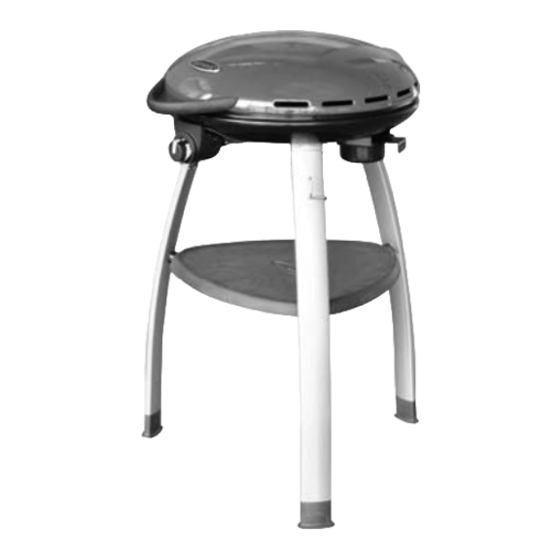

Outback® Trekker Gas BBQ
RG47B
1.
2.
FOR YOUR SAFETY
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.
0359

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Trekker RG47B and is the answer not in the manual?

Questions and answers

Related Manuals for Outback Trekker RG47B

Summary of Contents for Outback Trekker RG47B

  • Page 1 Assembly and Operating Instructions for Outback® Trekker Gas BBQ Photographs are not to scale. RG47B Specifications subject to change 0359 without prior notice. • For outdoor use only. Not for commercial use. • Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.

  • Page 2: Parts List

    Parts List Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. Outback® CODE PART Trekker Gas BBQ Hood HOOD Hood Handle Hood Hinge Barbecue Body...

  • Page 3: Parts Diagram

    Parts Diagram Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
  • Page 4 Hardware Reference Diagram Specifications subject to change without prior notice.
  • Page 5 Assembly IMPORTANT! • Remove any internal components or packaging from the barbecue body. • Whilst every care is taken in the manufacture of this product, care must be taken during assembly in case sharp edges are present. • Please read the Important Information section carefully before assembly and use of your barbecue.
  • Page 6 Insert the Grease Cup (B10) by sliding it underneath the Barbecue Body (B1). Attach the hood assembly onto the barbecue body by aligning the Hood Hinge (A3) with the Body Hinge (B11), and secure with a Hinge Pin (D2) and R Shape Clip (D3).
  • Page 7 Multiple Use Option One Place the Cooking grill (B7) and Flame Tamer (B6) into the barbecue body by aligning the three locating grooves with the three supporting blocks, ensuring it lies level within the body. NOTE: Please align the “Arrow” mark on the griddle or flame tamer with the supporting block on the right for easy assembly.
  • Page 8 Grill Lifting Handle Usage Reference To remove and replace Cooking Griddle To remove and replace cooking vessel support To remove and replace cooking grill To remove and replace flame tamer...

  • Page 9: Leak Testing

    Leak Test Diagram 1. Maximum diameter or breadth is 315mm. 2. Maximum height (regulator included) is 580mm. ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE.

  • Page 10: Gas, Regulator And Hose

    Important Information Before you use your barbecue, perform a leak test. This is the only safe and sure way Please read these instructions carefully to detect any gas leaking from joints and connections of the barbecue after assembly. before assembly and use of your barbecue. Leak test annually, and whenever the gas Retain these...

  • Page 11: Installation

    Preparation Before Cooking Installation To prevent foods from sticking to the cooking surface, please use a long handled brush to Selecting a Location apply a light coat of cooking or vegetable oil This barbecue is for outdoor use only and before each barbecuing session.
  • Page 12 should be open during preheating. to prevent food being burned. To control flare- • After completion of preheating, keep the ups, it is ABSOLUTELY ESSENTIAL to trim burner at the low position for best cooking away excess fat from meat and poultry before results.

  • Page 13: Care And Maintenance

    Remove any food residue from the flame tamer outside for any length of time, especially during surface with a plastic or wooden scraper or the winter months. Heavy-duty OUTBACK® brass wire brush. Do not use a steel scraper or barbecue covers and other accessories are wire brush.

  • Page 14: Technical Specifications

    Do not use scouring pads or Heat Injector Burners Gas /Pressure Approval Input Size powders as they can permanently damage the finish. Outback® 0359 Butane: 28-30mbar Trekker 0.94mm Propane: 37mbar 359BR665 Fixings Gas BBQ All screws and bolts, etc. should be checked Gas Consumption: 269g/hr and tightened on a regular basis.

  • Page 15: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode or ignition button wire is loose Reconnect wire...
  • Page 16 OUTBACK® WARRANTY OUTBACK® barbecues are warranted for a period of one (1) year from the date of purchase to the original purchaser against defects in materials and workmanship, OUTBACK® will supply replacements for defective parts free of charge provided that: ♦...
