Outback RC4341C Assembly And Operating Instructions Manual

Ranger 3 gas/charcoal hybrid
Hide thumbs Also See for RC4341C:
Table of Contents

Advertisement

Quick Links

Download this manual
Photographs are not to scale.
Specifications subject to change
without prior notice.
WARNING
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and contact
your local dealer.

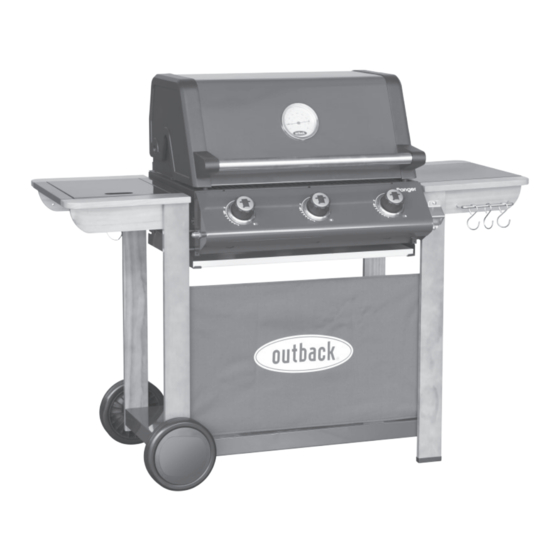

Assembly and Operating Instructions for
®
Outback
Ranger 3 Gas/Charcoal Hybrid
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may be
dangerous and will invalidate your warranty. This does not affect your statutory rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check that the
hose connections are tight and leak test each time you reconnect the gas bottle.
For Flare-up control please refer to the 'OPERATION' section of this manual.
RC4341C
FOR YOUR SAFETY
1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
0359
2575

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC4341C and is the answer not in the manual?

Questions and answers

Related Manuals for Outback RC4341C

Summary of Contents for Outback RC4341C

  • Page 1 Assembly and Operating Instructions for ® Outback Ranger 3 Gas/Charcoal Hybrid RC4341C Photographs are not to scale. Specifications subject to change 0359 2575 without prior notice.  For outdoor use only. Not for commercial use.  Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.

  • Page 2: Parts List

    Parts List Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‗Hardware Reference Diagram‘. CODE PART Ranger 3 Gas/Charcoal Hybrid Hood (Pre-Assembled to Body)  Hood Handle  HOOD Heat Indicator ...

  • Page 3: Parts Diagrams

    Parts Diagrams Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see hardware pack page.
  • Page 4 Hardware Reference Diagram Specifications subject to change without prior notice. D1,D2,D3 M4 STEP BOLT 2PCS D9,D10 M5X15 BOLT 4PCS M5 NUT 4PCS M5 WASHER 4PCS 1/4-20UNCX12 BOLT 8PCS D4,D5 M6X95 BOLT 8PCS SPACER 8PCS...
  • Page 5 Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,  adjustable spanner or metric spanner set. The assembly of this barbecue at least requires 2 people.  Remove any internal components or packaging from the barbecue body. ...
  • Page 6 Insert M6x95 Bolts (D4x8pcs) through the trolley legs, the Spacers (D5x8pcs), and keep the tip of the bolts inside the spacers. While holding the barbecue body into position (2 people required), screw the bolts into the barbecue body as shown. CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or becomes damaged when it is set on the ground.
  • Page 7 Remove the retaining bolts from Drip Tray Handle (B9), and then attach it onto the Drip Tray (B10) using the retaining bolts. Insert the drip tray by sliding it underneath the barbecue body. Attach the Bottle Opener (C11) to the right front leg using 1/4-20UNCx12 Bolts (D7x2pcs).
  • Page 8 Attach the Tool Hooks (C10) to the Hook Rail (C9) as shown; make sure the direction of tool hook is facing outwards. Attach the tool hook assembly to the Side Shelf (C8) using M6x10 Bolts (D8x2pcs). Attach the side shelf assembly to the Right Front / Rear Legs using 1/4-20UCNx25 Bolts (D6x8pcs) as shown.
  • Page 9 Attach the Side Burner Shelf (C1) to the Left Front / Rear Legs using 1/4-20UNCx25 Bolts (D6x8pcs) as shown. Retaining Nut Unscrew the retaining nut from Side Burner Ignitor (C3). Insert the ignitor through the Side Burner Base (C2) and secure with the retaining nut. Carefully lay the side burner base into the side burner shelf horizontally, and fix it using M6x15 Bolts (D9x4pcs) and M6 Nuts (D10x4pcs).
  • Page 10 Attach the side burner valve onto the side burner base using M4x10 Bolts (D12x2pcs) as shown. Press the Side Burner Knob (C7) onto side burner valve stem.
  • Page 11 ① ② Step Step ③ ④ Step Step Unscrew the pre-assembled Wing Nut (D13) from the Side Burner (C4). Insert the wire of the Side Burner Electrode (C5) through the side burner base; make sure it is installed in correct position as shown.
  • Page 12 Screw the M4 Step Bolts (D11x2pcs) onto side burner base as shown, to prevent the wooden parts of side burner shelf from getting burned by hot side burner lid during use. Place the Side Burner Grid (C6) onto the side burner base. NOTE: Only use cookware with a base diameter or between 150mm and 220mm on the side burner.
  • Page 13 Lay the Flame Tamers (B4) carefully into the body ensuring it lies level within the body. Lay the Cooking Grills (B1) and Round Grill (B2) into place. Attach the Warming Rack (A4) to the Barbecue Body (B5) as shown.

  • Page 14: Leak Testing

    Leak Test Diagram 1. Maximum diameter or breadth is 320mm. 2. Maximum height (regulator included) is 700mm. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE.

  • Page 15: Gas, Regulator And Hose

    Important Information connections of the barbecue after assembly.  Leak test annually, and whenever the gas Please read these instructions carefully bottle is removed or replaced. before assembly and use of your barbecue.  Do not store flammable materials near this barbecue.

  • Page 16: Installation

    WARRANTY. In the case of replacing your Preparation Before Cooking To prevent foods from sticking to the cooking original hose and regulator, please consult your surface, please use a long handled brush to local gas dealer for the most suitable regulators apply a light coat of cooking or vegetable oil and gas bottles.
  • Page 17 burner porthole. OFF position and turn all other burners to a  LOW to MEDIUM position. Push and turn the rightmost control knob anti-clockwise to the high position, taking Close the hood to cook the food ‗indirectly‘. care to protect yourself from the flames. Avoid lifting the hood unnecessarily as heat is ...

  • Page 18: Care And Maintenance

    necessary to turn off and cool the barbecue outside for any length of time, especially during every two hours to remove food debris from the the winter months. Heavy-duty barbecue covers drip tray and clean it out. The time between and other accessories are available from your cleaning may need to be reduced if very fatty local stockist.
  • Page 19 stainless steel cleaner or methylated spirits and Drip Tray any spotting should be taken care of immediately. After every use, empty and clean the drip tray Failure to remove spotting can lead to permanent (and foil liner, if applicable) of any fat or food discolouration.

  • Page 20: Technical Specifications

    Technical Specifications NOTES: Heat Injector Burners Input Size Consumption ® Outback Ranger 3 Gas/ Butane:943g/hr 12.96kW 1.02mm Charcoal Propane:926g/hr Hybrid Butane:178g/hr Side Burner 2.44kW 0.76mm Propane:174g/hr CE Approval Pin Number: 2575DM30422 UKCA Approval Pin Number: 0359BR665 Category: I 3+ (28-30/37)

  • Page 21: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose is connected on Reconnect wire...
  • Page 22 The product has not sustained damage through foreign objects, substances or accidents.  The care and maintenance instructions given in your Outback manual have been followed.  If the product includes one or a number of parts or accessories, only the defective accessory or part will be replaced i.e.
