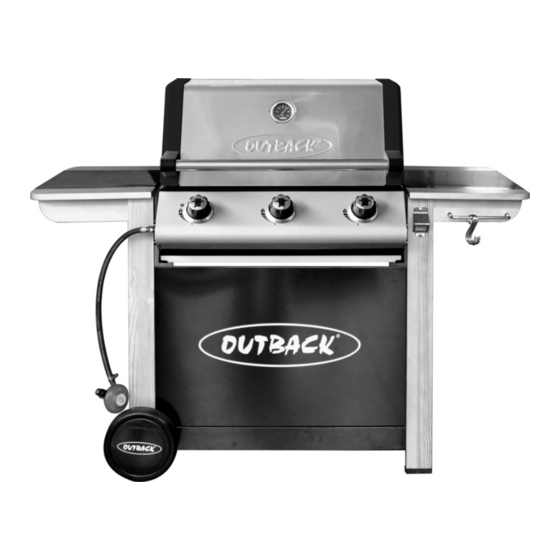

Assembly and Operating Instructions for Outback®
Ranger 3S Gas BBQ and Ranger 3 Gas BBQ
RC4340S
Photographs are not to scale.
Specifications subject to change
without prior notice.
•
For outdoor use only. Not for commercial use.
•
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
•
Warning: accessible parts may be very hot. Keep young children and pets away.
•
Do not move the appliance during use.
•
Turn off the gas supply at the gas bottle after use.
•
Any modification of the appliance, misuse, or failure to follow the instructions may be
dangerous and will invalidate your warranty. This does not affect your statutory rights.
•
Retain these instructions for future reference.
WARNING
•
Leak test annually, and whenever the gas bottle is removed or replaced. Check that the
hose connections are tight and leak test each time you reconnect the gas bottle.
•
For Flare-up control please refer to the 'OPERATION' section of this manual.
FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.
RC4341
FOR YOUR SAFETY
1.
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2.
A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
0359

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC4340S and is the answer not in the manual?

Questions and answers

Related Manuals for Outback RC4340S

Summary of Contents for Outback RC4340S

  • Page 1 Assembly and Operating Instructions for Outback® Ranger 3S Gas BBQ and Ranger 3 Gas BBQ RC4340S RC4341 Photographs are not to scale. Specifications subject to change 0359 without prior notice. • For outdoor use only. Not for commercial use. •...

  • Page 2: Parts List

    Parts List Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‘Hardware Reference Diagram’. Ranger 3S Ranger 3 CODE PART Gas BBQ Gas BBQ Hood (Pre-Assembled to Body) Hood Handle HOOD Heat Indicator Warming Rack...
  • Page 3 Parts Diagrams (Ranger 3S Gas BBQ) Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see hardware pack page.
  • Page 4 Parts Diagrams (Ranger 3 Gas BBQ) Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see hardware pack page.
  • Page 5 Hardware Reference Diagram (Ranger 3S Gas BBQ) Specifications subject to change without prior notice. D1,D2,D3 D4,D5...
  • Page 6 Hardware Reference Diagram (Ranger 3 Gas BBQ) Specifications subject to change without prior notice. D1,D2,D3 D9,D10 D4,D5...
  • Page 7 Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver, • adjustable spanner or metric spanner set. The assembly of this barbecue at least requires 2 people. • Remove any internal components or packaging from the barbecue body. •...
  • Page 8 Unscrew the Locknuts (D12x2pcs) from both ends of the Axle (C15). Slide the axle through the corresponding holes in the left legs. Slide the Wheels (C16) over each end of the axle. Secure the wheels into place with the locknots. Place the Hubcaps (C17) ont the outsides of the wheels.
  • Page 9 Insert M6x95 Bolts (D4x8pcs) through the trolley legs, the Washers (D5x8pcs), and keep the tip of the bolts inside the washers. While holding the barbecue body into position (2 people required), screw the bolts into the barbecue body as shown. CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or becomes damaged when it is set on the ground.
  • Page 10 Remove the retaining bolts from Drip Tray Handle (B8), and then attach it onto the Drip Tray (B9) using the retaining bolts. Insert the Drip Tray by sliding it underneath the barbecue body. Attach the Beer Bottle Opener (C11) to the Right front leg using 1/4-20UNCx12 Bolts (D7x2pcs). Attach the Tool Hook (C6) to the Tool Hook Support (C5) as shown, Make sure the direction of tool hook is facing outward.
  • Page 11 Attach the Side shelf and Tool hook assembly to the Right Front / Rear Legs using 1/4- 20UCNx25 Bolts (D6x8pcs), as shown. Remove the plastic wrap from the Lava Rock (B2) and then place a uniform layer into Lava Rock Basket (B3). Lay the lava rock carefully into the body ensuring it lies level within the body.
  • Page 12 Attach the Warming Rack (A4) to the Barbecue Body (B4) as shown. Attach the Side Shelf (C4) to the Left Front / Rear Legs using 1/4-20UNCx25 Bolts (D6x8pcs), as shown.
  • Page 13 Connect the Hose and Regulator Assembly (B12) to the barbecue. Ensure the mating faces of the connection are clean and not damaged. Do not use any sealing tape, paste, or liquid on the connection. The nut must be tightened with the use of a spanner.
  • Page 14 ① ② Step Step ④ ③ Step Step Carefully lay Side Burner Assembly (C2) into the Side burner shelf and make sure it is horizontal, Then fixing the Side burner assembly using M6x16 Bolts (D9x4pcs) and M6 Nuts (D10x4pcs). Using M4 Step Screws (D11x2pcs) lock to prevent Side burner lid from opening the burned wood trolley.

  • Page 15: Leak Testing

    Leak Test Diagram 1. Maximum diameter or breadth is 320mm. 2. Maximum height (regulator included) is 700mm. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE.

  • Page 16: Gas, Regulator And Hose

    Important Information to detect any gas leaking from joints and connections of the barbecue after assembly. Leak test annually, and whenever the gas Please read these instructions carefully bottle is removed or replaced. before assembly and use of your barbecue. Do not store flammable materials near this barbecue.

  • Page 17: Installation

    Installation Preparation Before Cooking To prevent foods from sticking to the cooking surface, please use a long handled brush to Selecting a Location apply a light coat of cooking or vegetable oil This barbecue is for outdoor use only and before each barbecuing session.
  • Page 18 • Insert lit match through the right match- For best results, place the food you wish to bake or roast on a metal baking tray and set it lighting hole on the right side of the on one side of the cooking grill. barbecue body and place near rightmost burner porthole.

  • Page 19: Care And Maintenance

    If a fat fire occurs, please see the instructions moist areas. given below. Never handle hot parts with unprotected hands. Fat Fires Never douse the barbecue with water when Empty and clean the drip tray of food debris its surfaces are hot. after each cooking session.
  • Page 20 It is quite normal for surface rust to be present expose to sun or rain directly. The wood should on the burners. If rust appears between uses or be regularly inspected and any weathered or in storage, clean with a soft brass wire brush. damaged surfaces should be sanded and recoated promptly with a garden furniture Lava Rock...

  • Page 21: Technical Specifications

    Technical Specifications Notes: Heat Injector Burners Gas /Pressure Approval Input Size 0359 12.96 Butane: 28-30mbar Ranger 3S 1.02mm 359BR665 Propane: 37mbar Gas BBQ 0359 12.96 Butane: 28-30mbar Ranger 3 1.02mm 359BR665 Propane: 37mbar Gas BBQ Side 0359 2.68 Butane: 28-30mbar 0.8mm Burner 359BR665...

  • Page 22: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose is connected on Reconnect wire...
  • Page 23 Other parts are warranted for a period of one (1) year from the date of purchase. ♦ OUTBACK® will, within above periods, supply replacements for defective parts free of charge provided that: The product has not been used for trade, professional or hire purposes.

This manual is also suitable for:

Rc4341

Table of Contents
