  • Page 1 OmniStream ™ Wallplate Networked AV Encoder Atlona Manuals AT-OMNI-111-WP Networked AV...
  • Page 2 Version Information Version Release Date Notes Jun 2023 - Removed “and RS-232 or IR control pass-through.” from third bullet point under Features section (page 7). AT-OMNI-111-WP...
  • Page 3 Sales, Marketing, and Customer Support Main Office International Headquarters Atlona Incorporated Atlona International AG 70 Daggett Drive Tödistrasse 18 San Jose, CA 95134 8002 Zürich United States Switzerland Office: +1.408.962.0515 Office: +41.43.508.4321 Sales and Customer Service Hours Monday - Friday: 6:00 a.m. - 4:30 p.m. (PST) Sales and Customer Service Hours Monday - Friday: 09:00 - 17:00 (UTC +1) https://atlona.com/...
  • Page 4 Safety and Certification 9. Do not defeat the safety purpose of a polarized CAUTION or grounding-type plug. A polarized plug has two RISK OF ELECTRIC SHOCK blades with one wider than the other. A grounding DO NOT OPEN type plug has two blades and a third grounding CAUTION: TO REDUCT THE RISK OF prong.

  • Page 5: Table Of Contents

    Table of Contents Introduction Features Package Contents Introduction to OmniStream OmniStream 101 IP Address Assignment Network Bandwidth and OmniStream Compression Streams Sessions Subscribing to a Stream Encoder Naming Schema Panel Description Installation Connection Instructions Faceplate Removal and Assembly Connection Diagram Getting Started Rebooting OmniStream LED Indicators...
  • Page 6 Table of Contents Adding Subframes Deleting a Subframe Deleting a Multiview Using Audio in Multiview AES67 Audio Encoder Grouping Encoder Configuration Decoder Configuration Scrambling Slate / Logo Insertion Adding Slates / Logos Deleting Slates Deleting Logos Text Insertion Configuring a Static IP Address 802.1X Authentication Configuration and Management Interfaces Web Server...

  • Page 7: Introduction

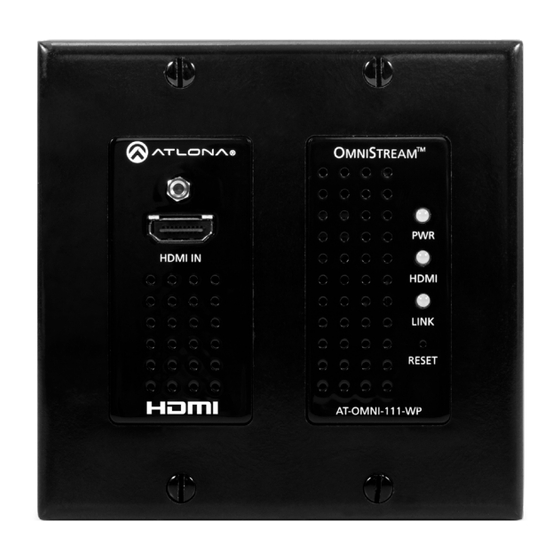

    Introduction The Atlona AT-OMNI-111-WP is a networked AV encoder for HDMI sources up to 4K/UHD and HDR (High Dynamic Range), plus embedded audio. It features a US two-gang, wallplate form factor, and includes interchangeable black and white wallplates and faceplates. OmniStream is designed for high performance, flexible distribution of AV over standard, off-the-shelf Gigabit Ethernet switches in commercial audiovisual applications.

  • Page 8: Introduction To Omnistream

    Introduction to OmniStream OmniStream 101 OmniStream products are similar in principle to matrix switch endpoints: A/V signals are sent from one point (transmitter) to another point (receiver) over category cable. However, OmniStream stands apart from matrix switchers, in that it is an IP-based solution, allowing this data to be sent over a standard IP network. In addition, these endpoints are referred to as encoders and decoders.

  • Page 9: Network Bandwidth And Omnistream Compression

    Introduction to OmniStream Network Bandwidth and OmniStream Compression When sending video and audio over a network, the available bandwidth needs to be managed. Gigabit Ethernet switches are very common and can take advantage of installed Category 5e cable. 10-Gigabit Ethernet switches are available, but are more expensive per port and require Category 6A cable or better.

  • Page 10: Subscribing To A Stream

    Introduction to OmniStream Subscribing to a Stream To receive information from an encoder, the decoder must subscribe to the multicast IP address and UDP port of the stream(s). Note that the decoder does not subscribe to the session, but to the stream(s) within the session. The process of subscribing is similar to changing the channel on a Set-Top Box.

  • Page 11: Encoder Naming Schema

    Introduction to OmniStream DEFINITIONS Stream – Describes the video, audio, or any data that is transmitted from an encoder over the network. Multicast IP Address – A class-D IP address assigned to a stream. UDP Port – User Datagram Protocol (UDP) port. Part of the network addressing scheme to send and receive data to the proper destination on a network.

  • Page 12: Panel Description

    Panel Description Front Side Rear TREAM HDMI IN HDMI LINK RESET RS-232 AT-OMNI-111-WP 1 HDMI IN 6 RESET Connect an HDMI cable from this port to a UHD/ Press and release this button to reboot the AT- HD source. OMNI-111-WP. Note that this operation does not reset the unit to factory-default settings.

  • Page 13: Installation

    Installation Connection Instructions IMPORTANT: The venting holes, surrounding the enclosure, along with the fan assembly on the back of the unit, provides cooling by expelling warm air from the enclosure. To prevent overheating, make sure these holes and the fan assembly are not blocked. 1.

  • Page 14: Faceplate Removal And Assembly

    Installation Faceplate Removal and Assembly Removal of the faceplate requires that the AT-OMNI-111-WP be disassembled from the electrical box or mud ring. A small Phillips-head screwdriver is required to remove the faceplate. 1. Unscrew the four Phillips-head screws from the sides of the faceplate, as shown: 1 1 1 T R E N I -...

  • Page 15: Connection Diagram

    Installation Connection Diagram Source 11 -W TR EA N I-1 A T- LI N LI N RE SE RE SE TR EA 11 -W N I-1 RS -2 A T- AT-OMNI-111-WP Display PoE Network Switch M NI AT-OMNI-121 AT-OMNI-111-WP...

  • Page 16: Getting Started

    Getting Started Rebooting OmniStream To reboot the OmniStream encoder, press and release the recessed button, on the far-right side of the unit, using a small, pointed object. Rebooting the encoder does not reset the encoder to factory-default settings. TREAM HDMI IN HDMI LINK RESET...

  • Page 17: Led Indicators

    Getting Started LED Indicators The following table provides a listing of front-panel LED indicators and their status: Description • If using a PoE switch, make sure that the port on the switch that is connected to the encoder, has PoE enabled. When the encoder is powered using PoE, the PWR indicator will be green.

  • Page 18: Accessing The Web Server

    Getting Started Accessing the Web Server In order to access the web server of the desired encoder/decoder, the IP address of the encoder must be known. This can be accomplished by using any of the following methods: 1) Running IP scanner software or 2) accessing the encoder using the domain name.

  • Page 19: Basic Configuration Tutorial

    Basic Configuration Tutorial This section provides a tutorial on configuring two AT-OMNI-111-WP single-channel encoders and one AT-OMNI-121 single-channel decoder. Make sure the encoder is connected to a source device and that the decoder is connected to a display. Both the encoder and decoder should be connected to the same local network. Refer to Connection Instructions (page 13) for more information.

  • Page 20: Setting The System Mode

    Basic Configuration Tutorial Setting the System Mode OmniStream offers three system modes. These modes will determine the codec and settings available in OmniStream. 1. Login to each encoder and click System Information in the menu bar. 2. Click the System mode drop-down list and select VCx. This mode will provide access to all of OmniStream 2.0 features.

  • Page 21: Configuring Inputs

    Basic Configuration Tutorial Configuring Inputs The Input page is used to verify that the encoder recognizes the source device. This page is also used to set the EDID, HDCP version, and provides detailed information about the source signal. The following procedure should be performed on both AT-OMNI-111-WP encoders.
  • Page 22 Basic Configuration Tutorial 6. The Video section provides information about the input signal: color depth, subsampling, color space, resolution, frame rate, and HDR (High Dynamic Range). If the HDR indicator is green, this will indicate that HDR content is being transmitted from the source device.

  • Page 23: Encoder Settings

    Basic Configuration Tutorial Encoder Settings The Encoding page is used to assign an input to an encoder. In addition, this page allows video settings, such as the maximum bit rate, bit depth, and chroma subsampling to be set. Video thumbnails of the source device can also be displayed on this page.

  • Page 24: Creating A Session

    Basic Configuration Tutorial Creating a Session Before the video and audio (if any) can be sent out over the network, a session must be created on the encoder. The session assigns each stream to a unique multicast IP address and UDP port assignment. Sessions are always created on encoders.
  • Page 25 Basic Configuration Tutorial Table 2.1 - Recommended multicast IP address for video, audio, and data streams. Stream Video Audio Data (Control) 226.0.0.1 226.0.10.1 226.0.20.1 First source 226.0.0.2 226.0.10.2 226.0.20.2 Second source 226.0.0.n 226.0.10.n 226.0.20.n nth source Table 2.2 - Recommended UDP ports for video, audio, and data streams. Stream Video Audio...

  • Page 26: Subscribing To An Encoder

    Basic Configuration Tutorial Subscribing to an Encoder The next step is to configure the decoder so that it is able to receive video, audio, and/or data (control) streams from the encoder. This process is referred to as “subscribing to the encoder”. Video Configuration 1.

  • Page 27: Audio Configuration

    Basic Configuration Tutorial Audio Configuration 1. Locate the Input 3 window group and verify that the Enable toggle switch is enabled. When enabled, the toggle switch will be orange. Perform the same procedure for the Input 4 window group. 2. Under the Input 3 window group, enter 226.0.10.1 in the Multicast address field. Under the Input 4 window group, enter 226.0.10.2 in this field.

  • Page 28: Configuring The Hdmi Output Stream

    Basic Configuration Tutorial Configuring the HDMI Output Stream 1. Click HDMI Output in the menu bar. 2. The Descrambling > Enable toggle switch is enabled by default. When enabled, this toggle will be orange. For this example, leave the setting enabled. 3.
  • Page 29 Basic Configuration Tutorial 6. Scroll down to the Audio > Input field and select the desired audio stream. Referring to Table 2.3 (shown below), the audio stream that is associated with encoder 1 is Input 3. Therefore, ip_input3 (226.0.10.1:1100) is selected.
  • Page 30 Basic Configuration Tutorial Figure 3.1 - Basic OmniStream setup with Decoder #1 subscribed to Encoder Encoder #2 Session 1 Destination IP Address (Video): 226.0.0.2 G am UDP Port (Video): 1000 Destination IP Address (Audio): 226.0.10.2 Gaming Console UDP Port (Audio): 1100 T R E 11 1-...

  • Page 31: Troubleshooting

    Basic Configuration Tutorial Troubleshooting If no video and/or audio is present on the display, check the following for both Encoder #1 Encoder unless otherwise noted. Encoder Checklist • Verfiy that all encoders and decoders are set to the same system mode. In this tutorial, both encoders and the decoder should be set to VCx.

  • Page 32: Decoder Checklist

    Basic Configuration Tutorial Decoder Checklist • Verfiy that all encoders and decoders are set to the same system mode. In this tutorial, both encoders and the decoder should be set to VCx. Refer to Setting the System Mode (page 20). •...

  • Page 33: Device Operation

    Device Operation EDID Management OmniStream encoders provide EDID management for each input. The encoder can be assigned one of several included EDID presets or can be assigned a custom EDID. Raw EDID data can be copied from displays or other sink devices, that are connected to OmniStream decoders.

  • Page 34: Adding A Custom Edid

    Device Operation Adding a Custom EDID Encoders can be loaded with a custom EDID. The raw EDID data must be in hexadecimal format. Commas or spaces are not permitted. 1. Login to the encoder and click the EDID menu. 2. Click the icon in the lower-right corner of the screen.

  • Page 35: Device Control

    Device Operation Device Control Downstream Control using RS-232 Control using RS-232 is converted and transmitted over IP by the encoder. Destination devices can either be the IP address of a display or a decoder. 1. Login to the encoder and click the Serial menu. 2.
  • Page 36 Device Operation 6. Click the Session menu. 7. Under the desired Session, locate the AUX section and click the Source drop-down list to select the desired serial port. 8. Click the Enable toggle switch to display the additional fields. 9. Enter the destination IP address and UDP port in the Destination IP address and Destination UDP port fields, respectively.
  • Page 37 Device Operation 11. Login to the decoder and click the IP Input menu. 12. Locate an Input that does not contain a defined Multicast address field. In this example, Input 5 will be used. Note that if a multicast address was used in Step 9, then that multicast address must be entered in the Multicast address field under Input 5.

  • Page 38: Control Using Tcp Proxy

    Device Operation 18. Under the Serial configuration window group, click the Port drop-down list and select the desired port. 19. Click the Mode drop-down list and select output. 20. Click SAVE. Control using TCP Proxy TCP/IP traffic received by an encoder or decoder, on the defined IP:Port socket, are translated to RS-232, allowing both control of source or display.
  • Page 39 Device Operation 4. Under the Serial Configuration window group, click the Port drop-down list and select the desired serial port. 5. Click the Mode drop-down list and select tcpproxy. 6. Click the TCPProxy > Interface drop-down list and select the desired Ethernet interface. 7.

  • Page 40: Downstream Control Using Triggering

    Device Operation Downstream Control using Triggering TCP/IP traffic received by an encoder or decoder, on the defined IP:Port socket, are translated to RS-232, allowing both control of source or display. Control is achieved using a control system, where all control commands are stored. Option 1: Defining Commands on the Decoder 1.
  • Page 41 Device Operation 8. For each of the available commands, click the Mode drop-down list and select raw. The available commands are: Display On, Display Off, Volume Up, and Volume Down. 9. Enter the command data in either ASCII or hexadecimal format using the ASCII or HEX fields. 10.
  • Page 42 Device Operation Option 2: Defining Commands on the Encoder 1. Login to the encoder and click the Serial menu. 2. For each of the available commands, click the Interpret on drop-down list and select decoder. The available commands are: Display On, Display Off, Volume Up, and Volume Down. NOTE: Setting the Interpret on drop-down list to encoder implies that commands are defined/ stored on the encoder.
  • Page 43 Device Operation 5. Click the Session menu. 6. Under the desired Session, locate the AUX section, click the Source drop-down list, and select Commands. 7. Click the Enable toggle switch to display the additional fields. 8. Enter the destination IP address and UDP port, of the decoder, in the Destination IP address and Destination UDP port fields, respectively.
  • Page 44 Device Operation 14. Click the Serial menu. 15. Under Serial port configuration, set the Mode drop-down list to serial. 16. Click the SAVE button. 17. Under Serial configuration, select the desired port. 18. Click the Mode drop-down list and select output. 19.

  • Page 45: Upstream Control Using

    Device Operation Upstream Control using RS-232 The serial interface provides RS-232 control of both downstream and upstream devices. Source control is provided by enabling bidirectional communication. 1. Login to the decoder and click the Serial menu. 2. Under the Serial Port Configuration window group, click the Mode drop-down list and select Serial. 3.
  • Page 46 Device Operation 8. Enter the destination IP address (the IP address of the encoder) and UDP port in the Bidirectional > Destination IP address and Bidirectional > Destination UDP port field, respectively. 9. Click the Bidirectional > Enabled toggle switch to the enabled position.
  • Page 47 Device Operation 19. Enter the destination IP address and UDP port in the Destination IP address and Destination UDP port fields, respectively. 20. Click the SAVE button. AT-OMNI-111-WP...

  • Page 48: Multiview Nomenclature

    Device Operation Multiview Nomenclature General Overview A multiview is comprised of a canvas (display area) containing at least two, but no more than four subframes, where each subframe has the following parameters: NOTE: Multiview cannot be used in conjunction with fast switching and/or with video walls. DEFINITIONS: Subframe - The stream multicast IP address for the video.

  • Page 49: Anchor Points

    Subframe 1 Subframe 1 3840 x 2160 3840 x 2160 Anchor Point Subframe 2 Subframe 2 640 x 360 Device Operation 640 x 360 Anchor Point If the incoming stream changes resolution to 1280x720, then the subframe will grow in size, but it will still fit on- screen, because its bottom right Anchor point has not changed position.

  • Page 50: Multiview And Dual-Streaming Tutorial

    Device Operation Multiview and Dual-Streaming Tutorial This section provides a tutorial on configuring a multiview setup. In addition, the concept of dual-streaming will be introduced. Review the diagram and the table below for a summary of how this setup will function. All encoders and the decoders should be connected to the same local network.

  • Page 51: Dual-Streaming Encoder Configuration

    Device Operation Dual-Streaming Encoder Configuration Encoder #1 This encoder is used with the HD camera and will be configured to dual-stream 1080p and 720p. 1. Go to the System information page, click the System mode drop-down list and select VCx. Click the SAVE button to commit changes.
  • Page 52 Device Operation Encoder #2 This encoder is used with a 4K source and will be configured to dual-stream 4K and 1080p. 1. Go to the System information page, click the System mode drop-down list, and select VCx. Click the SAVE button to commit changes.

  • Page 53: Decoder Configuration

    Device Operation Decoder Configuration Dual-streaming has been successfully configured on both encoders. This provides a total of four streams which are listed in the tables, below, for reference. Encoder #1 (source: HD camera) Stream Encoder Resolution Session Multicast IP Address Port 1920x1080 226.0.0.1...

  • Page 54: Multiview Configuration

    Device Operation Multiview Configuration The final step is to configure the decoders to display the proper stream(s), as outlined in the tutorial diagram (shown below). Encoder #2 Laptop NI -11 TR EA M NI -O M RE SE RE SE TR EA I-1 11 RS -23...
  • Page 55 Device Operation 1. Click the SAVE button. 2. Click HDMI Output in the menu bar. 3. Locate the Video section, click the Input drop-down list, and select Multiview pip. This is the name of the multiview that was created in Step 4. The name Multiview will always be used as a prefix, indicating that the selection is a multiview.

  • Page 56: Positioning Subframes

    Device Operation Positioning Subframes Each subframe in a multiview can be repositioned on the screen based on its anchor point. For example, in the picture-in-picture example that was created on Decoder #1, the settings for each subframe are as follows: Input Anchor ip_input2 (226.0.0.2:1000)

  • Page 57: Changing The Z-Order

    Device Operation Changing the Z-Order The ordering of overlapping subframes in two-dimensional space is referred to as the z-order. In the illustration below, the red window is set to priority 4 and will be displayed on top of all other subframes. Assigning a subframe to z-order 1 (the blue window) will move the subframe behind the other subframes.

  • Page 58: Adding Subframes

    Device Operation Adding Subframes Multiview supports a maximum of 4 subframes. As long as the maximum number of subframes is not exceeded, additional subframes can be added. This provides for customization of existing layouts. 1. Click the Multiview menu. 2. Under the Multiviews window group, click the name of the Multiview to be changed. 3.

  • Page 59: Aes67 Audio

    Device Operation AES67 Audio AES67 audio is a standard for high-performance audio streaming over IP, providing several features such as synchronization, media clock identification, and connection management. AES67 does not support bitstream/ compressed audio formats, such as Dolby® Digital, and others. Source audio must be transmitted as LPCM up to eight channels at 192 kHz / 24-bit.
  • Page 60 Device Operation 6. Go to the decoder and click the SAP Listener menu. 7. Click the Enable toggle switch to enable the SAP listener. When enabled, the toggle switch will be orange. 8. Click the SAVE button. 9. Click the IP Input menu. 10.
  • Page 61 Device Operation 13. Click the HDMI Output menu. 14. Locate the Audio section, click the Audio > Input drop-down list, and select the input that was configured in Steps 10 and 11. 15. Click the Enable AES67 toggle switch to enable it. When enabled, the toggle switch will be orange. 16.

  • Page 62: Encoder Grouping

    Device Operation Encoder Grouping Encoder grouping allows the creation of a “virtual matrix” by grouping several physical encoders into a single logical encoder. Only a single session can be active at any one time. The following procedure must be performed on all encoders that will be part of the encoder group.
  • Page 63 Device Operation 6. Click the Add button to add members to the encoder group. A member refers to the IP address of a physical encoder. 7. The New Member dialog will be displayed. 8. Enter the IP address of the encoder in the Address field. 9.
  • Page 64 Device Operation 10. The new member will be added to the group. Continue adding members as needed, following Steps 9 and 10. 11. Click the SAVE button. 12. Under the Video and Audio sections, enter the IP address and UDP port information, in the Destination IP address and Destination UDP port fields, respectively.

  • Page 65: Decoder Configuration

    Device Operation Decoder Configuration 1. Login to the decoder and click the IP Input menu. 2. Click the Enable toggle switch to enable the input. When enabled, the toggle switch will be orange. 3. Enter the multicast address and port information in the Multicast address and Port fields. The information on both of these fields must be identical to the Session information, entered in the previous section.
  • Page 66 Device Operation 7. Optional: Click the Descrambling > Enable toggle switch to enable scrambling. When enabled, the toggle switch will be orange. In addition, enter the scrambling key in the Scrambling > Key field. The descrambling key should always match the scrambling key on the encoder.

  • Page 67: Scrambling

    Device Operation Scrambling OmniStream supports 128-bit Advanced Encryption Standard (AES) scrambling and is required for HDCP-encrypted video streams. Scrambling can be enabled or disabled through the web server, and can be applied to individual sessions. In order for scrambling to function properly, it must be enabled on both the encoder session and all decoders subscribed to a stream that is a part of a scrambled session.

  • Page 68: Slate / Logo Insertion

    Device Operation Slate / Logo Insertion The difference between a “slate” and “logo” is in the size of the image and how it is used: Logos are classified as smaller, low-resolution images that can be positioned at specified locations on the screen. Slates occupy the entire screen.

  • Page 69: Deleting Slates

    Device Operation 14. Click Encoding in the menu bar. 15. Click the Slate mode drop-down list, and select Off, Manual, or Auto. Slate mode Description Disables the image from being displayed. Manual The image will always be displayed, superimposed on the source signal, and will remain even if the source signal is lost.

  • Page 70: Text Insertion

    Device Operation Text Insertion Text can be inserted and scrolled across the screen, making it useful for messages and notifications. Several options are available when using text: Scroll speed adjustment (forward, reverse, or static), number of iterations, text color, vertical / horizontal position, as well as transparency. 1.

  • Page 71: Configuring A Static Ip Address

    Device Operation Configuring a Static IP Address There will be situations where it is desirable for the encoder to be assigned a static IP address. Some IT environments prefer this method, as opposed to having a DHCP server dynamically assign IP addresses. If the encoder is unable to detect a DHCP server within 15 seconds, then Automatic Private IP Addressing (APIPA) will be used to assign the encoder an address within the IPv4 address block 169.254.xxx.xxx/16.

  • Page 72: 802.1X Authentication

    Device Operation 802.1X Authentication 802.1X is a server-based port authentication which restricts unauthorized (rogue) clients from connecting to a Local Area Network. In its simplest form, 802.1X usually involves three parties: supplicant (client device), authenticator (Ethernet switch or WAP), and an authentication server. Before the device is permitted on the network, port communication is restricted to Extensible Authentication Protocol over LAN (EAPOL) traffic.
  • Page 73 Device Operation 1. Login to the encoder and click the NETWORK menu. 2. Click the 802.1x > Mode drop-down list, at the bottom of the Network window group and select the desired authentication method. In the example below, PEAP/MSCHAPv2 is selected. Once a method is selected, the required fields for that method will be displayed.

  • Page 74: Configuration And Management Interfaces

    Configuration and Management Interfaces Web Server NOTE: This section assumes that the System mode is set to VCx. If VC-2 Video or VC-2 PC Application is used, some features on these pages will not be available. System information page Firmware version The version of firmware that the encoder is running.
  • Page 75 Configuration and Management Interfaces Description Provides the option of assigning descriptive name to the unit. Location Provides the option of assigning a description of where the unit is located. Timezone Displays the time zone format. Click the SET TIMEZONE button, to assign the time zone. Date/Time Displays the current date and time.
  • Page 76 Configuration and Management Interfaces FACTORY RESET Click this button to reset the encoder to factory-default settings. When performing a factory reset, the following options can be selected, by clicking the check box. If no options are selected, then the encoder is reset with no factory-default settings.

  • Page 77: Sap Listener Page

    Configuration and Management Interfaces SAP Listener page Enable Click this toggle to enable or disable SAP. This feature is enabled when the toggle switch is orange. This is the default setting. If an SAP announcement is picked up, it will be displayed below the SAP window group (as shown here).

  • Page 78: Input Page

    Configuration and Management Interfaces Input page Input window groups Single-channel encoders only have a single Input window group. Name The name of the input. This field cannot be changed. Cable present This indicator will be red if the encoder is unable to detect the source signal.
  • Page 79 Configuration and Management Interfaces EDID Description ATL 1366x768 RGB DVI TVWXGA2CH 1280x800p60 TV format with two-channel PCM audio ATL 2560x1600 2CH 2560x1600p60 with two-channel PCM audio ATL 2560x1600 MCH 2560x1600p60 with multichannel PCM audio ATL 720P DD 1280x720p60 with Dolby Digital audio ATL 720P 2CH 1280x720p60 with Dolby Digital two-channel audio ATL VR (2160x1200)
  • Page 80 Configuration and Management Interfaces Video generator window group This signal can be used to test the video capability of the network. Name The name of the input. This field cannot be changed. Color Depth Click this drop-down list to select the color depth. Available values are 8, 10, and 12. Colorspace Click this drop-down list to select the color space.

  • Page 81: Edid Page

    Configuration and Management Interfaces EDID page Product Displays the SKU of the OmniStream encoder or the Product and Vendor for any EDID captured using a decoder. This field cannot be changed. Vendor Displays the vendor name. This field cannot be changed. Preferred mode Displays the preferred timing and resolution of the EDID.

  • Page 82: Encoding Page

    Configuration and Management Interfaces Encoding page Encoder window groups Name The name of the encoder. This field cannot be changed. Input Click this drop-down list to select the input. Available options are: not used, hdmi_input1, and video_ generator1. Max bit rate Click this field to enter the maximum bit rate.
  • Page 83 Configuration and Management Interfaces Slate mode Click this drop-down list to enable or disable slate mode. Available values are: off, manual, and auto. Slate mode Description Disables the image from being displayed. Manual The image will always be displayed, superimposed on the source signal, and will remain even if the source signal is lost.

  • Page 84: Serial Page

    Configuration and Management Interfaces Serial page Serial port configuration window groups Name The name of the serial port. This field cannot be changed. Supported Modes Displays the supported protocols for the serial port. This field cannot be changed. Mode Click this drop-down list to select the desired serial mode.
  • Page 85 Configuration and Management Interfaces Flow Control Click this drop-down list to select the type of flow control: none, xonxoff, or hw. SAVE Click this button to commit all changes within the Serial port configuration window group. Serial configuration window groups Name The name of the port.

  • Page 86: Session Page

    Configuration and Management Interfaces Session page Session window groups The following fields apply to all Session window groups. The AT-OMNI-111-WP supports up to six sessions. Name The name of the session. This field cannot be changed. Interface Click this drop-down list to select the desired interface. Interface Description eth1...
  • Page 87 Configuration and Management Interfaces EncGroup Enable Click this toggle switch to enable (orange) or disable encoder grouping. Name Enter the name of the encoder in this field. Only available if encoder grouping is enabled. Active Indicates if the encoder group is active. If active, then this indicator will be green. Only available if encoder grouping is enabled.
  • Page 88 Configuration and Management Interfaces Scrambling Enable Click this toggle switch to enable or disable scrambling on the encoder. Atlona recommends enabling scrambling for security purposes. When enabled, the toggle switch will be orange. This field is only displayed if the Scrambling toggle switch is enabled (orange). Enter the scrambling key in this field. The scrambling key must be ASCII and must contain a minimum of eight characters.
  • Page 89 Configuration and Management Interfaces Audio Source Click this drop-down list to select the desired input. Available values are: Not used, audio_generator1, and hdmi_input1. Enable AES67 Click this toggle switch to enable AES67. When this feature is enabled, the toggle switch will be orange. Downmixing This field will only be available when AES67 is enabled.
  • Page 90 Configuration and Management Interfaces Source Click this drop-down list to select the method of how commands are transmitted. Source Description Not Used Serial control is disabled Commands Stored commands in the encoder are sent to the decoder serial port. Refer to Downstream Control using Triggering (page 40) for more information.

  • Page 91: Logo Page

    Configuration and Management Interfaces Logo page New logo window group Name Enter a name for the logo in this field. Choose File Click this button to select the logo file to be uploaded. Files must be in .png or .svg format and must not exceed 5 MB (5120000 bytes) in size.
  • Page 92 Configuration and Management Interfaces Location Horizontal (%) Enter the horizontal position of the logo based on the resolution of the video stream. Vertical (%) Enter the vertical position of the logo based on the resolution of the video stream. Size Width (%) Enter the width of the logo.

  • Page 93: Text Page

    Configuration and Management Interfaces Text page Text insertion window group Enabled Click this toggle switch to enable or disable the text. When the toggle switch is orange, the text will be enabled. Text Enter the desired text in this field. Scroll Speed Enter the scrolling speed in this field.
  • Page 94 Configuration and Management Interfaces Horizontal Enter the horizontal position of the text, based on the resolution of the video stream. Vertical Enter the vertical position of the text, based on the resolution of the video stream. Width Enter the width of the text. This value is based on the horizontal resolution of the video stream.

  • Page 95: Network Page

    Configuration and Management Interfaces Network page Network window groups The AT-OMNI-111-WP has only one Network window group. Name Displays the name of the Ethernet interface. This field cannot be changed. Enabled This indicator displays the state of the Network Interface Card (NIC). If the indicator is green, then the NIC is in the up/up state.
  • Page 96 Configuration and Management Interfaces Link speed Displays the Ethernet interface link speed in Mbps. This field cannot be modified. MAC address Displays the MAC address of the Ethernet interface. Telnet Enable Click this toggle switch to enable or disable Telnet. If disabled, then Telnet sessions to the encoder cannot be established.

  • Page 97: Ptp Page

    Configuration and Management Interfaces PTP page The PTP page provides options for adjust Precision Time Protocol (PTP) for AES67 audio streams. PTP is used by AES67 to keep all audio streams synchronized. For a system utilizing PTP, all devices undergo an automatic self-election process to choose the device to be used as the PTP grandmaster (GM) clock, based on the accuracy of the device’s clock and the device’s configured priority.
  • Page 98 Configuration and Management Interfaces Displays the TTL value. The default IPV4 TTL value used for PTP is 8. Is GM If the indicator is green, then this interface is the PTP GM. GM Identity The grandmaster clock identity. Master Offset Displays the grandmaster clock offset.

  • Page 99: Lldp Page

    Configuration and Management Interfaces LLDP page The Link Layer Discovery Protocol (LLDP) page returns information about the switch that the encoder is connected to. If both interfaces from a dual-channel encoder are connected to the switch, then two eth window groups will be displayed.

  • Page 100: Configuration Page

    Configuration and Management Interfaces Configuration page Import configuration Choose File Click this button to select the desired configuration file to be uploaded. IMPORT Click this button to upload the selected configuration file to the encoder. The hostname, specific to the configuration filename, will be ignored.

  • Page 101: Users Page

    Configuration and Management Interfaces Users page User window groups The following fields apply to all User window groups. Encoders have two usernames, by default: admin and operator. Username Enter the desired username in this field. Role Click this drop-down list to select the desired role of the user. New password Enter the desired password for the username in this field.

  • Page 102: License Page

    Configuration and Management Interfaces License page This page displays all installed licenses and allows additional licenses to be installed. License Key Enter the license key in this field. INSTALL LICENSE Click this button to validate and install the license. AT-OMNI-111-WP...

  • Page 103: Upgrade Page

    Configuration and Management Interfaces Upgrade page This page is used to update the firmware on the encoder. Choose File Click this button to select the firmware file to be uploaded. UPLOAD Click this button to upload the selected firmware file. AT-OMNI-111-WP...

  • Page 104: Appendix

    Appendix Updating the Firmware Follow the procedure below to update OmniStream units using the built-in web server. 1. Launch the desired web browser and enter the IP address of the encoder/decoder in the address bar. 2. Enter the username and password. Note that the password field will always be masked. The default credentials are: admin Username:...

  • Page 105: Performing A Link Test

    Appendix Performing a Link Test Follow the procedure below to perform a link integrity test between an encoder and decoder(s). 1. Launch a web browser and enter the IP address of the encoder in the address bar. 2. Open another tab in the browser and enter the IP address of the subscribing decoder in the address bar. 3.
  • Page 106 Appendix 6. An orange screen with a progress bar will be displayed during the testing procedure. 7. After the test, the encoder web page will automatically redirect to the Notifications tab where the user can see the results. If the test passed, information similar to the following will be displayed. Note the information in the Description field: “100% of packets received by ...”...
  • Page 107 Appendix If the test fails, it could be that less than 100% of packets are received, indicating connectivity, but with some amount of packet loss. If it shows “No one replied!” or if the target decoder is not shown in results, it could indicate that there is a connectivity issue or that the decoder is not subscribed to the correct video multicast address.

  • Page 108: Fec Details

    Appendix FEC Details Matrix Size, Overhead, and Latency • FEC can only work if a single packet from each row/column is missing. Multiple packets missing from each row/ column will cause FEC to fail. • Due to the above, a smaller matrix is more robust, as there is a better chance of errors not occurring in the same row/column.

  • Page 109: Fec, Latency, And Lip Sync

    Appendix FEC, Latency, and Lip Sync • In order for FEC to work, the matrix must be filled in order to calculate the FEC packets. This introduces some additional latency. Due to high bitrates, this is not noticeable for video, but can be very significant for audio. Therefore, Atlona recommends either leaving FEC disabled for audio or using a very small matrix.

  • Page 110: Differentiated Services Code Point

    Appendix Differentiated Services Code Point Differentiated Services Code Point (DSCP) is a method of managing network traffic, in addition to providing Quality of Service (QoS) within the Layer-3 (Network Layer) of the OSI network model. DSCP uses the 6-bit Differentiated Services (DS) field in the IP header in order to determine packet classification/priority.

  • Page 111: Specifications

    Appendix Specifications Video Signal HDMI Copy Protection HDCP 2.2 UHD/HD/SD 4096×2160 (DCI) @ 30/24 Hz 1280x720p @ 30/50/59.94/60 Hz 3840×2160 (UHD) @ 60/50/24/25/30 Hz 720x576p @ 50 Hz 1920x1080p @ 23.98/24/25/29.97/30/50 720x576i @ 25 Hz /59.94/60 Hz 720x480p @ 59.94/60 Hz 1920x1080i @ 25/29.97/30 Hz 720x480i @ 29.97/30 Hz...
  • Page 112 Appendix Protocols Video Streaming Audio Streaming RTP, up to 7.1 channels AES67, up to LPCM 7.1 channels Addressing DHCP, static Encryption AES-128 QoS Tagging RFC 2475 Discovery Multicast DNS, LLDP, SAP Management HTTPS, SSH, Telnet, and WebSockets with TLS Authentication IEEE 802.1x: PEAP/MSCHAPv2 or EAP-TLS IP Multicast IGMPv2 and IGMPv3 support...
  • Page 113 Appendix Certification Device CE, FCC, CB, RoHS Compliance NDAA-889 Warranty Device 10 years Footnotes (1) Interlaced sources are passed-through without modification, and do not support scaling, video wall, logo insertion, text insertion, or fast switching. (2) Due to thermal constraints, 4K50 and 4K60 resolutions are only supported when the input resolution has 4:2:0 chroma subsampling.
