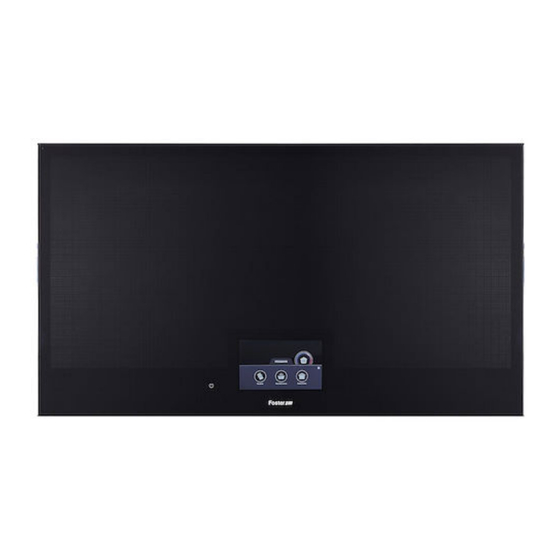

- Page 1 EN - Use and installation manual EN - Induction vitroceramic hob Model: 7300000...
- Page 2 CONNECTION TO THE POWER SUPPLY The appliance may ONLY be connected by an authorized qualified technician. Electric system protection should comply with all relevant regulations. The connection clips can be accessed when the connection clip covers are opened / ...
-
Page 3: Dear Customer
Dear customer! This appliance is intended for household use only. Materials used for packaging are nature friendly and may be recycled, deposited or destroyed without any threats to the environment. In order to recognize these features, all packing materials are marked with relevant symbols. Once your appliance has become obsolete and you do not intend to use it any longer, take adequate care not to litter the environment. -
Page 4: Important Warnings
IMPORTANT WARNINGS The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. Prevent the children to hang around the appliance and warn them properly against the danger of burns. This appliance can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 5: Installation
INSTALLATION Important warnings • Installation of the appliance into a kitchen worktop must be performed by an adequately qualified technician. • Veneer or other finish of the piece of kitchen furniture into which the hob is to be built in should be treated with heat resistant glue (100°C);... - Page 6 BUILT-IN SIZES 7300000 7380645 7381645 7381245 7382645 7383645 7384645 55 mm 55 mm 55 mm 55 mm 55 mm 55 mm 6 mm 6 mm 6 mm 6 mm 6 mm 6 mm Installing the foam Before inserting the appliance into the opening in the kitchen worktop, the supplied foam gasket gasket must be attached to the lower side of the glass.
- Page 7 220-240 V~ 50/60 Hz 1 phase + N 3 x 4 mm2 7383645 7300000 To be able to switch off a pot really fast the user can double tab on the required pot. The power leve 7384645 7381645 immediately switched to power level 0.
- Page 8 WARNING! THIS APPLIANCE MUST BE GROUNDED The electrical safety of this appliance can only be guaranteed when continuity is complete between it and an effective earthing system, which complies with current local and national safety regulations. You can access terminal block at the bottom of the appliance. Open terminal block with the use of a screwdriver with a slotted tip.
-
Page 9: System Power Settings
SYSTEM POWER SETTINGS •The cooktop must be connected to the power supply for max. 1 minute. •The cooktop must be switched OFF. •Press simultaneously anywhere on the left region and on the right region in the lower half area of the display for 2 seconds. •Values starting from 2.4kW up to 11.0 kW in 100W steps can be chosen. -
Page 10: Appliance Introduction
APPLIANCE INTRODUCTION technical customer documentation company: 0083 / E.G.O. Germany (E.G.O. Elektro-Gerätebau GmbH) 4.2.2 Switching ON and OFF Precondition The cooktop is in standby mode, i. e., it is connected to the power supply voltage and the self-te performed successfully. ... -
Page 11: Cookware Detection
company: 0083 / E.G.O. Germany (E.G.O. Elektro-Gerätebau GmbH) COOKWARE DETECTION There are three standard pot sizes implemented in the UI: small, medium, big. Pots are always disp with a round shape. Fourth pot size is only used in display conflict cases. s currently active. -
Page 12: Power Level Setting
Generally, two selection modes are possible: 4.2.8 Power levels Direct Selection: In general, there are 18 power levels implemented in the power level slider. POWER LEVEL SETTING The selection is done by touching directly on the desired cooking level number. [0, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9] Sliding: The selection is done by wiping with the finger from the left side to the right or vice versa. -
Page 13: Boost Function
period of time (10 min for Area induction). This is useful to heat-up/boil a big amount of water. technical customer documentation BOOST FUNCTION As the booster function may reach high temperatures, it must only be used for cooking Note company: 0083 / E.G.O. Germany (E.G.O. Elektro-Gerätebau GmbH) processes using water. -
Page 14: Melting Function
The function sets the temperature of the induction coil sensor to 70°C. technical customer documentation company: 0083 / E.G.O. Germany (E.G.O. Elektro-Gerätebau GmbH) CTIVATION OF KEEP WARM FUNCTION MELTING FUNCTION Precondition The melting function is activated for the selected pot 4.3.2 Pot Programs Cooktop is ON. -
Page 15: Cooking Timer
Generally, two selection modes are possible: 4.2.12 Pot Lifting If a pot is lifted by the user, the induction keeps the pot information for Direct Selection: The selection is done by touching directly on the desired cooking level number. the user can replace the pot and all pot settings are reset automaticall COOKING TIMER Sliding:... -
Page 16: Menu Bar Functions
Note For safety reasons, switching OFF the cooktop by the ON/OFF SmartKii is always p prox. 20 seconds. During that time MENU BAR FUNCTIONS KEY LOCK r approx. 20 seconds technical customer documentation document id.: 90.60113.039-001-08-A / state: 120 - at review •Key lock is a functionality intended to lock the display while the cooktop is in operation. - Page 17 PAUSE •Pause function is a feature to “freeze” the cooktop for max. 10 minutes. •No cooking zone will provide any power. •All timers (including stand-alone timer) will be paused. •To activate the pause function touch the pause icon in the menu bar. ...
-
Page 18: Child Lock
CTIVATION OF THE OOSTER PERSONALISE technical customer documentation Precondition technical customer documentation Cooktop is switched ON. Pot is placed on the cooktop and pot is in selection mode. company: 0083 / E.G.O. Germany (E.G.O. Elektro-Gerätebau GmbH) •Functions which are displayed in the menu bar in the main screen can be personalised. company: 0083 / E.G.O. - Page 19 Brightness •Brightness level can be modified to improve visibility. •Select the brightness icon in the settings menu. •Adjust the brightness on the slider. •Confirm the settings by selecting the tick icon. Clock •In the clock settings menu, the timecan be adjusted. The clock uses 24 h time format by default. •Select the clock icon in the settings menu.
-
Page 20: Residual Heat Indicator
PROTECTION AND SAFETY WARNINGS COOKING TIME LIMITER •The cooking time limiter is an additional safety feature to turn OFF pots after a certain time. COOKING LEVEL MAX. OPERATION TIME Melting Keep warm Simmering 10 h 10 h document id.: 90.60113.039-001-08-A / state: 120 - at re designation: Lumio customer documentation 10 min RESIDUAL HEAT INDICATOR... -
Page 21: Conflict Management
The cooktop is switched ON. A pot of unsuitable pot material is placed on the cooktop. The unsuitable pot is displayed in grey color with a question mark If the timer expired, a signal tone will be emitted, and the timer numbers are highlighted and flashing ... - Page 22 The signal tone stops, and the clock icon is displayed on the p Example: document id.: 90.60113.039-001-08-A / state: 120 - at rev •Pot with power level 8 is moved close to the pot with power level 1. designation: Lumio customer documentation •The power level of the moved pot is decreased to the max possible power level (here e.g., level 3).
- Page 23 again PROTECTION AND SAFETY WARNINGS page 28 of 113 COMMON PROBLEMS CAUSE POSSIBLE SOLUTION Cooling fan keeps working Cooling Standard procedure after the hob is switched on These noises can’t be fully avoided. -Try moving the pots Induction causes some noises -Make sure the pot’s underside is clean like chirping, humming, The hob makes weird noises...
-
Page 24: Cleaning And Maintenance
CLEANING AND MAINTENANCE Ceramic glass hob should be cleaned only when completely cooled down, preferably after each use, otherwise even the slightest stains remaining after cooking may burn into the hob surface with each following use. For regular maintenance of ceramic-glass hob use special cleansing agents, produced in such way to create protective film upon the surface. - Page 28 Foster S.p.A Via M.S. Ottone 18-20 42041 Brescello (RE) – Italy www.fosterspa.com LIB30976 rev. 01 (09-2022)
