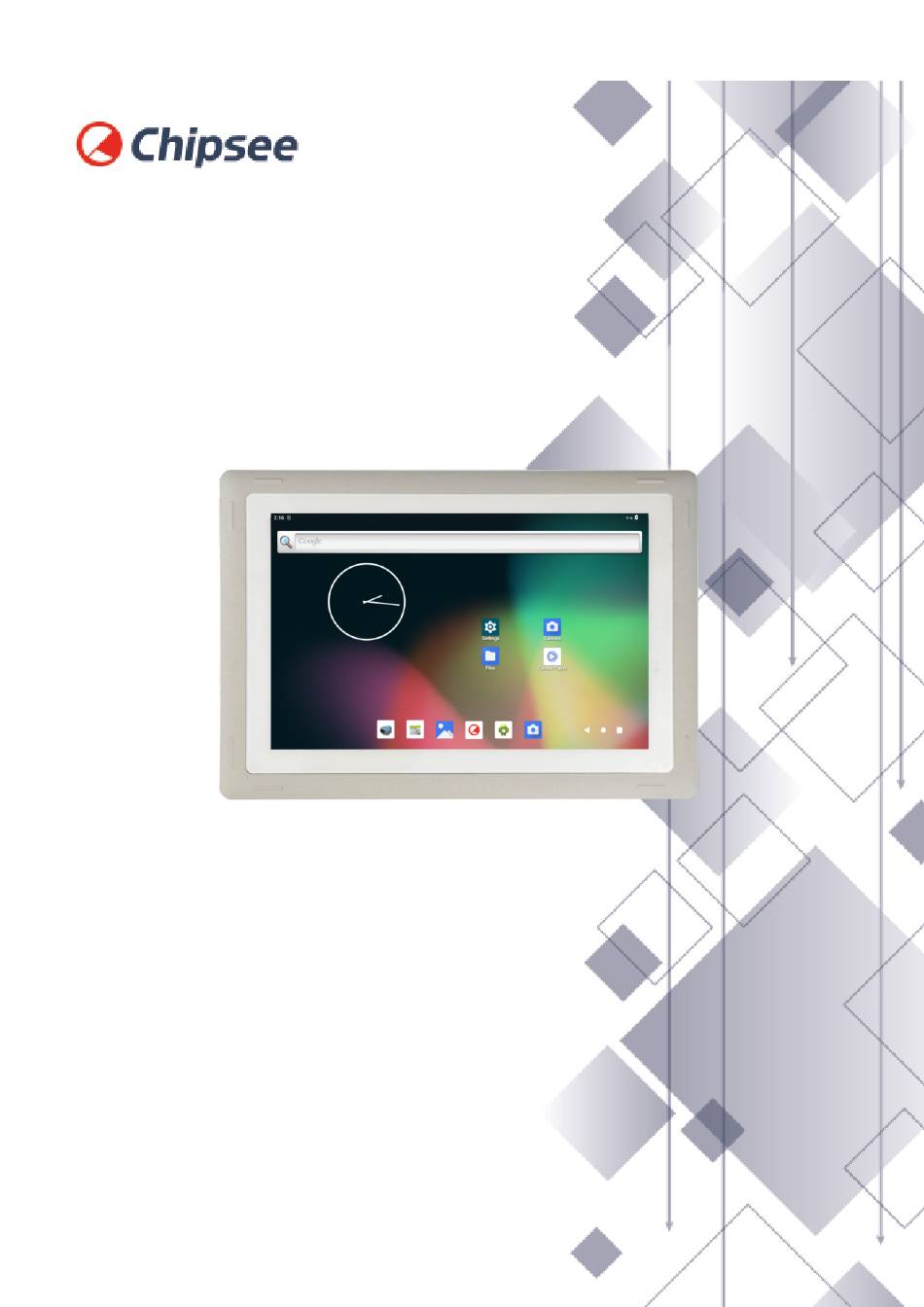

- Page 1 Industrial PC PPC-A53-101 PN: CS12800-IMX8MP-101P Content can change at anytime, check our website for latest information of this product. www.chipsee.com...
-
Page 2: Table Of Contents
6.3. LAN Connectors 6.4. WiFi & BT Module 6.5. 4G/LTE Module 7. TF Card Slot 8. Audio Connectors 9. HDMI Connector 10. PROG Button 11. Mounting Procedure 12. Mechanical Specifications 13. Disclaimer 14. Technical Support Chipsee Page 2 of 28... -
Page 3: Ppc-A53-101
PPC-A53-101 PPC-A53-101 Front View Chipsee Page 3 of 28... - Page 4 PPC-A53-101 Rear View Chipsee Page 4 of 28...
- Page 5 PPC-A53-101 Side View 1 Chipsee Page 5 of 28...
- Page 6 PPC-A53-101 Side View 2 Chipsee Page 6 of 28...
-
Page 7: Product Overview
(SoC), powered by the NXP i.MX8MP low-power processor which integrates a quad-core ® Cortex -A53 1.6GHz processor. The i.MX8MP supports multi-format video decoders and has a high-performance LPDDR4 4GB RAM capable of sustaining demanding memory bandwidths. It also provides a complete set of peripheral interfaces. Chipsee Page 7 of 28... -
Page 8: Ordering Options
Software Documentation section provides a detailed instruction on how to install different OSes on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com... -
Page 9: Optional Features
Chipsee store during the ordering process. Warning Installation, repair, and maintenance tasks should be performed by trained personnel only. Chipsee does not bear any responsibility for damage caused by inadequate handling of the product. Chipsee Page 9 of 28... -
Page 10: Hardware Features
Max brightness, max CPU load: 0.97A at 12V; Min brightness, idle: 0.58A at 12V. Power Max brightness, max CPU load: 11.64W; Min brightness, idle: 6.96W. Consumption Working From 0°C to +60°C Temperature Android 12, Yocto Linux Qt 6.3 Chipsee Page 10 of 28... - Page 11 2 x RS232 and 2 x RS485, including 1 RS232 debug port. This product has 2 x CAN by default, all of them can be configured to RS232 (USB UART). UART can be swapped between RS232 and RS485 modes easily, if you need a different RS232/RS485/CAN configuration, please get in touch with the Chipsee Technical Support at support@chipsee.com...
-
Page 12: Power Input
PCB of the embedded version. The “-” terminal is shorted to the ground. Power Input Definition Pin Number Definition Description Pin 1 Positive Input DC Power Positive Terminal Pin 2 Negative Input DC Power Negative Terminal Pin 3 Ground Power System Ground Table 88 Power Connector Chipsee Page 12 of 28... -
Page 13: Touch Screen
Bad GND problems can also be confirmed by touching pin 3 of the Power Input connector with one hand while operating the capacitive touch screen with the other hand. In this case, the operator’s body acts as the Power System Ground. Chipsee Page 13 of 28... -
Page 14: Connectivity
Pin Number Definition Description Pin 1 CAN0_H CAN H signal Pin 2 CAN1_H CAN H signal Pin 3 CAN0_L CAN L signal Pin 4 CAN1_L CAN L signal Pin 5 RS485_4- USB UART1, RS485 -(B) signal Chipsee Page 14 of 28... - Page 15 RS485 can control the input and output direction automatically. There’s no need to control it from within the software. The 120Ω match resistor for the RS485 is already mounted by default. The 120Ω match resistor for the CAN bus is NOT mounted by default. Chipsee Page 15 of 28...
-
Page 16: Usb Connectors
HOST is enabled by default; in Android USB-C OTG is enabled by default. You can change this config by software in the operating systems, e.g.: disable USB3.0 HOST then enable USB-C OTG in Linux, or vice versa in Android. USB 2.0 HOST Port Chipsee Page 16 of 28... - Page 17 PPC-A53-101 USB Connectors USB 3.0 HOST Port USB Type-C Port Warning Be careful not to touch surrounding electronic components accidentally while plugging USB devices into the embedded IPC version. Chipsee Page 17 of 28...
-
Page 18: Lan Connectors
Ethernet(PoE) (optional) interface supports up to 1 Gbps data throughput. The LAN port supports optional Power over Ethernet (PoE) feature. RJ45 LAN Connector Note Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m). Chipsee Page 18 of 28... -
Page 19: Wifi & Bt Module
WiFi/BT module which supports BT/BLE 2.1/3.0/4.2, as well as 802.11ac/abgn 433Mbps 2.4/5.8 GHz Wireless LAN (WLAN). Figure 390: RTL8821CS WiFi/BT Module The PPC-A53-101 includes an SMA connector for an external WiFi/BT antenna, as illustrated in the figure below. WiFi+BT Antenna SMA Chipsee Page 19 of 28... -
Page 20: 4G/Lte Module
SIM Card Direction (Micro SIM Card) Attention The product does not come shipped with the 4G/LTE module by default. The customer can choose the 4G/LTE module option when placing an order, we will install all the necessary components. Chipsee Page 20 of 28... -
Page 21: Tf Card Slot
The PPC-A53-101 Industrial Panel PC features 1 x TF Card (micro SD) slot. TF Card can address up to 128GB of storage. TF (micro SD) Card Slot Note The product does not come shipped with the TF Card by default. Chipsee Page 21 of 28... -
Page 22: Audio Connectors
Audio Connector The miniature 2W embedded speaker is handy for audio reproduction, the small buzzer can play alarm/notification sounds. 2W Micro Speaker and Buzzer Attention Chipsee Page 22 of 28... - Page 23 PPC-A53-101 Audio Connectors By plugging in the headphone cable, the internal speaker will be disabled automatically. Chipsee Page 23 of 28...
-
Page 24: Hdmi Connector
HDMI Connector The PPC-A53-101 Industrial Panel PC is equipped with 1 x HDMI OUT connector. The HDMI connector allows connecting an additional (external) monitor. HDMI output resolution can be configured by the software. HDMI Connector Chipsee Page 24 of 28... -
Page 25: Prog Button
SD card, then you may release the button. When the button is not pressed while powering up, the PPC-A53-101 will boot normally from eMMC. PROG Button Chipsee Page 25 of 28... -
Page 26: Mounting Procedure
You can also mount PPC-A53-101 with panel mounting method (guide). Attention Please make sure the display is not exposed to high pressure when mounting into an enclosure. Chipsee Page 26 of 28... -
Page 27: Mechanical Specifications
PPC-A53-101 Mechanical Specifications Mechanical Specifications For PPC-A53-101, the outer mechanical dimensions are 275.5 x 193.5 x 46.0mm (W x L x H). Dimensions (PPC-A53-101) Chipsee Page 27 of 28... -
Page 28: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
