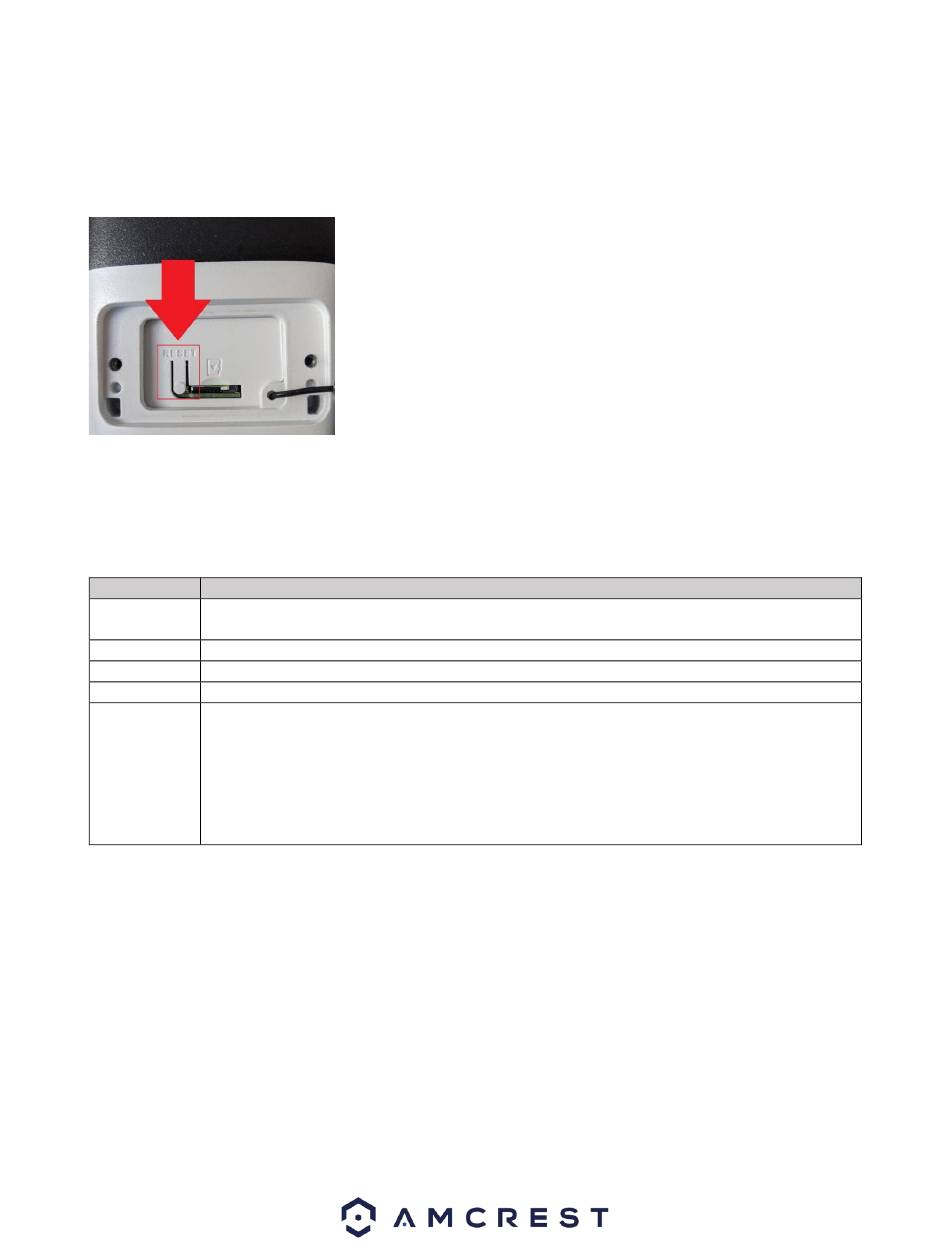

Performing a Factory Reset
Performing a factory reset on your camera will revert the camera back to its original factory default settings.
perform a physical factory reset, make sure the device is powered on and follow the instructions provided below.
Please note, you will need a Phillips head screwdriver to complete the reset.
Dongle Wire Connections
The camera offers additional dongle wire connections which allows the user to attach an external RCA microphone,
speaker, connect a 12V DC power adapter (do not use if using PoE) or external alarm. For more details pertaining to
these connections please refer to the table below.
Connection
If the camera is not being powered using PoE a 12V DC, 2.0A power supply can be used to power
Power
the device. Please refer to the specs sheet for more details on power consumption.
Ethernet Port
Used to provide PoE power and data from a PoE switch or similar network.
Audio In
Connect a mono RCA microphone to this port to provide additional audio in capabilities.
Audio Out
Connect a mono RCA speaker to this port to provide additional audio out capabilities.
Use these connections to set an external alarm to the device.
Brown: Alarm Out
Green: Alarm Out Ground
Alarm
Blue: Alarm In
Gray: Alarm In Ground
For more information on how to setup an external alarm, please refer to the user manual for
your specific alarm system.
Installation Guide
Follow the steps and use the diagram in this section to install the POE cameras. Prior to installation ensure that the
installation environment can support at least 3 times the weight of the camera.
Step 1: Locate the hatch on the bottom of the camera. Use the included torx
wrench to remove the hatch.
Step 2: Locate the reset button, press and hold the reset button for 30-45
seconds and allow the camera to reset.
Step 3: Once the reset is complete place the hatch back onto the camera and
secure it to the camera using the included torx wrench. The camera has now
been factory reset and reverted to its original factory settings. This includes
usernames, passwords, and other settings. The default username and
password will always be admin.
