Amcrest IP8M-MB2546EW/ IP8M-2546EB

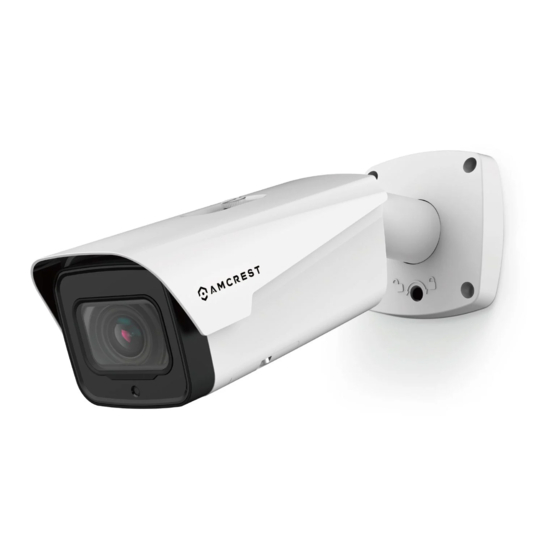

8MP UltraHD 4K (8MP) Motorized Lens Camera
User Manual
Version 1.0.0
nd
Revised December 2
, 2019
