IP2M-863EW-AI / IP2M-863EB-AI

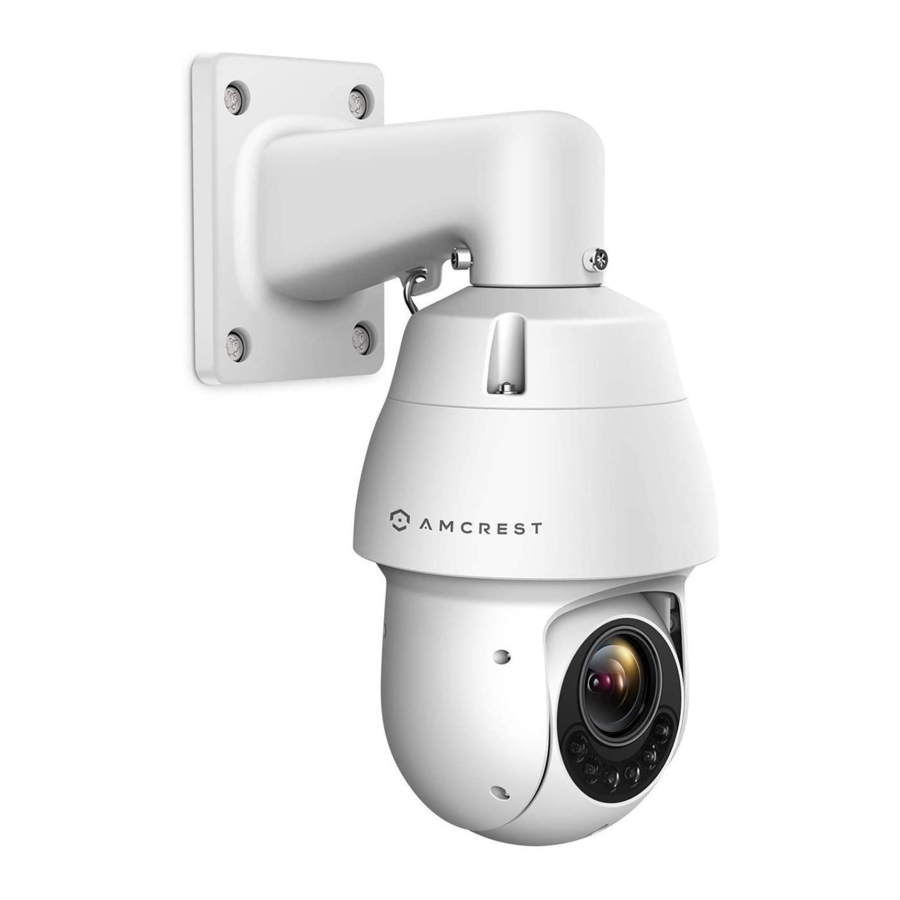

2MP Outdoor POE+ PTZ AI Speed Dome Camera
User Manual
Version: 1.0.0
th
November 6
, 2020
