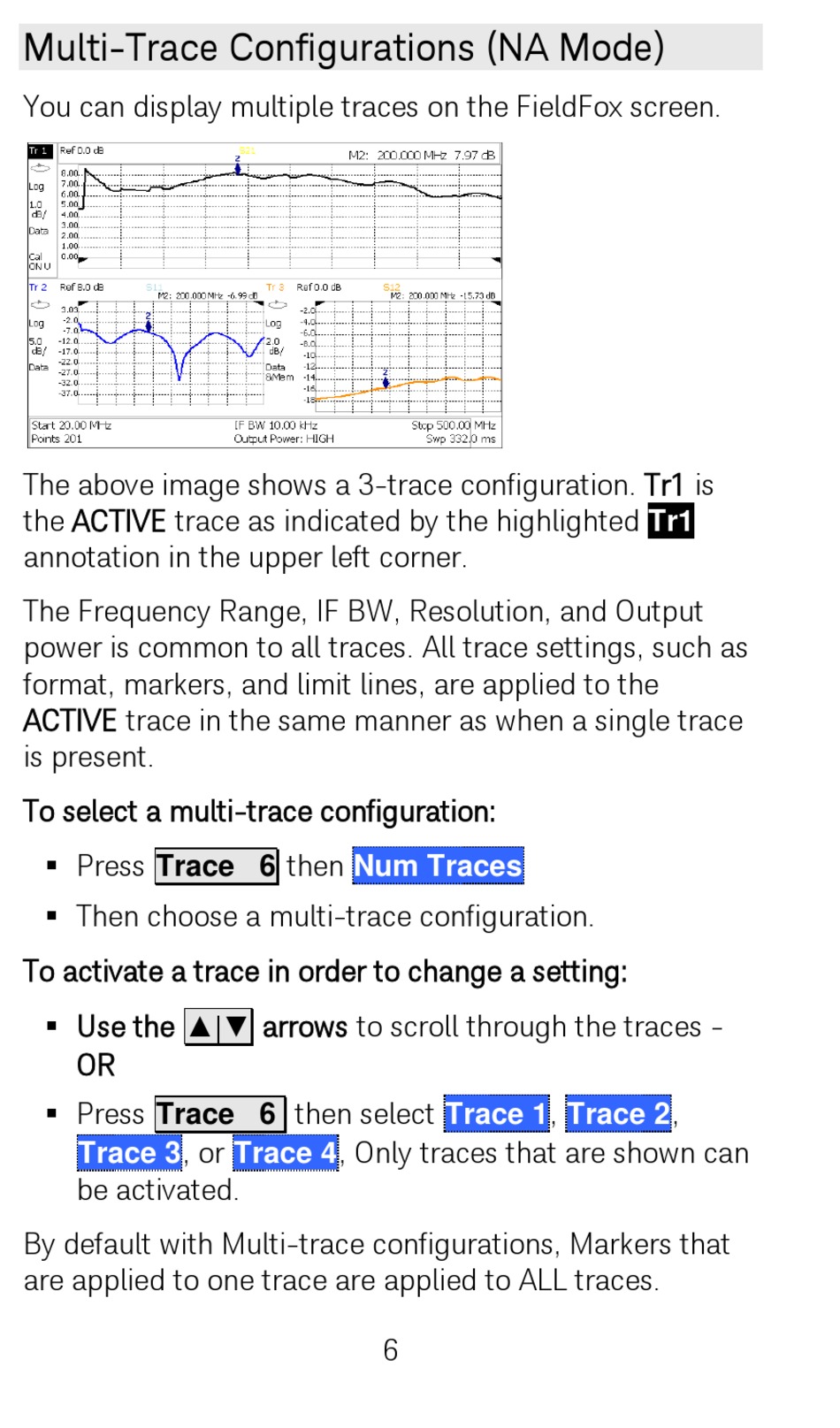

Multi-Trace Configurations (NA Mode)
You can display multiple traces on the FieldFox screen.
The above image shows a 3-trace configuration. Tr1 is
the ACTIVE trace as indicated by the highlighted
annotation in the upper left corner.
The Frequency Range, IF BW, Resolution, and Output
power is common to all traces. All trace settings, such as
format, markers, and limit lines, are applied to the
ACTIVE trace in the same manner as when a single trace
is present.
To select a multi-trace configuration:
 Press Trace 6 then
 Then choose a multi-trace configuration.
To activate a trace in order to change a setting:
 Use the ▲|▼ arrows to scroll through the traces -
OR
 Press Trace 6 then select
3, or
Trace
be activated.
By default with Multi-trace configurations, Markers that
are applied to one trace are applied to ALL traces.
Num Traces
4, Only traces that are shown can
Trace
Trace
6
Tr1
1, Trace 2,
