Multi-Trace Configurations (NA Mode)
You can display multiple traces on the FieldFox screen.

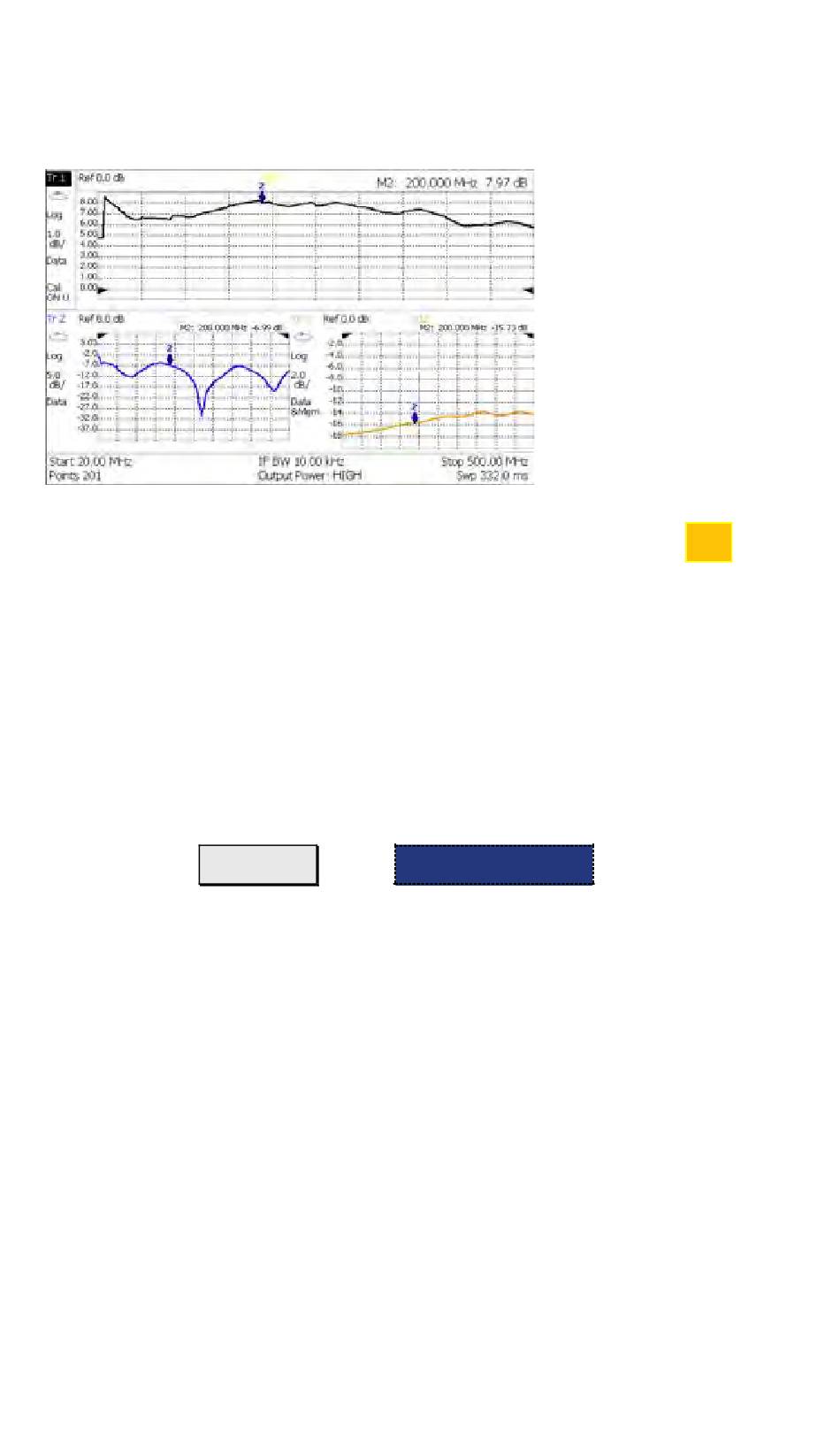

The above image shows a 3-trace configuration. Tr1 is
the ACTIVE trace as indicated by the highlighted Tr1
annotation in the upper left corner.
The Frequency Range, IF BW, Resolution, Averaging, and
Output power is common to all traces. All trace settings,
such as format, markers, and limit lines, are applied to
the ACTIVE trace in the same manner as when a single
trace is present.
To select a multi-trace configuration:
Press Trace 6 then
-
Then choose a multi-trace configuration.
-
Num of Traces
8
