Keysight Technologies N9910XM28-H2A Product Notes

Keysight Technologies
N9910XM28-H2A and N9910XM28-H2N
Product Note

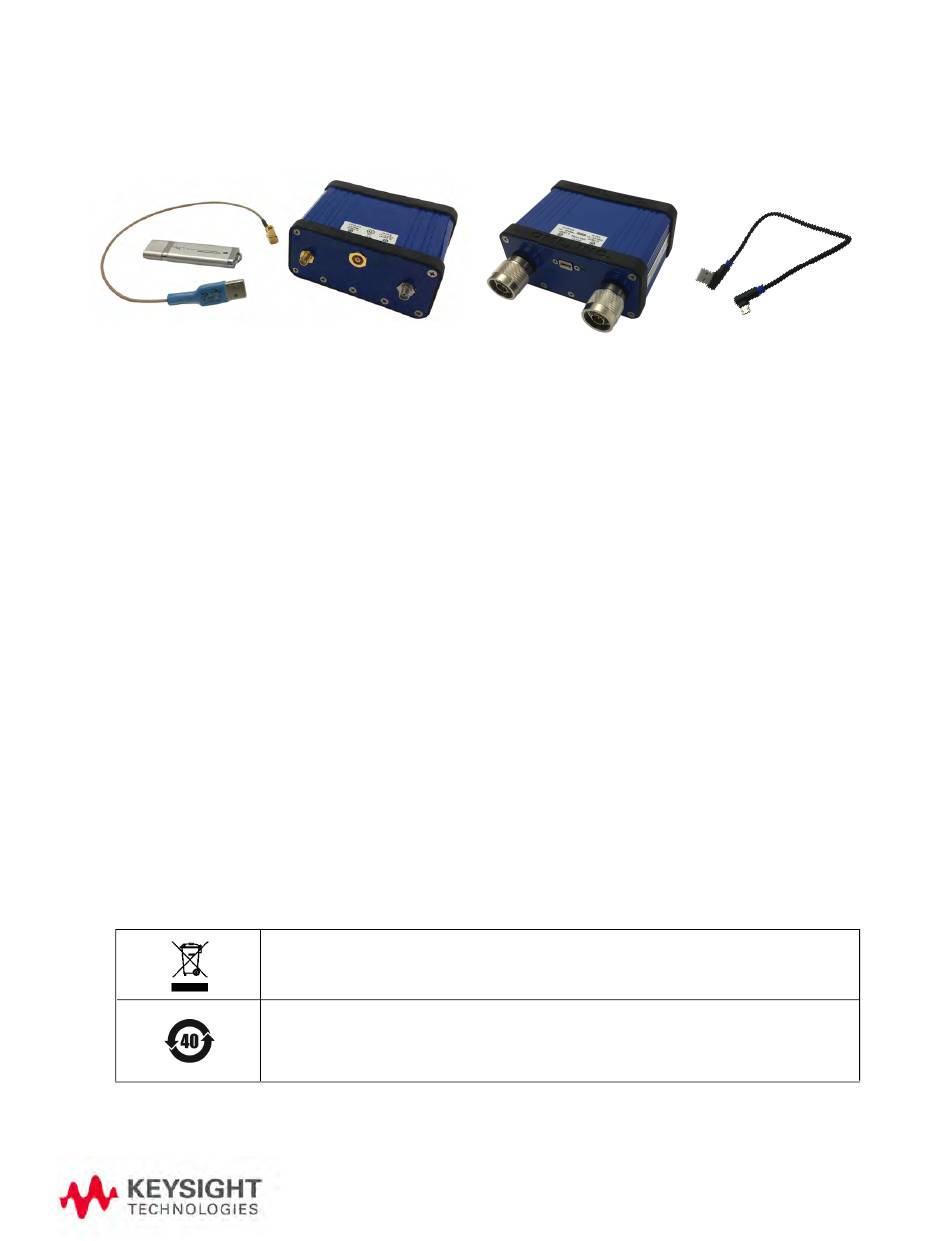

The Keysight N9910XM28-H2A and N9910XM28-H2N are WR28 (24-40 GHz) high
performance x2 harmonic mixer modules from Oleson Microwave Labs. The IF bandwidth is
sufficiently broad to capture data in any of the 5G bands from 24 to 40 GHz. Both models
come with a 2.92 mm (F) input connector. They are designed to be used with the N9917A,
N9917B, N9918A, and N9918B FieldFox models.
Model N9910XM28-H2A has SMA connectors for the IF and LO port connections. Adapter kits
-AK1, -AK2, and -AK3, described on page 2, provide options for connecting this model to the
FieldFox ports. This model comes with a USB to SMB cable to supply power from the FieldFox
to the mixer.
Model N9910XM28-H2N has N-Type connectors for the IF and LO ports. It is designed for
connecting directly to FieldFox models with N-Type port connectors without the need for
adapters. This model comes with a USB to USB mini cable to supply power from the FieldFox
to the mixer.
The product shipment includes the harmonic mixer module with a polycarbonate carrying
case, DC cable, and USB memory stick with data.
OML products are to be returned directly to Oleson Microwave Labs for service, repair, and
calibration. Keysight Technologies does not guarantee the performance of the OML products
or the system performance when connected to a Keysight X-Series spectrum analyzer. Further
information regarding OML harmonic mixers can be found on their website at:
https://www.omlinc.com/images/pdf/MxxHWD/OML-M28H2ADC-K-Datasheet.pdf
For information concerning the operation and connections, reference the standard X-Series
spectrum analyzer documentation with Option EXM.
The N9910XM28 is compliant to the RoHS and WEEE directives.
This WEEE symbol indicates separate collection for electrical and electronic equipment,
mandated under EU law as of August 13, 2005. All electric and electronic equipment are required
to be separated from normal waste for disposal.
China Restricted Product Label. The EPUP (environmental protection use period) number in the
center indicates the time period during which no hazardous or toxic substance elements are
expected to leak or deteriorate during normal use and generally reflects the expected useful life
of the product.
1. The USB correction data provided may not currently be supported in all available SA modes and functionality associated with
the Field Fox. The Field Fox firmware is continuously being updated.
