Summary of Contents for Kemppi WeldForce KPS 3500 MVU

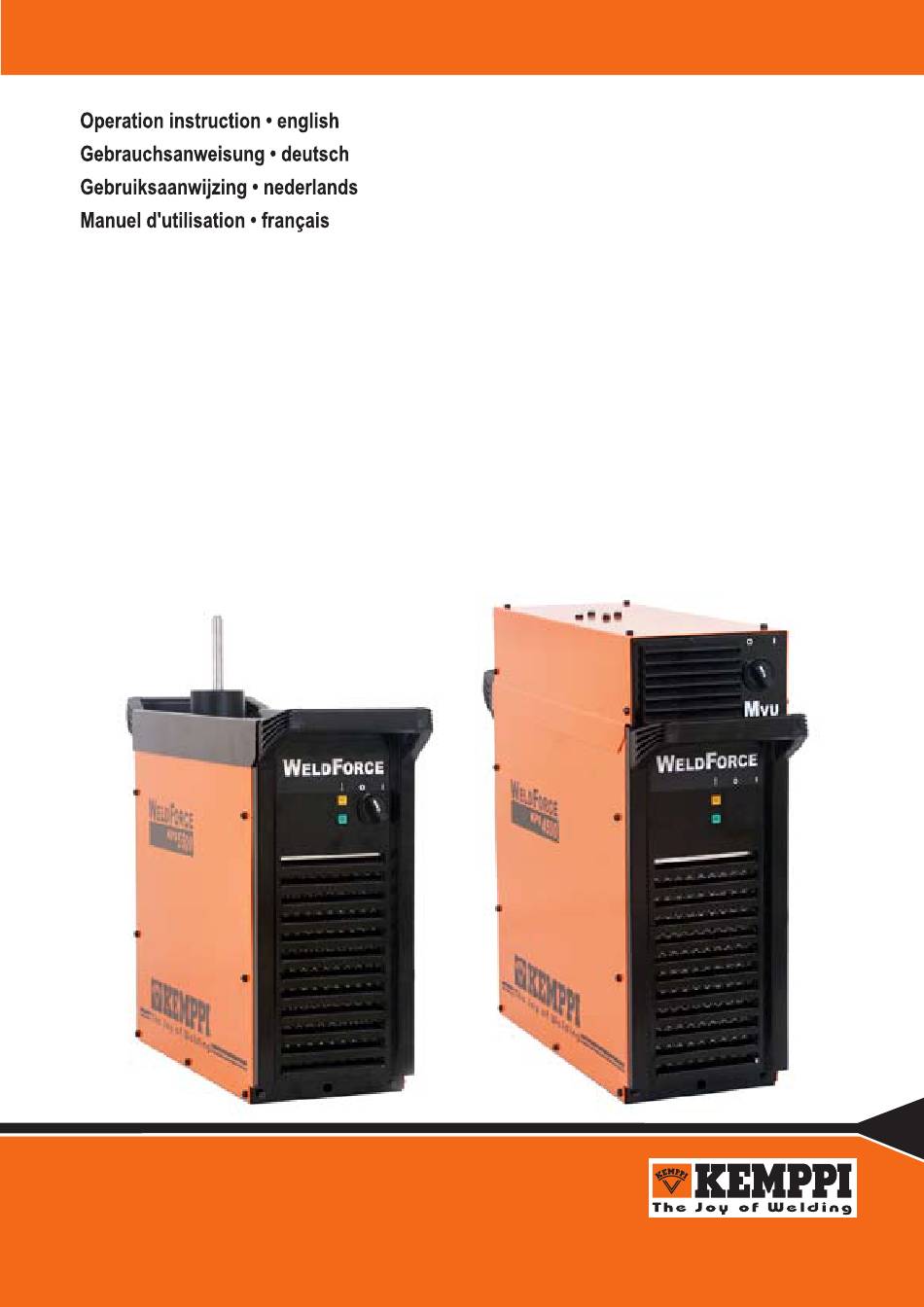

  • Page 1 1931350E 0617 WeldForce kps 3500 kps 3500 MVU kps 4500 kps 4500 MVU kps 5500 kps 5500 MVU...
  • Page 2: Table Of Contents

    6.4. loss of a Phase in the mains suPPly ............. 9 7. dISPOSAL OF ThE mAChINE ................... 10 8. ORdERING NumbERS ....................10 9. TEChNICAL dATA .......................11 10. TERmS OF GuARANTEE ..................12  – Kemppi WeldForce KpS3500, KpS4500, KpS5500, KpS3500mVU, KpS4500mVU, KpS5500mVU / 0606 © Kemppi oy...
  • Page 3: Preface

    1.2. PROduCT INTROduCTION Kemppi WeldForce KPS3500, 4500 ja 5500 are multi-operator power sources designed for demanding professional use. They are suitable for MMA/MIG and pulsed MIG as well as for TIG welding in DC.
  • Page 4: Accessories

    WeldForce KPS3500, WeldForce KPS4500, WeldForce KPS5500 WeldForce KPS3500 MVU, WeldForce KPS4500 MVU, WeldForce KPS5500 MVU Extension cable for remote control Earth cable MMA welding cable R10, Remote control devices 4 – Kemppi WeldForce KpS3500, KpS4500, KpS5500, KpS3500mVU, KpS4500mVU, KpS5500mVU / 0606 © Kemppi oy...
  • Page 5: Operation Safety

    Class A equipment is not intended for use in residential location where the electrical power is provided by the public low-voltage supply system. © Kemppi oy Kemppi WeldForce KpS3500, KpS4500, KpS5500, KpS3500mVU, KpS4500mVU, 5500KpSmVU / 0606 – 5...
  • Page 6: Installation

    2.2. CONNECTION TO ThE mAINS SuPPLy Kemppi WeldForce power sources are delivered equipped with 5 m mains cable without plug. If local electricity regulations of operating country are stating otherwise, the mains cable should be replaced in conformity with the local regulations.
  • Page 7: Welding And Earth Cables

    The cooling fan will continue to run and cool the machine down and when the lamp is off the machine is ready to weld. © Kemppi oy Kemppi WeldForce KpS3500, KpS4500, KpS5500, KpS3500mVU, KpS4500mVU, 5500KpSmVU / 0606 – ...
  • Page 8: Operation Of Cooling Fan

    – On no-load fan is started in intervals of approx. half an hour for minute’s time. 4. mANuAL mETAL ARC wELdING The Kemppi WeldForce power source can be used in electrode welding by connecting a Kemppi WeldForce KWF200, KWF300 wire feeder to it. The power source can be made suitable for...
  • Page 9: Operation Disturbances

    6. OPERATION dISTuRbANCES In case of problems contact the Kemppi works in Lahti, Finland, or your local Kemppi dealer. Check the maintenance objects before the machine is sent to the Service Workshop.
  • Page 10: Disposal Of The Machine

    5 m - 50 mm² 6184501 Cable for MMA welding 5 m - 70 mm² 6184701 6185409 Remote controlled interconnecting cable 10 m 6185481 T400 6185267 6185264 P40L 6185264L 10 – Kemppi WeldForce KpS3500, KpS4500, KpS5500, KpS3500mVU, KpS4500mVU, KpS5500mVU / 0606 © Kemppi oy...
  • Page 11: Technical Data

    6,3 a delayed Voltage supply for cooling unit 1~, 400 v / 250 va 1~, 400 v / 250 va 1~, 400 v / 250 va © Kemppi oy Kemppi WeldForce KpS3500, KpS4500, KpS5500, KpS3500mVU, KpS4500mVU, 5500KpSmVU / 0606 – 11...
  • Page 12: Terms Of Guarantee

    Guarantee repairs must be carried out only by an Authorised Kemppi Service Agent. Packing, freight and insurance costs to be paid by orderer. The guarantee is effected on the date of purchase. Verbal promises which do not comply with the terms of guarantee are not binding on guarantor.
  • Page 13 Telefax (08) 590 823 94 e-mail: sales.se@kemppi.com Tel (06033) 88 020 Telefax (06033) 72 528 KEMPPI NORGE A/S e-mail:sales.de@kemppi.com Postboks 2151, Postterminalen KEMPPI SP. z o.o. N – 3103 TØNSBERG Ul. Piłsudskiego 2 NORGE 05-091 ZA¸BKI Tel 33 34 60 00 Poland...
