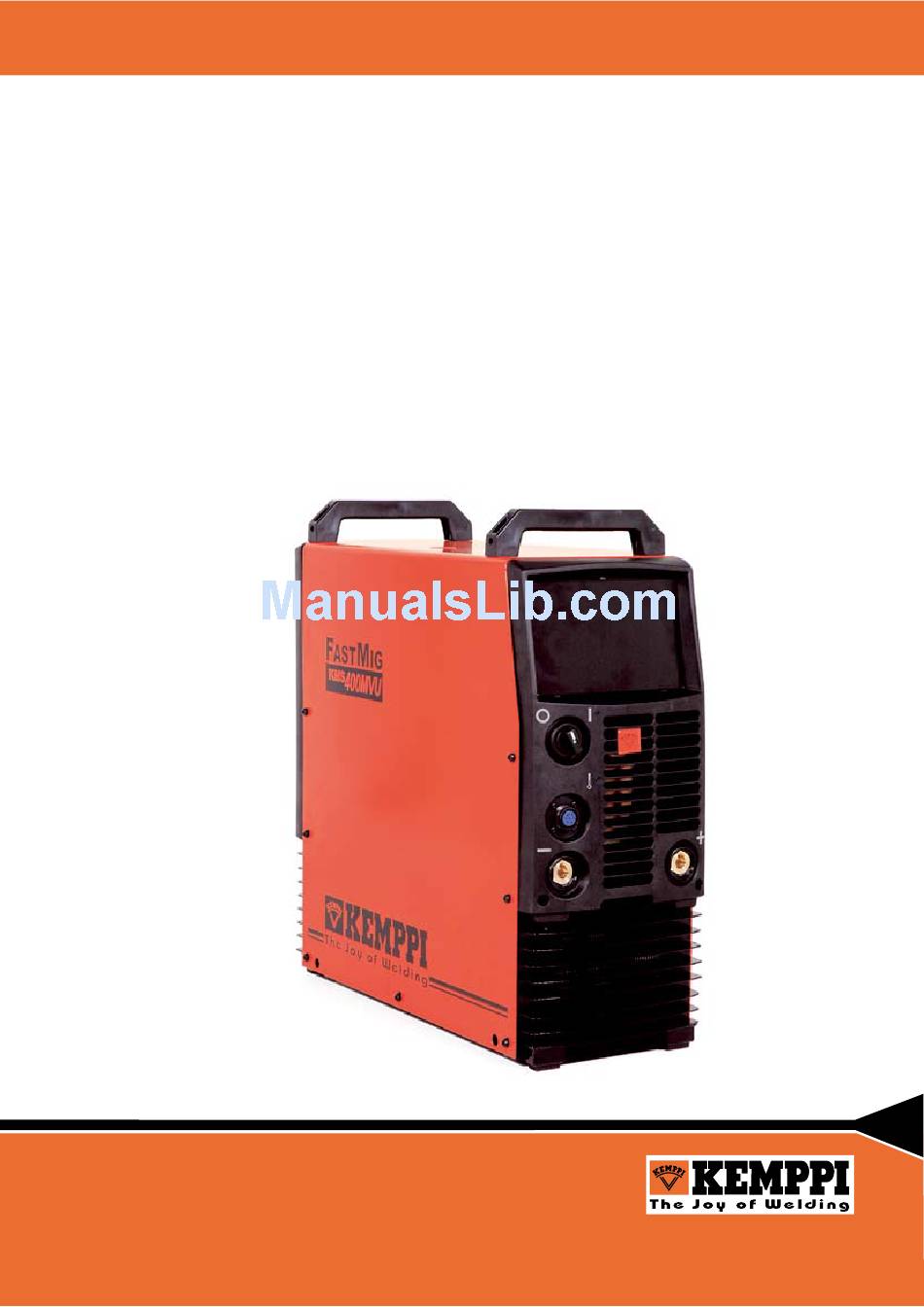

- Page 1 Operating instructions • english 1905300 Bruksanvisning • norsk 0647 FastMig™ KMS 400 MVU...
-
Page 2: Table Of Contents
6.4. loss of a Phase in the mains suPPly ............. 9 7. dISPOSAL OF ThE mAChINE ..................9 8. ORdERING NumbERS ....................10 9. TEChNICAL dATA .......................11 10. TERmS OF GuARANTEE ..................12 – Fastmig™ Kms 400 mVU / 0647 © Kemppi oy... -
Page 3: Preface
For further information on Kemppi products please contact us or your nearest Kemppi distributor. The specifications and designs presented in this manual are subject to change without prior notice. -
Page 4: Accessories
You can use control device also for control of MMA current. 1.3.2. Cables FastMig™ KMS 400 MVU Extension cable for remote control Earth cable MMA welding cable R10, Remote control devices 4 – Fastmig™ Kms 400 mVU / 0647 © Kemppi oy... -
Page 5: Operation Safety
This equipment’s electromagnetic compatibility (EMC) is designed for use in an industrial environment. Class A equipment is not intended for use in residential location where the electrical power is provided by the public low-voltage supply system. © Kemppi oy Fastmig™ Kms 400 mVU / 0647 – ... -
Page 6: Installation
(05). The phase conductors of the cable are coupled to connectors L1, L2 and L3. The earth protection coloured green-yellow is coupled to connector. If you are using 5-lead cable, do not connect neutral conductor. 6 – Fastmig™ Kms 400 mVU / 0647 © Kemppi oy... -
Page 7: Welding And Earth Cables
– The fan is started for a moment when main switch is placed into position I. – The fan will start during welding as the machine heats up and it will run for 1 to 10 minutes after the welding has stopped. © Kemppi oy Fastmig™ Kms 400 mVU / 0647 – 7... -
Page 8: Operation Of Cooling Fan
– Do not use pressure washing device. – Only authorised electrician shall carry out repairs to the machines. 5.3. REGuLAR mAINTENANCE Kemppi Service Workshops make regular maintenance according to agreement. The major points in the maintenance procedure are listed as follows: – Cleaning of the machine –... -
Page 9: Operation Disturbances
6. OPERATION dISTuRbANCES In case of problems contact the Kemppi works in Lahti, Finland, or your local Kemppi dealer. Check the maintenance objects before the machine is sent to the Service Workshop. 6.1. OPERATION OF ThE OVERLOAd PROTECTION Yellow pilot lamp H12 of thermal protection is lit when thermostat has operated due to overheating of machine. -
Page 10: Ordering Numbers
5 m, 50 mm² 6184501 Cable for MMA welding 5 m, 70 mm² 6184701 6185409 Remote controlled interconnecting cable 10 m 6185481 Transport unit PM 500 6185291 Gun holder GH 30 6256030 10 – Fastmig™ Kms 400 mVU / 0647 © Kemppi oy... -
Page 11: Technical Data
-20 ... +40 ºC degree of protection iP 23 s External dimensions length 590 mm width 230 mm height 580 mm weight 49 kg Voltage supply for auxiliary devices 24 v dC © Kemppi oy Fastmig™ Kms 400 mVU / 0647 – 11... -
Page 12: Terms Of Guarantee
Guarantee repairs must be carried out only by an Authorised Kemppi Service Agent. Packing, freight and insurance costs to be paid by orderer. The guarantee is effected on the date of purchase. Verbal promises which do not comply with the terms of guarantee are not binding on guarantor. - Page 13 Telefax (08) 590 823 94 e-mail: sales.se@kemppi.com Tel (06033) 88 020 Telefax (06033) 72 528 KEMPPI NORGE A/S e-mail:sales.de@kemppi.com Postboks 2151, Postterminalen KEMPPI SP. z o.o. N – 3103 TØNSBERG Ul. Piłsudskiego 2 NORGE 05-091 ZA¸BKI Tel 33 34 60 00 Poland...
