- Page 1 Operation instructions • english 1922010E Gebrauchsanweisung • deutsch 0543 Gebruiksaanwijzing • nederlands Manuel d’utilisation • français KEMPOWELD 3200 3200W...
-
Page 2: Table Of Contents
1.4. KEMPOWELD PANELS ....................4 1.4.1. OPERATION CONTROL AND CONNECTORS ..........4 1.4.2. PARTS OF COOLING UNITKEMPOWELD 3200W ........4 1.4.3. REAR PLATE OF KEMPOWELD 3200, 3200W ..........4 1.5. WIRE FEEDER PANELS ..................... 5 1.5.1. FRONT PANEL ....................5 1.5.2. -
Page 3: Preface

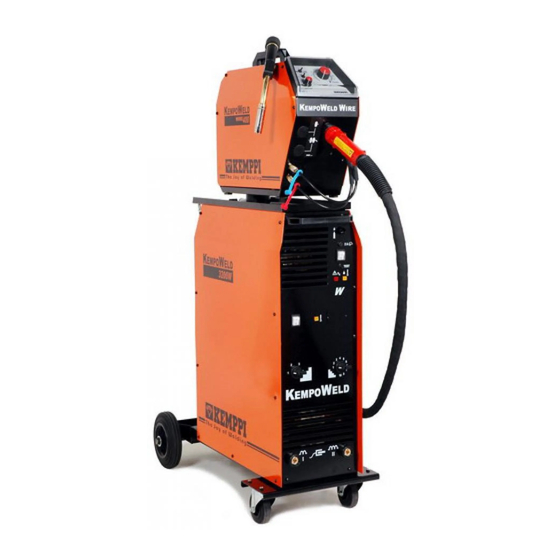

1.2. PRODUCT INTRODUCTION The power sources Kempoweld 3200 and 3200W with wire feeder unit WIRE 400 makes together 320 A MIG welding equipment, which is suitable for heavy industrial use. To the product range belong in addition also the power sources Kempoweld 4200, 4200W and 5500W. -
Page 4: Kempoweld Panels
1.4.3. Rear plate of Kempoweld 3200, 3200W Inlet of mains cable Fuse of auxiliary transformer (8 A delayed) Welding current connector for wire feeder unit (+ pole) Control connector for wire feeder unit 4 – KEMPOWELD 3200, 3200W / 0543 © KEMPPI OY... -
Page 5: Wire Feeder Panels
© KEMPPI OY KEMPOWELD 3200, 3200W / 0543 – 5... -
Page 6: Installation
This equipment’s electromagnetic compatibility (EMC) is designed for use in an industrial environment. Class A equipment is not intended for use in residential location where the electrical power is provided by the public low-voltage supply system. 6 – KEMPOWELD 3200, 3200W / 0543 © KEMPPI OY... -
Page 7: Welding And Return Current Cables
On the rear plate of the power source the fuse (F1) 8 A delayed is the short-circuit protection. Use the fuse size and type according to markings. Damage caused by a wrong type fuse is not covered by the guarantee. If the fuse is blowing again, send the unit to service. © KEMPPI OY KEMPOWELD 3200, 3200W / 0543 – 7... -
Page 8: Adjustment For Arc Roughness
2.4.6. Operation of cooling fan The cooling fan on the rear plate of the Kempoweld 3200 equipment is started and stopped according to use. The cooling fan is controlled by the gun trigger and control circuits. The cooling fan is started after ca. 15 s after weld start and stopped after ca. -
Page 9: Operation Switches
The water circulation gets automatically started, when you are pressing on the gun trigger. The post-circulation of water will continue for ca. 5 - 7 min. after the weld end. The time is always counted from the latest trigger release. © KEMPPI OY KEMPOWELD 3200, 3200W / 0543 – 9... -
Page 10: Operation Disturbances
3. After ca. 5 s use twist the screw carefully until the pilot lamp is switched off. 4. Check the result by welding. 5. If the adjustment and checkings do not eliminate the disturbance, take contact with the Authorized Kemppi repair workshop. -
Page 11: Disposal Of The Machine
Do not use pressure washing device! Only authorized electrician shall carry out repairs to the machines. Regular maintenance Kemppi service repair workshops make regular maintenance according to agreement. The major points in the maintenance procedure are listed as follows: – Cleaning of the machine –... - Page 12 Liquid-cooled interconnection cables Mounting cables for short distance: KW 50-1.5-WH 6260352 Interconnection cables for long distance: KW 50-5-WH 626035401 KW 50-10-WH 626035601 Return current cable 5 m - 50 mm² 6184511 12 – KEMPOWELD 3200, 3200W / 0543 © KEMPPI OY...
-
Page 13: Technical Data
External dimensions lenght 990 mm 990 mm width 530 mm 530 mm height 880 mm 1090 mm Weight 106 kg 118 kg The products meet conformity requirements for CE marking. © KEMPPI OY KEMPOWELD 3200, 3200W / 0543 – 13... -
Page 14: Terms Of Guarantee
8. TERMS OF GUARANTEE Kemppi Oy provides a guarantee for products manufactured and sold by them if defects in manufacture and materials occur. Guarantee repairs must be carried out only by an Authorised Kemppi Service Agent. Packing, freight and insurance costs to be paid by orderer. The guarantee is effected on the date of purchase. Verbal promises which do not comply with the terms of guarantee are not binding on guarantor. - Page 15 Telefax (08) 590 823 94 e-mail: sales.se@kemppi.com Tel (06033) 88 020 Telefax (06033) 72 528 KEMPPI NORGE A/S e-mail:sales.de@kemppi.com Postboks 2151, Postterminalen KEMPPI SP. z o.o. N – 3103 TØNSBERG Ul. Piłsudskiego 2 NORGE 05-091 ZA¸BKI Tel 33 34 60 00 Poland...
