Wen 4212T Instruction Manual

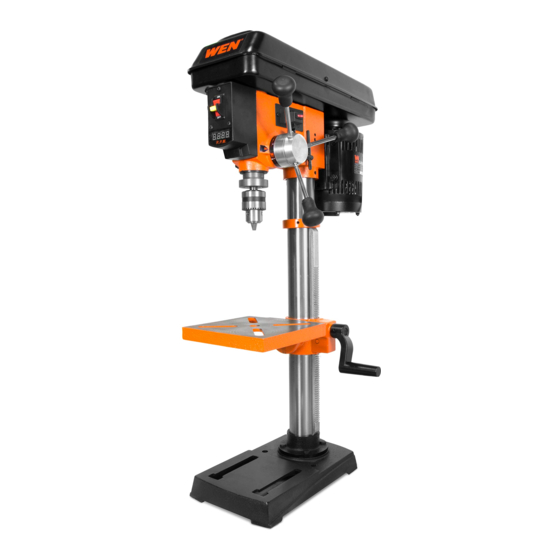

10" variable speed drill press
Hide thumbs
Table of Contents

Advertisement

Quick Links

MODEL 4212, 4212T
10" VARIABLE SPEED
DRILL PRESS
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-800-232-1195 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4212T and is the answer not in the manual?

Questions and answers

Related Manuals for Wen 4212T

Summary of Contents for Wen 4212T

  • Page 1 1-800-232-1195 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

  • Page 2: Table Of Contents

    CONTENTS WELCOME Introduction ..................... 3 Specifications ....................3 SAFETY General Safety Rules ..................4 Drill Press Safety Warnings ................6 Electrical Information ..................8 BEFORE OPERATING Know Your Drill Press ..................9 Assembly & Adjustments ................10 OPERATION & MAINTENANCE Operation ....................... 18 Maintenance ....................21 Troubleshooting Guide ...................

  • Page 3: Welcome

    INTRODUCTION Thanks for purchasing the WEN Drill Press. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this operator’s manual and all the labels affixed to the tool.

  • Page 4: Safety

    GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”...
  • Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”...

  • Page 6: Drill Press Safety Warnings

    DRILL PRESS SAFETY WARNINGS WARNING: Do not let comfort or familiarity with the product replace strict adherence to product safety rules. Failure to follow the safety instructions may result in serious personal injury. 1. TOOL PURPOSE. This drill press is designed to drill through metal wood, plastic, and tiles. Drilling through other materials could result in fire, injury, or damage to the workpiece.
  • Page 7 SPECIFIC RULES FOR THE DRILL PRESS DRILL PRESS SAFETY WARNINGS 12. DRILLING THE WORKPIECE. • Allow spindle to reach full speed before drilling the workpiece. • Never start the machine with the drill bit pressed against the workpiece. • Adjust the table or depth stop to avoid drilling into the table. •...

  • Page 8: Electrical Information

    ELECTRICAL INFORMATION GROUNDING INSTRUCTIONS IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least resistance for an electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and a grounding plug.

  • Page 9: Before Operating

    KNOW YOUR DRILL PRESS TOOL PURPOSE Drill presses are mainly used to drill clean, precise cylindrical holes into workpieces or enlarge existing holes. You may also find other uses for your drill press such as reaming, countersinking, counterboring, tapping, etc. Refer to the diagram below and on page 10 to become familiarized with the parts and controls of your drill press.

  • Page 10: Assembly & Adjustments

    ASSEMBLY & ADJUSTMENTS UNPACKING With the help of a friend or trustworthy foe, carefully remove the drill press from the packaging. Make sure to take out all contents and accessories. Do not discard the packaging until the drill press is completely assembled.
  • Page 11 ASSEMBLY & ADJUSTMENTS WARNING: Do not plug in or turn on the tool until it is fully assembled according on the instructions. Failure to follow the safety instructions may result in serious personal injury. ATTACHING COLUMN TO BASE (FIG. 3) 1.
  • Page 12 ASSEMBLY & ADJUSTMENTS DRILL PRESS HEAD TO COLUMN (FIG. 7) CAUTION: The drill press head is heavy. To avoid injury, two people should lift it into position. 1. Carefully lift the drill press head assembly (Fig. 7 - 1) and position it over the column (Fig.
  • Page 13 ASSEMBLY & ADJUSTMENTS INSTALL THE CHUCK (FIG. 11) 1. Inspect and clean the taper hole in the chuck and the spindle. Remove all grease, coatings, and particles from the chuck and chuck arbor surfaces with a clean cloth. 2. Open the chuck jaws by manually turning the chuck barrel clockwise.
  • Page 14 ASSEMBLY & ADJUSTMENTS TILT THE TABLE (FIG. 13) 1. Loosen the bevel lock bolt (under table) with a suitable socket or wrench (not included). 2. Tilt the table to the desired angle, using the bevel scale (1) as a basic guide. 3.
  • Page 15 ASSEMBLY & ADJUSTMENTS SQUARING THE TABLE TO THE DRILL BIT (FIG. 14) 1. Insert a 3" drill bit (Fig. 14-1) into the chuck (Fig. 14-2) and tighten. 2. Raise and lock the table (Fig. 14 - 3) about 1" from the end of the drill bit.
  • Page 16 ASSEMBLY & ADJUSTMENTS SPINDLE RETURN SPRING (FIG. 16A) The spindle is equipped with an auto-return mechanism. The main components are a spring and a notched housing. The spring was properly adjusted at the factory and should not be readjusted unless absolutely necessary. 1.
  • Page 17 ASSEMBLY & ADJUSTMENTS DRILL PRESS ON/OFF SWITCH (FIG. 17) 1. To turn the drill press ON, insert the yellow safety key (Fig. 17-1) into the switch housing (Fig. 17 - 2). As a safety feature, the switch cannot be turned ON without the safety key. 2.

  • Page 18: Operation & Maintenance

    OPERATION LASER LINE ON/OFF SWITCHES (FIG. 18) The laser switch (Fig. 18 - 1) is located on the left hand side of the drill press. 1. Pull the tab located below the laser switch and lift up the laser switch cover (Fig. 18 - 2). 2.
  • Page 19 OPERATION ADJUST THE DRILLING DEPTH (FIG. 19) 1. Loosen the depth scale knob and turn the depth scale ring to the desired depth. 2. Lock the scale ring in place by tightening the depth knob. This will stop the bit once it reaches a certain depth. Fig.
  • Page 20 OPERATION FEEDING THE DRILL BIT • Pull down on the feed handles with only enough force to allow the drill bit to cut. • Feeding too rapidly might stall motor, cause the belt to slip, damage the workpiece, or break the drill bit. •...

  • Page 21: Maintenance

    WARNING: Any attempt to repair or replace electrical parts on this tool may be hazardous. Servicing of the tool must be performed by a qualified technician. When servicing, use only identical WEN replacement parts. Use of other parts may be hazardous or induce product failure. ROUTINE INSPECTION Before each use, inspect the general condition of the tool.

  • Page 22: Troubleshooting Guide

    TROUBLESHOOTING GUIDE WARNING: Stop using the tool immediately if any of the following problems occur. Repairs and replacements should only be performed by an authorized technician. For any questions, please contact our customer service at (800) 232-1195, M-F 8-5 CST or email us at techsupport@wenproducts.com.
  • Page 23 TROUBLESHOOTING GUIDE WARNING: Stop using the tool immediately if any of the following problems occur. Repairs and replacements should only be performed by an authorized technician. For any questions, please contact our customer service at (800) 232-1195, M-F 8-5 CST or email us at techsupport@wenproducts.com.

  • Page 24: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST...
  • Page 25 EXPLODED VIEW & PARTS LIST Part No. Description Qty. Part No. Description Qty. 4212B-001 Retaining plate 4212B-038 Battery housing 4212B-002 Set screw, M8x12 4212B-039 Handle seat 4212B-003 4212B-040 Spring pin, 5-15 4212B-004 Ball bearing, 6907Z 4212B-041 Feed shaft 4212B-005 Elastic ring 4212B-042 Depth locking knob Spindle movable pul-...
  • Page 26 EXPLODED VIEW & PARTS LIST Part No. Description Qty. Part No. Description Qty. 4212B-078 Column 4212B-095 Head Socket head cap 4212B-096 Flat washer, 8mm 4212B-079B screw, M8x25 4212B-097 Motor plate 4212B-080 Column base 4212B-098 Spring washer, 8mm 4212B-081 Base 4212B-099 Hex bolt, M8x10 4212B-082 Quill set screw, M8x20...

  • Page 27: Warranty Statement

    GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase. Ninety days for all WEN products if the tool is used for professional or commercial use.
  • Page 28 THANKS FOR REMEMBERING V. 2022.01.13...

This manual is also suitable for:

4212
