4005911
Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years
of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings,
and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of
safe, reliable service.
NOTICE: Please refer to wenproducts.com for the most up-to-date instruction manual.

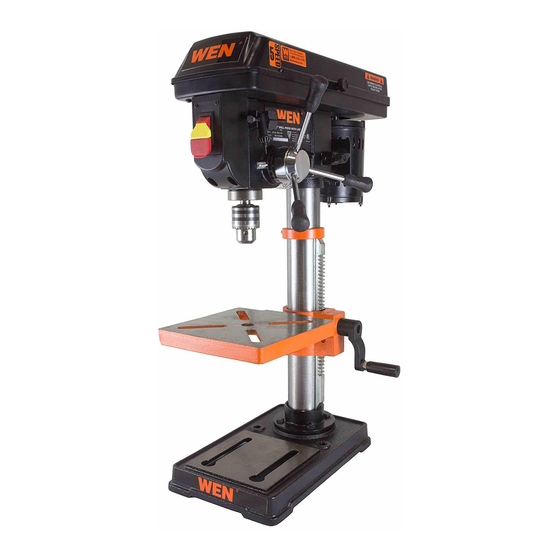

10" DRILL PRESS
WITH LASER CROSSHAIR
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM
bit.ly/wenvideo
(M-F 8AM-5PM CST)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wen 4210

Summary of Contents for Wen 4210

  • Page 1 4005911 IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions.

  • Page 2: Table Of Contents

    Electrical Information Know Your Drill Press Assembly and Adjustments Maintenance Operation Troubleshooting Exploded View and Parts List Warranty TECHNICAL DATA Model Number: 4210 Motor: 120V, 60Hz, 3.2A Chuck Capacity: 1/2 inch Spindle Stroke: 2-1/2 inches Spindle Taper: JT33 Speeds: 600, 1100, 1700, 2400, 3100 RPM...

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES Safety is a combination of common sense, staying alert and knowing how your item works. SAVE THESE SAFETY INSTRUCTIONS. WARNING: To avoid mistakes and serious injury, do not plug in your tool until the following steps have been read and understood. 1.

  • Page 4: Specific Safety Rules For The Drill Press

    GENERAL SAFETY RULES 14. NEVER STAND ON A TOOL. Serious injury could result if the tool tips or is accidentally hit. DO NOT store anything above or near the tool. 15. DO NOT OVERREACH. Keep proper footing and balance at all times. Wear oil-resistant rubber-soled foot- wear.

  • Page 5: Electrical Information

    SPECIFIC RULES FOR THE DRILL PRESS 10. Always stop the drill before removing scrap pieces from the table. 11. Use clamps or a vise to secure a workpiece to the table. This will prevent the workpiece from rotating with the drill bit.
  • Page 6 ELECTRICAL INFORMATION GUIDELINES FOR USING EXTENSION CORDS Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.

  • Page 7: Know Your Drill Press

    KNOW YOUR DRILL PRESS Electrical Cord Rack Motor Mount Table Adjustment Handle Housing Cover Column Mount ON/OFF Switch Base Light ON/OFF Switch Table Spindle Return Spring Light Bulb Chuck Spindle Housing Knob Depth Adjustment Lock Speed Chart Depth Adjustment Guide Front (Spindle) Pulley Table Bevel Guide Drive (Motor) Pulley...

  • Page 8: Assembly And Adjustments

    ASSEMBLY AND ADJUSTMENTS UNPACKING Unpack the drill press and all of its parts. Compare against the list below. Do not discard the carton or any packaging until the drill press is completely assembled. To protect the drill press from moisture, a protective coating has been applied to the machine’s surfaces. Remove this coating with a soft cloth moistened with kerosene or WD-40®.
  • Page 9 ASSEMBLY AND ADJUSTMENTS   ATTACHING COLUMN ASSEMBLY TO BASE 1. Place the column tube on the base, aligning the column support holes to the base holes. 2. Install a hex head bolt in each column support hole and tighten bolts using an adjustable wrench (not included).
  • Page 10 ASSEMBLY AND ADJUSTMENTS   DRILL PRESS HEAD TO COLUMN (Fig. E) CAUTION: The drill press head is heavy. To avoid injury, two people should lift it into position. 1. Carefully lift the drill press head assembly and position it over the column (Fig.
  • Page 11 ASSEMBLY AND ADJUSTMENTS   INSTALL THE CHUCK 1. Unplug your drill press before you begin installing the chuck. Lower the drill press table and place a cloth on it to protect the chuck if it is dropped. 2. Wipe the chuck and spindle with a clean rag. Do not use solvents yet, these will be used when you are ready to set it into place.
  • Page 12 ASSEMBLY AND ADJUSTMENTS INSTALLING LASER BATTERIES (PRE-INSTALLED) 1. Turn off the drill laser. 2. Pull the tab located below the laser switch and lift up the laser switch cover (Fig. J).   3. Install two AAA batteries into the battery slots and close the switch cover (Fig. K).  ...
  • Page 13 ASSEMBLY AND ADJUSTMENTS   ROTATE THE TABLE 1. Loosen the table locking handle and turn the table around the col- umn to the desired position. NOTE: The rack should rotate around the column with the table sup- port bracket. If the rack binds and does not rotate, slightly loosen the set screw in the rack collar.
  • Page 14 3. Lock the scale ring in place by tightening the depth lock- ing knob. SPEED ADJUSTMENT For a video demonstration using the WEN 8-Inch Drill Press, visit http://bit.ly/1LGcLIb Fig. P   1. To change to another one of the five available speeds, open the belt housing cover and loosen the belt tension locking knob found circled in Fig.
  • Page 15 ASSEMBLY AND ADJUSTMENTS ADJUSTING THE LASER (Fig. R) WARNING: Do not stare directly at the laser beam. Please observe all safety rules. • Never aim the beam at a person or an object other than the work- piece. • Do not project the laser beam into the eyes of others. •...

  • Page 16: Maintenance

    ASSEMBLY AND ADJUSTMENTS REPLACING THE BELT WARNING: Disconnect the drill press from the power source before replacing the belt. 1. Open the housing cover. Loosen the belt tension locking knob (Fig. T). 2. Remove the belt from the housing cover if it is broken. If it is not broken, but is too stretched to operate correctly, work the belt off the drive (motor) pulley.

  • Page 17: Operation

    OPERATION DRILL PRESS ON/OFF SWITCH (Fig. U) 1. To turn the drill press ON, insert the yellow safety key (Fig. U - 1) into the switch housing (Fig. U - 2). As a safety feature, the switch cannot be turned ON without the safety key.
  • Page 18 OPERATION DRILLING SPEEDS There are a few important factors to keep in mind when determining the best drilling speed: • Material type • Hole size • Drill bit or cutter type • Quality desired Smaller drill bits require greater speed than larger drill bits. Softer materials require greater speed than harder materials.

  • Page 19: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSES SOLUTIONS Noisy operation 1) Incorrect belt tension 1) Adjust the belt tension (See REPLACE THE 2) Dry spindle BELT section) 3) Loose spindle pulley 2) Lubricate the spindle 4) Loose motor pulley 3) Tighten the set screws on the side of the spindle pulley 4) Tighten the set screws on the side of the mo- tor pulley...

  • Page 20: Exploded View And Parts List

      EXPLODED VIEW & PARTS LIST...
  • Page 21 EXPLODED VIEW & PARTS LIST Part No. Description Qty. Part No. Description Qty. 4210B-001 V-belt 4210B-036 Switch Box 4210B-002 Motor Pulley 4210B-037 Switch Plate 4210B-003 Set Screw 4210B-038 Thread Forming Screw 4210B-004 Power Cord 4210B-039 Switch 4210B-005 Spindle Pulley 4210B-040 Pan Head Screw 4210B-006 Set Screw...
  • Page 22 EXPLODED VIEW & PARTS LIST Part No. Description Qty. 4210B-071 Motor Support 4210B-072 Hex Nut 4210B-073 Flat Washer 4210B-074 Hex Head Bolt 4210B-075 Motor 4210B-076 Lock Washer 4210B-077 Chuck Key Seat 4210B-078 Pan Head Screw 4210B-079 Flat Washer 4210B-080 Hex Nut 4210B-081 Hex Nut 4210B-082...

  • Page 23: Warranty

    LIMITED TWO YEAR WARRANTY WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN con- sumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase.
  • Page 24 THANKS FOR REMEMBERING...
