Savant SmartControl 3 Quick Reference Manual page 2

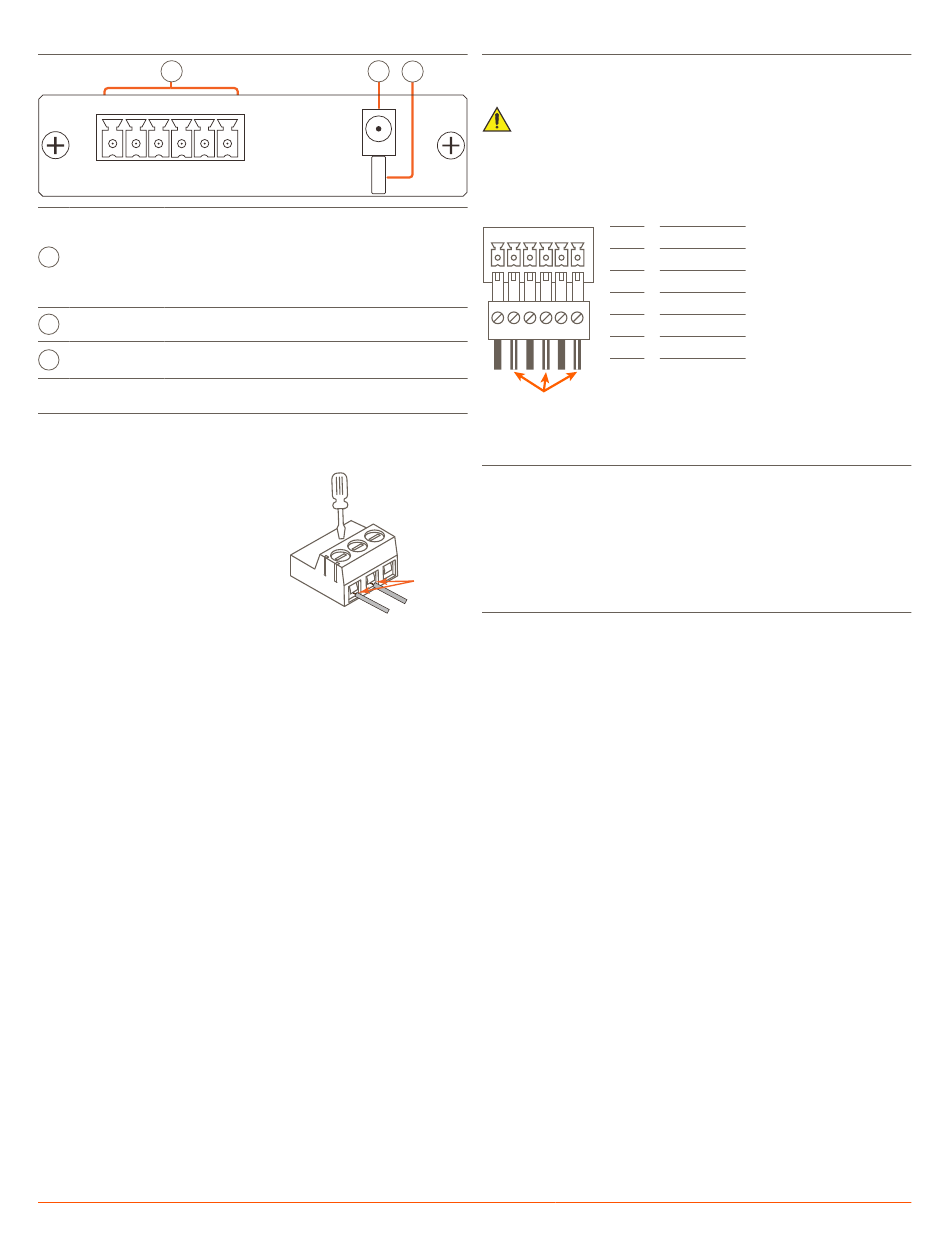

Rear Panel
A
- + - + - + 1 2 3
Used to send IR signals to control devices with
an IR input or IR receiver via an IR flasher (5V
tolerant only).
A
IR
Before making connections, see the IR Wiring
section for important precautions regarding IR
functionality.
B
Input Power 5V DC 1.2A - Connect to included power supply.
Use with included cable tie to secure power
C
Cable Lance
supply connection.
Making Connections
1. Remove from power if power is applied.
2. Pull to remove the terminal block from the rear of the controller.
3. With a small flat bladed screwdriver,
turn the screws on the top of
connector counterclockwise until
the silver crimps in the front of the
connector opens enough to slide the
wire(s) into the square slots.
4. Strip back the insulation on each of
the wires ¼ inch. Insert the stripped
wires into their proper ports. Do not
allow more than 1/8 inch of bare wire
exposed.
5. Turn the screws clockwise until the screw tightens around the wire.
Tug on the wire a bit to verify the wires are installed securely.
6. Continue until all wires are installed.
7. Repeat steps 3 - 5 for any additional IR devices.
8. Plug terminal block back into the rear of the controller.
9. Reapply power.
SSC-W003I Quick Reference Guide | 009-1504-02
Copyright © 2021 Savant Systems, Inc. | 211207
B C
5 VDC
-IR
< 1/8 inch
bare wire
exposed
IR Wiring
IR connections are made using the 6-pin screw down plug-in type
connector included with each SSC-W003I controller. This connector
plugs into the connection on the rear of the controller.
IMPORTANT! IR Wiring Precuations
–
Ensure all IR emitters are within 15 feet (4.6 meters) from the
controller's location.
–
Use of 3rd party flashing IR emitters with Talk Back is not
recommended. These types of emitters can draw voltage away
from the IR signal that can degrade IR performance.
1 2 3
- + - + - +
PIN 1
PIN 2
PIN 3
1 2 3 4 5 6
PIN 4
PIN 5
PIN
Use White Stripe
for Positive (+)
Connecting to a Wireless Network
To provision the SSC-W003I controller onto a local network, one of the
following methods can be used:
– SmartConnect Application – da Vinci 8.4 or later.
– Embedded Web UI – All da Vinci builds.
Both methods are described in the SmartControl 3 Wi-Fi Controller
[SSC-W003I-01] Deployment Guide.
Additional Documentation
Additional Documentation is available on the
Community.
– SmartControl 3 Wi-Fi Controller [SSC-W003I-01] Deployment
Guide (009-1518-xx)
– SmartConnect Software [SCA-CONF, SCA-CONFL] Reference Guide
(009-1046-xx)
– SmartControl 3 SSC-W003I Troubleshooting Guide.
2 of 2
IR 1-
IR 1+
IR 2-
IR 2+
IR 3-
6 IR 3+
