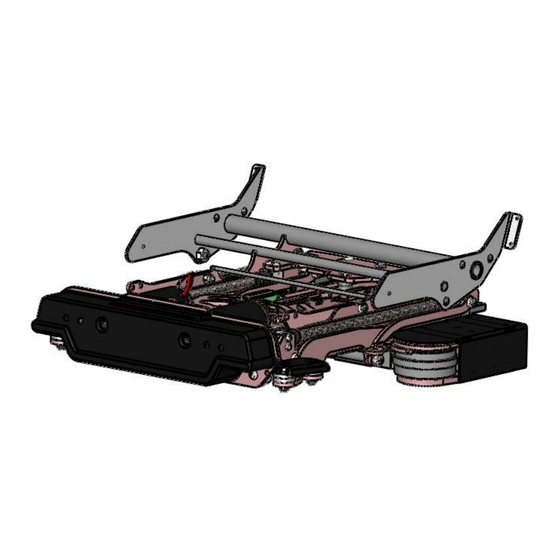

- Page 1 LINK INSTALLATION MANUAL LK-TOY11CL TOYOTA SIENNA 2011 & UP DRIVER SIDE CENTER...
- Page 2 We have prepared quick, easy and to the point tutorial videos imbedded into the software. Take a moment and watch the video that shows all the features of the tablet. To do this, open the LINK IT app and tap on ‘INFO’.
- Page 3 KIT LINK TOYOTA SIENNA 2011 + ITEM PART NUMBER DESCRIPTION -CENTRAL- LK000L-01 Short Model LINK -Left- LK-UNI-305L 305 Top Bearing Plate -Left- PRD 337-213P Button head socket cap screw Zinc Plated 5/16-18 x 3/4 PRD 192-141 Spring Tensions Pin 3/16 x 3/4...
- Page 4 KIT LINK TOYOTA SIENNA 2011 + -CENTRAL- ITEM PART NUMBER DESCRIPTION LK000L-01 Short Model LINK -Left- LK-UNI-305L 305 Top Bearing Plate -Left- PRD 192-141 Spring Tensions Pin 3/16 x 3/4 PRD 337-193P Socket Head Cap Screw Zinc Plated 1/4-20 UNC x 3/4...
- Page 5 KIT LINK TOYOTA SIENNA 2011 + -CENTRAL- ITEM PART NUMBER DESCRIPTION LK-TOY11CL-03 Seat Adapter -Left Central- L-LK912 Communication Cable Support LK750LB Pivot Cover -Left- Black LK730LB Outside Cover -Left- Black LK731LB Intside Cover -Left- Black LK710B Chain Covert -Black- PRD 110-106...
- Page 6 KIT LINK TOYOTA SIENNA 2011 + -CENTRAL- ITEM PART NUMBER DESCRIPTION LK700B Link Covert -Black- LK720LB Pivot Motor Cover -Left- Black LK960 LINK Wired Control LK-TOY11CL-01 Outside Floor Adapter -Left Central- LK-TOY11CL-02 Inside Floor Adapter -Left Central- LK-TOY11C-BK Bolt Kit -Central- LK760B 44"...
- Page 7 Remove the driver side center OEM seat and place on a workbench. 2. Remove all the plastic shrouds from the seat carriage and also the center brace. 3. Remove the seatbelt anchor bolt. LINK 2011 & UP Toyota Sienna Center Left – p.3...
- Page 8 5. To remove the interior seat rail the gas tank will have to be lowered on the side next to the exhaust system to gain access to the three bolts. Access to a vehicle lift will facilitate this. Retain the OEM nuts for reinstallation. LINK 2011 & UP Toyota Sienna Center Left – p.4...
- Page 9 6. Install the LINK interior floor adapter (LK-TOY11CL-02) and tighten down with the original OEM nuts before remounting the gas tank and lowering the vehicle. 7. The exterior floor adapter (LK-TOY11CL-01) can now be installed and bolted down with the OEM bolts, reinstall the seat belt anchor bolt at this time.
- Page 10 9. Install the plastic seat floor adapter covers. (LK-TOY11CB-07) (LK-TOY11CB-08) (LK-TOY11CRB-09) 10. Run the power from the battery to the LINK. To do this, thread the red power cable (+) under the doorstep moulding and through the firewall. Make sure you pass through a grommet in the firewall to prevent the cable from chaffing.
- Page 11 11. The remove the LINK from the shipping box and set it on a table or work bench. The LINK has been pre-programmed to fit in the application it was ordered for. *IMPORTANT: Before connecting auxiliary 12V power to the LINK, connect the 9V battery. The 9V battery will maintain memory of the movements of the motors for approximately 12 hours, in event of 12V power loss.
- Page 12 LINK by the pivot, and use the four (4) 3/8’’-16x7/8’’ to secure the interior of the LINK be careful not to pinch the wire at the back of the LINK. NOTE: Run the harness of the LINK around and under the pivot.
- Page 13 15. With the seat installed on a workbench remove all the plastic shrouds. To remove the right hand side shroud you will have to remove the seat belt receiver. LINK 2011 & UP Toyota Sienna Center Left – p.9...
- Page 14 17. Pull on the seat folding cable with the pink plastic to tilt the seat base and relieve the tension in the spring. Then unbolt the seat base cushion from the metal base. LINK 2011 & UP Toyota Sienna Center Left – p.10...
- Page 15 Cut the wire clips at the front and remove the frame. 19. Install the provided seat base adapter (LK-TOY11CL-04) and attach at the front at the same place as the metal clips with zip ties and then close the fabric of the seat.
- Page 16 Install the three provided child seat attachment adaptors. Use the provided self-tapping screws to fix them in position. Use the seat cushion holes for alignment LINK 2011 & UP Toyota Sienna Center Left – p.12...
- Page 17 22. The seat base can now be installed on to the LINK seat adapter using the four 5/16x1’’1/4 bolts provided. 23. Reinstall the seat back using the OEM bolts. Then install the provided recline handle (LK-TOY11C-06) with the OEM bolts.
- Page 18 25. Install the provided left hand side seat shroud (LK-TOY11CL-10) 26. Install the provided right hand shroud (LK-TOY11CL-11) and then the seat belt receiver using the OEM bolt. LINK 2011 & UP Toyota Sienna Center Left – p.14...
- Page 19 27. Using the LINK IT app, use ‘RESET’ mode to bring the seat to the ‘HOME’ position. PLEASE WATCH THE SHORT TUTORIAL THAT APPEARS WHEN YOU TOUCH ‘RESET’ TO UNDERSTAND HOW THIS FEATURE WORKS. Use ‘TILT’ and ‘TRAVEL’ to bring all three motors to their ‘HOME’ position. Use gentle movements to make sure to not go past the visual markers (yellow indicators) of the LINK’s...
- Page 20 9 Volt Battery The LINK is designed to run off of the vehicle’s 12 volt battery. It is equipped with many safeguards to ensure that the controller box always retains its programing sequence. One of those safeguards is the 9 volt memory backup battery.
-
Page 21: Normal Use
All systems functional and ready to go. Power Reduce Mode To exit, simply run the LINK a full cycle. Major Problem Do not use the LINK - contact your Mobility Equipment Dealer No Response No 12V Power DIAGNOSTIC MODE (Press and hold the power button) Current vehicle 12V power supply level. -
Page 22: Year Limited Warranty
ADAPT-SOLUTIONS #1 LTD. 3 YEAR LIMITED WARRANTY Adapt-Solutions # 1 Ltd. (Adapt Solutions), warrants to the original purchaser of a LINK that the equipment is free from defects in material and workmanship for a period of three years from date of purchase. - Page 23 LINK 2011 & UP Toyota Sienna Center Left – p.19...
- Page 24 LINK 2011 & UP Toyota Sienna Center Left – p.20...
