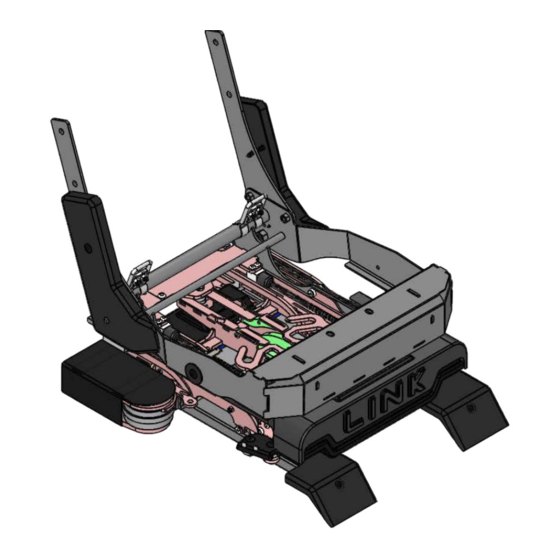

- Page 1 LINK INSTALLATION MANUAL LK-TRV18CR CHEVY TRAVERSE 2018 & UP PASSENGER SIDE 2...
- Page 2 LK-TRV18C-AB Extention Kit for Heatead Seat LK15010 Babyseat Anchors Kit EW-CK-00 12V Power Supply Wiring Kit LK-UNI-650 Manual Backup Tool Kit PART NUMBER LK-TRV18CR DESCRIPTION LINK Chevrolet Traverse 2018 & Up -Right Central- 1 of 5 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 3 3.-Thread 1/4 - 20 UNC LK750RB Pivot Cover -Right- Black Dril: 3/16" Dril: 5/16" Thread 1/4" - 20 UNC DETAIL A SCALE 1:1 PART NUMBER LK-TRV18CR DESCRIPTION LINK Chevrolet Traverse 2018 & Up -Right Central- 2 of 5 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 4 Socket Head Cap Screw Zinc Plated 3/8-16 x 7/8 PRD 332-166P Socket Head Cap Screw Zinc Plated 3/8-16 x 1 1/4 PART NUMBER LK-TRV18CR DESCRIPTION LINK Chevrolet Traverse 2018 & Up -Right Central- 3 of 5 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 5 Trim Panel Clip Ø1/4'' x 3/4'' Black LK710B Chain Covert -Black- PRD 110-106 Round washer head tapping screw #8 x 3/4 LK700B Link Covert -Black- L-LK912 PART NUMBER LK-TRV18CR DESCRIPTION LINK Chevrolet Traverse 2018 & Up -Right Central- 4 of 5 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 6 Hex Cap Bolt Zinc Plated 3/8-16 x 3/4 G5 LK-TRV18CRB-06 Seat Outside Trim -Black- -Right Central- LK-TRV18CRB-07 Seat Inside Trim -Black- -Right Central- LK-TRV18CB-09 Cap 1 3/4" -Black- PART NUMBER LK-TRV18CR DESCRIPTION LINK Chevrolet Traverse 2018 & Up -Right Central- 5 of 5 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 7 REFERENCES LINK L K- T RV18C R ”| O EM Se a t he ig ht: *T ra nsfe r he ig ht: 19 A ve ra g e insta ll: 4- 6 hrs. 2 ½ ” mo re tha n O EM 1 ”...
- Page 8 Take a moment and watch the video that shows all the features of the tablet. To do this, open the LINK IT app and tap on ‘INFO’. Make sure your volume is turned up and tap on App-101.
- Page 9 1. Remove the passenger side center OEM seat and place on a workbench. Disconnect the wiring harness from the floor connecter. 2018 & UP Chevy Traverse Central Right – p.3 LINK...
- Page 10 2. Unhook the elastic straps under the seat and then disconnect the wiring harness at the connecter under the seat. Remove the wiring from the seat frame. Remove the plastic trim at the back the seat. 3. Remove the left-hand side armrest. 2018 & UP Chevy Traverse Central Right – p.4 LINK...
- Page 11 4. Remove the headrest. 5. Remove the plastic trim from the child seat tether at the rear of the seat. Remove the plastic trim from the rear seat access lever. 2018 & UP Chevy Traverse Central Right – p.5 LINK...
- Page 12 6. Unhook the bottom of fabric back on the seatback, and then unclip and unzip the seat back cover to be able to remove the protective backing. 2018 & UP Chevy Traverse Central Right – p.6 LINK...
- Page 13 7. The two headrest receivers will have to be removed to be able to remove the seat back cushion from the seatback. 2018 & UP Chevy Traverse Central Right – p.7 LINK...
- Page 14 8. The seat recline handle, and the t-shaped mounting bracket under the seat will have to be removed. Then unclip and remove the seat cushion from the seat-base. 2018 & UP Chevy Traverse Central Right – p.8 LINK...
- Page 15 9. Detach the rear seat access, mechanism wires from the seat-cushion support, and then remove the support. 10. Detach the rear seat access, mechanism wire from the handle. 2018 & UP Chevy Traverse Central Right – p.9 LINK...
- Page 16 NOTE: there is tension on these wires and are hard to remove. 12. Unbolt and remove the seat-back pan. The mounting bracket for the armrest is removed at the same time. 2018 & UP Chevy Traverse Central Right – p.10 LINK...
- Page 17 14. Unbolt the elbow bracket and bend it forward to give enough space to remove the plastic trim covering the seatbelt receiver’s attachment point. Remove the trim and then remove the seatbelt receiver. 2018 & UP Chevy Traverse Central Right – p.11 LINK...
- Page 18 15. Extended the wiring using the provided extension. 2018 & UP Chevy Traverse Central Right – p.12 LINK...
- Page 19 16. Run the power from the battery to the LINK. To do this, thread the red power cable (+) under the doorstep moulding and through the firewall. Make sure you pass through a grommet in the firewall to prevent the cable from chaffing.
- Page 20 18. Next, connect the LINK to the Android tablet via Bluetooth. Connect the Bluetooth module (small, blue and white, 4 pronged connector) to the LINK pendant plug. Make sure the tablet and LINK are connected. (Detailed explanations are found in the video tutorial, under INFO.) Using the LINK IT application, open ‘BYPASS’.
- Page 21 20. Install the floor adapters # LK-TRV18CR-01 and # LK-TRV18CR-02 using the OEM seat bolts, do not tighten at this time. And then install the cross member # LK-TRV18CR-05 using the 4 provided 7/16- 14x1’’1/2 inch Allen bolts. Now tighten down all the bolts.
- Page 22 22. Place the LINK in the vehicle on the floor adapters. Use the four longer (3/8’’-16 x 1¼’’) socket cap bolts to secure the LINK by the pivot, and use the four shorter (3/8’’-16 x 7/8’’) bolts to secure the interior of the LINK.
- Page 23 24. Attach the seatback pan to the previously installed seat back support brackets using the OEM bolts. The armrest support bracket will be reinstalled at the same time. 25. Install the seat-cushion support onto the LINK seat adapter. 2018 & UP Chevy Traverse Central Right – p.17...
- Page 24 LINK seat adapter using the 26. Attach the replacement child seat LATCH anchors kit # LK15010 provided Allen screws and self locking nuts. Make sure they are positioned at the same angle as the OEM seat base LATCH anchors.
- Page 25 27. Install the seat cushion onto the seat base. 2018 & UP Chevy Traverse Central Right – p.19 LINK...
- Page 26 28. Reinstall the seat-back cushion. Attach all straps under the seat securely, use zip ties if necessary. 29. Reinstall the headrest. 2018 & UP Chevy Traverse Central Right – p.20 LINK...
- Page 27 31. Install the seatbelt receiver to the seat adapter using the OEM bolt. 32. Install the left hand replacement plastic trim # using the provided trim clip at the top LK-TRV18CRB-07 and the self tapping screw at the bottom. 2018 & UP Chevy Traverse Central Right – p.21 LINK...
- Page 28 34. Install the right-hand side replacement trim # using the provided screw and trim clip. LK-TRV18CRB-06 Run the extended wiring up along the back of the trim and attach with zip ties. 2018 & UP Chevy Traverse Central Right – p.22 LINK...
- Page 29 36. Reconnect the extended wire harness to the floor connecter. Make sure to route it under the frame of the LINK and the carpeting. Test that the wiring follows the seat in and out without and danger of getting caught.
- Page 30 ‘HOME’ position before moving on to the next step. If the LINK is slightly off its ‘HOME’ position or the starting point of its movements, there is a strong chance that the LINK will not fit through the doorway properly and/or will cause problems with the preset of the LINK.
- Page 31 Unplug the Bluetooth module and plug in the hand pendant. Make sure the LINK hand pendant is working properly. Cycle the LINK in and out a few times, both with and without a passenger to make sure all shrouds are properly installed and that nothing is rubbing or requires adjustment. Make a visual inspection while the LINK is in movement that all the wiring follows the seat and does not risk being severed at any time.
- Page 32 9 Vo lt Ba tte ry T he LINK is designed to run off of the vehicle’s 12 vo lt b a tte ry. It is e q uip p e d with ma ny sa fe g ua rd s to e nsure tha t the c o ntro lle r b o x a lwa ys re ta ins its p ro g ra ming se q ue nc e .
-
Page 33: Normal Use
Normal All systems functional and ready to go. To exit, simply run the LINK a full cycle. Power Reduce Mode Do not use the LINK - contact your Mobility Equipment Dealer Major Problem No Response No 12V Power DIAG NO ST IC MO DE... -
Page 34: Year Limited Warranty
( LINK ) inste a d o f re p a iring o r re p la c ing the o rig ina l e q uip me nt. - Page 35 2018 & UP Chevy Traverse Central Right – p.29 LINK...
