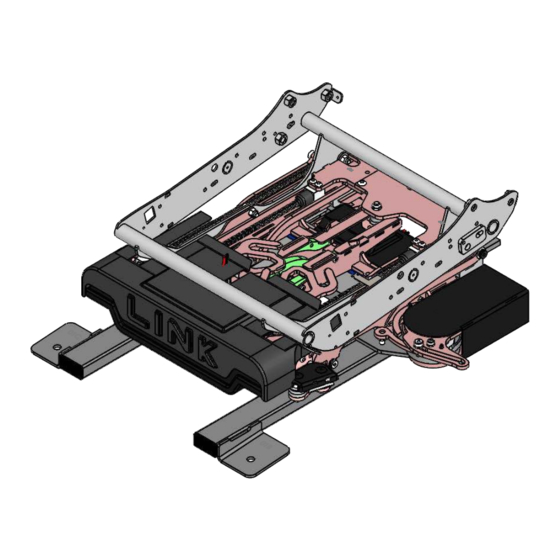

- Page 1 LINK INSTALLATION MANUAL LK-TRV18PL CHEVY TRAVERSE 2018 & UP DRIVER FRONT POWER SEAT...
- Page 2 Power Seat Kit With Memory LK-TER18-BK Bolt Kit LK-TRV18L-AB Air Bag Kit -Left- EW-CK-00 12V Power Supply Wiring Kit LK-UNI-650 Manual Backup Tool Kit PART NUMBER LK-TRV18L DESCRIPTION LINK Chevrolet Traverse 2018 & Up -Left- 1 of 4 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 3 PRD 192-135 Spring Tension Pin 5/32 x 3/4 PRD 192-309 Spiral Spring Tensions Pin 3/16 x 3/4 LK750LB Pivot Cover -Left- Black PART NUMBER LK-TRV18L DESCRIPTION LINK Chevrolet Traverse 2018 & Up -Left- 2 of 4 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 4 Socket Head Cap Screw Zinc Plated 3/8-16 x 7/8 PRD 332-166P Socket Head Cap Screw Zinc Plated 3/8-16 x 1 1/4 LK720LB Pivot Motor Cover -Left- Black PART NUMBER LK-TRV18L DESCRIPTION LINK Chevrolet Traverse 2018 & Up -Left- 3 of 4 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 5 Round washer head tapping screw #8 x 1/2 LK710B Chain Covert -Black- PRD 110-106 Round washer head tapping screw #8 x 3/4 LK700B Link Covert -Black- L-LK912 PART NUMBER LK-TRV18L DESCRIPTION LINK Chevrolet Traverse 2018 & Up -Left- 4 of 4 |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 6 REFERENCES LINK L K- T RV18L ”| 3 ” hig he r tha n O EM lo we st (3 ” a d justa b le se a t) Se a t he ig ht: *T ra nsfe r he ig ht: 19 A ve ra g e insta ll: 10- 14 hrs.
- Page 7 Take a moment and watch the video that shows all the features of the tablet. To do this, open the LINK IT app and tap on ‘INFO’. Make sure your volume is turned up and tap on App-101.
-
Page 8: Before Starting The Installation
Make sure the steering wheel adjustment is fully UP and IN to allow maximum clearance for the driver seat. When installing the LINK with hand controls, we strongly suggest that the hand controls be installed after the LINK. 1. Remove the driver side OEM seat and place it on a workbench or table. In the next few steps, you will be taking apart much of the seat. - Page 9 2. Unhook the elastic bands holding the fabric flap in place. 3. Remove the left-hand side seat trim over the seatbelt pretensioner. Then unplug and remove the seatbelt pretensioner. LINK Chevy Traverse/Buick Enclave 2018 & up |Driver front (Power Seat) p. 4...
- Page 10 5. Unplug the connecter for the seat height adjustment motor and remove the wiring clip. 6. Remove the right-hand side seat trim by removing the two screws and carefully prying it free. LINK Chevy Traverse/Buick Enclave 2018 & up |Driver front (Power Seat) p. 5...
- Page 11 7. Now unplug and remove the seatbelt receiver. Then unplug the seat cushion connector. 8. Remove the seat cushion, seat fan ducting and the seat-cushion support frame. LINK Chevy Traverse/Buick Enclave 2018 & up |Driver front (Power Seat) p. 6...
- Page 12 Note: there are no connectors for the wiring into the seat back and the wiring will follow the seat back. 11. Remove the interior plastic trims at the rear of the seat base. LINK Chevy Traverse/Buick Enclave 2018 & up |Driver front (Power Seat) p. 7...
- Page 13 Remove the seat pan. 13. Remove the control box from its bracket. LINK Chevy Traverse/Buick Enclave 2018 & up |Driver front (Power Seat) p. 8...
- Page 14 (If you wish to keep a record of your wire extensions for reference, you will find a lined extension to avoid errors. sheet at the very end of this manual for that purpose.) WIRING BEFORE EXTENTION LK-TRV18L LINK Chevy Traverse/Buick Enclave 2018 & up |Driver front (Power Seat) p. 9...
- Page 15 WIRING EXTENTION LINK Chevy Traverse/Buick Enclave 2018 & up |Driver front (Power Seat) p. 10...
- Page 16 LINK Chevy Traverse/Buick Enclave 2018 & up |Driver front (Power Seat) p. 11...
- Page 17 15. Run the power from the battery to the LINK. To do this, thread the red power cable (+) under the doorstep moulding and through the firewall. Make sure you pass through a grommet in the firewall to prevent the cable from chaffing.
- Page 18 Also, run the seat belt, seat belt pre-tensioner, seat fan, heated seat connectors out of the back of the seat to the locations where they will be reconnected. Close the seatback. LINK Chevy Traverse/Buick Enclave 2018 & up |Driver front (Power Seat) p. 13...
- Page 19 17. Remove the LINK from the shipping box and set it on a table or workbench. Connect auxiliary 12V power to the LINK. The LINK will ‘beep’ during the installation. (See LINK Audible Warnings chart for further references.) 18. Next, connect the LINK to the Android tablet via Bluetooth. Connect the Bluetooth module (small, blue and white, 4-pronged connector) to the LINK pendant plug.
- Page 20 19. The seat fan must be modified so it can be reinstalled to the LINK. Start by detaching the OEM fan from the fan ducting. Now remove the fan from the seat cushion support. Remove the fan from its casing by removing the four screws and a wiring support clip.
- Page 21 TRV185-06 to the fan ducting, and attach it with two of the provided self-tapping screws. 21. Install the provided doorstop spacer using the M8-1.25X25mm bolt, washer and plastic spacer. This will enable the door to open wider. LINK Chevy Traverse/Buick Enclave 2018 & up |Driver front (Power Seat) p. 16...
- Page 22 22. Place the seat back on the back seat. Place the floor connector and the extended wire harness in the vehicle on the floor before installing the LINK floor adapter. (Do not plug in the floor connector at this time.) Install the floor adapter Part # LK-TRV18L-01.
- Page 23 24. Place the LINK in the vehicle on the floor adapters. Use the four longer (3/8’’-16 x 1¼’’) socket cap bolts to secure the LINK by the pivot, and use the four shorter (3/8’’-16 x 7/8’’) bolts to secure the interior of the LINK. Be careful not to pinch the wire harness between the LINK and the floor adapter.
- Page 24 27. Reinstall the seatbelt receiver to the LINK using the provided 7/16’’-20 x1’’ bolt and flat washer. 28. Reinstall the seatbelt pre-tensioner using the provided 7/16’’-20x1’’1/2 bolt and flat washer. 29. Attached the modified seat fan to the LINK seat adapter using the provided ¼ inch nuts as spacers along with the self-tapping screws.
- Page 25 30. Install the seatback on to the LINK seat base adapter using the OEM bolts. 31. Reconnect the seatbelt receiver. Loop it through the back of the seat and connect it the seat. LINK Chevy Traverse/Buick Enclave 2018 & up |Driver front (Power Seat) p. 20...
- Page 26 Then attached the rear of the seat pan with using the provided 1/2x1x3/8 shoulder bolts and nuts. Attach the front of the seat pan use the provided brackets # LK-SILC14-04 and self-tapping screws. LINK Chevy Traverse/Buick Enclave 2018 & up |Driver front (Power Seat) p. 21...
- Page 27 33. Reinstall the seat-cushion support, and then the modified seat-fan duct. Be sure to insert the modified seat-duct adapter in the fan hose. 34. Reconnect the seat-belt pretensioner. Route the remaining connecters under the seat pan near the modified seat fan duct. LINK Chevy Traverse/Buick Enclave 2018 & up |Driver front (Power Seat) p. 22...
- Page 28 35. Run the seat cushion cable out the back of the seat base to be reconnected and then reattached the seat cushion. 36. Reconnect all other wiring connectors. Secure any loose wires with zip ties. LINK Chevy Traverse/Buick Enclave 2018 & up |Driver front (Power Seat) p. 23...
- Page 29 38. The plastic seat trim on the right-hand side will have to be cut and modified. Cut off the front part at 2 ½ inches from the front and reinstall. LINK Chevy Traverse/Buick Enclave 2018 & up |Driver front (Power Seat) p. 24...
- Page 30 Use zip ties as required. LINK Chevy Traverse/Buick Enclave 2018 & up |Driver front (Power Seat) p. 25...
- Page 31 41. Attach the extended wiring at the back of the seat. Reattach the fabric seat flap under the seat. NOTE: Make sure it is tight and that there is no danger of it getting caught in the LINK mechanism. Attach additional wiring with zip ties.
- Page 32 43. Bring the LINK out to verify if you have enough wire to follow the seat in and out. Attach the wire at the lower corner of the LINK. Roll up any excess wiring on the floor under the LINK and reconnect the seat floor connector.
- Page 33 43. Now that the LINK is in its ‘HOME’ position, RESET the unit by pressing ‘CONFIRM RESET’. A screen will pop up to ask: ‘ARE YOU SURE YOU WANT TO RESET?’. Press ‘ACCEPT’. The LINK will emit two (2) audible beeps to confirm ‘RESET’, and will now be in reduced power mode.
- Page 34 9 Vo lt Ba tte ry T he LINK is designed to run off of the vehicle’s 12 vo lt b a tte ry. It is e q uip p e d with ma ny sa fe g ua rd s to e nsure tha t the c o ntro lle r b o x a lwa ys re ta ins its p ro g ra ming se q ue nc e .
-
Page 35: Normal Use
Normal All systems functional and ready to go. To exit, simply run the LINK a full cycle. Power Reduce Mode Do not use the LINK - contact your Mobility Equipment Dealer Major Problem No Response No 12V Power DIAG NO ST IC MO DE... -
Page 36: Year Limited Warranty
( LINK ) inste a d o f re p a iring o r re p la c ing the o rig ina l e q uip me nt. - Page 37 LINK Chevy Traverse/Buick Enclave 2018 & up |Driver front (Power Seat) p. 32...
