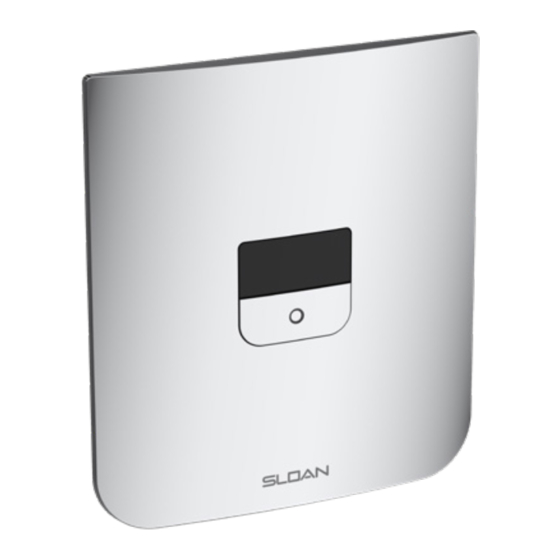

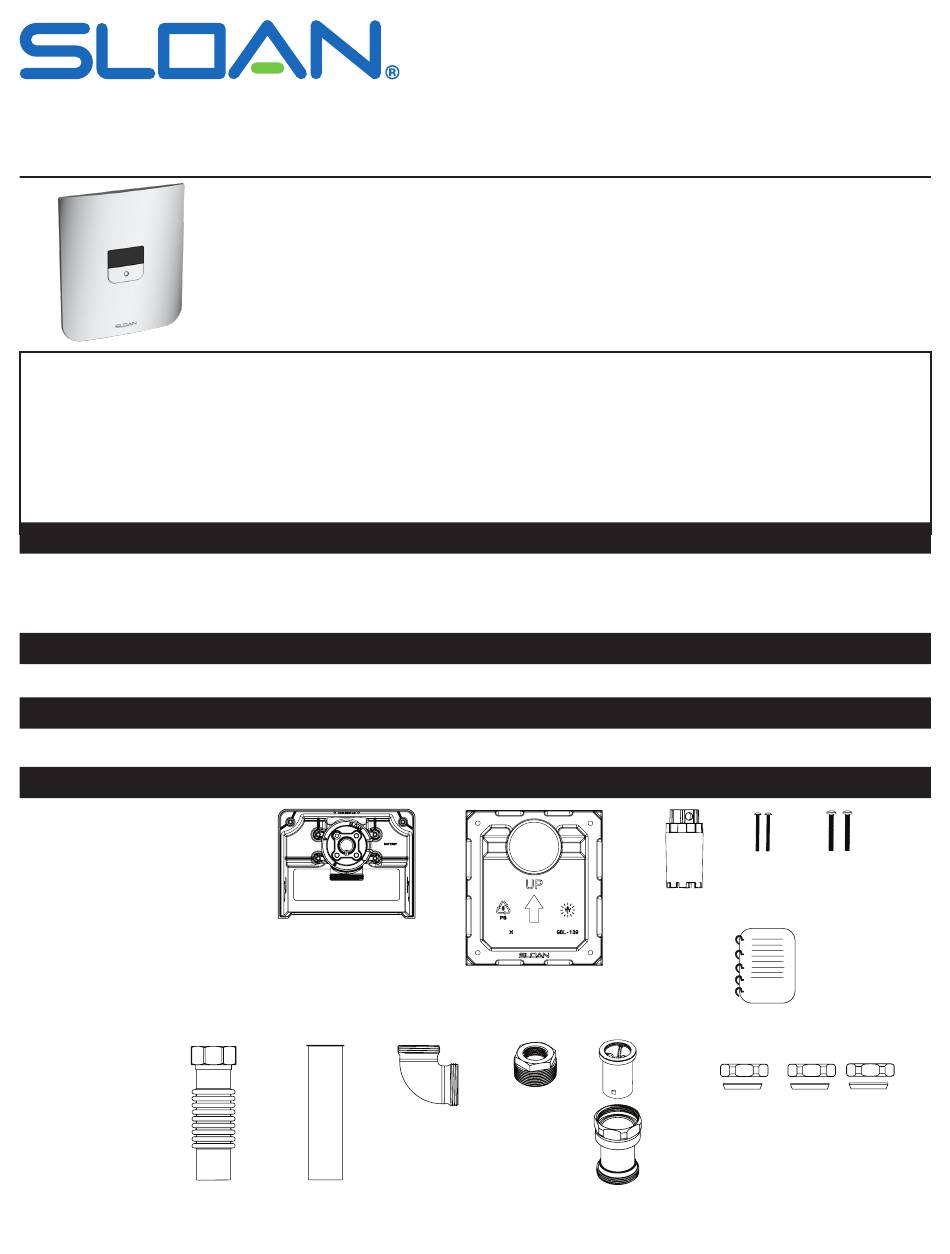

SLOAN CX SENSOR CLOSET AND URINAL FLUSHOMETERS
Sloan Valve Company warrants its flushometer to be made of first class materials, free from defects of material or workmanship under
normal use and to perform the service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a period of
three (3) years (one year for special finishes) from the date of purchase. During this period, Sloan Valve Company will, at its option, repair or replace any part or parts
that prove to be thus defective if returned to Sloan Valve Company, at customer's cost, and this shall be the sole remedy available under this warranty. No claims will
be allowed for labor, transportation or other incidental costs. This warranty extends only to persons or organizations that purchase Sloan Valve Company's products
directly from Sloan Valve Company for purpose of resale. This warranty does not cover the life of batteries.
THERE ARE NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY RESPONSIBLE FOR ANY CONSE-
QUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.
PRIOR TO INSTALLATION
This valve is designed for new construction or where there is easily accessed plumb-
ing for the fixture and valve. This valve is designed for a minimum 6-1/2 inch (165
mm) wall space depth. Distance from the center of the valve (inlet or outlet pipe) to
the finished surface of the wall can vary from 3-1/4" – 4-1/4" (83 – 108 mm).
TOOLS AND ITEMS REQUIRED FOR INSTALLATION (PROVIDED)
• 5/64" hex wrench • Wall plate depth guide • Adjustment tool
TOOLS AND ITEMS REQUIRED FOR INSTALLATION (NOT PROVIDED)
• Smooth-jawed wrench (at least 2") • Philips screwdriver • threaded sweat solder adapter
• approximately 15"-18" pipe
ITEMS INCLUDED (VALVE BOX)
1. Valve Box
2. Mud Guard
3. Adjustment tool
4 Mud Guard Screws
5 Activation Assembly Screws
6. Instructions
7. Adjustable Tube
8. Outlet Connection
9. Elbow
10. Inlet Adapter
11. Vacuum Breaker Assembly
12. Couplings & Gaskets
7. Adjustable Tube
INSTALLATION INSTRUCTIONS FOR
Sensor Closet Flushometers
CX 8158-1.6
CX 8158-1.28
CX 8154-1.6
CX 8154-1.28
LIMITED WARRANTY
1.Valve Box
9. Elbow
8. Outlet Connection
Sensor Urinal Flushometer
CX 8198-0.5
CX 8198-0.25
CX 8198-0.125
Wall plate opening must be a minimum of 7-3/8" wide x 8-3/8" tall (187 mm wide
x 213 mm tall) to maximum 7-5/8" wide x 8-5/8" tall (194 mm wide x 219 mm
tall). Mud plate is provided and must accompany valve for proper installation. Mud
plate is removed after wall is finished.
3.Adjustment Tool
2. Mud Guard
V651A
Kit
10. Inlet Adapter
11. Vacuum Breaker
Assembly
1
Code No: 0816858
Rev. 3 (07/20)
4.#8-32 Mud
5. 1/4-20 Activation
Guard Screws
Assembly Screws
6. Instructions
12. Couplings & Gaskets
