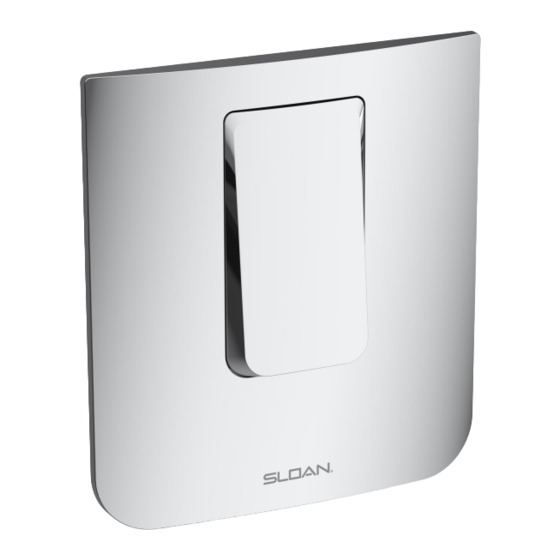

Sloan CX 158 Repair Parts And Maintenance Manual

3
12
4
1
5
2
13
14
15
For Model 158, Wall Hung
16
18
17
19
For Model 198, Urinals
16
17
23
For Model 154, Floor Mount Exposed Rear Inlet
16
17
20
8
2A
6
7
18A
Install with
Flange against spud
23A 23B
22
22A 22B
21

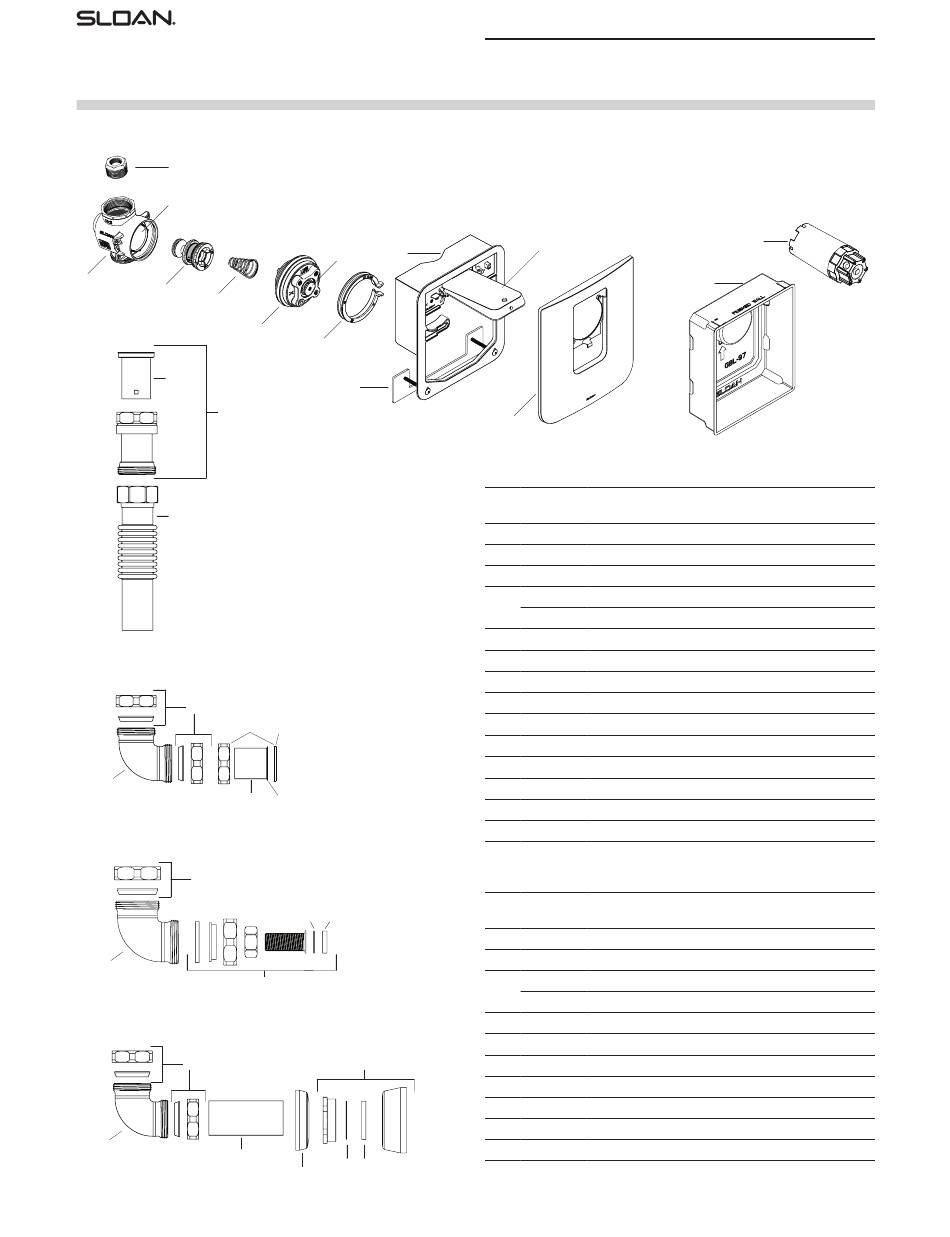

Repair Parts and Maintenance Guide
CX Manual Flushometer

Manual Closet Flushometers

CX 158 - 1.6 gpf (Wall Hung)
CX 158 - 1.28 gpf (Wall Hung)
CX 158 - 1.1 gpf (Wall Hung)
CX 154 - 1.6 gpf (Floor Mount)
CX 154 - 1.28 gpf (Floor Mount)
CX 154 - 1.1 gpf (Floor Mount)
8A
9

PARTS LIST

Item
No. Code No. Part No. Description
1 See table on next page Piston Assembly
2 See table on next page Activation Assembly
2A 3340018 GBL-1018-A Manual Plunger Assembly Repair Kit
0340062
3 GBL-56 Inlet Adapter 1-1/2" NPT x 1" NPT Closet
0340063
GBL-171 Inlet Adapter 1-1/2" NPT x 3/4" NPT Urinal
4 — — Valve Body*
5 — — Conical Spring**
6 3340011 GBL-1011-A Safety Collar (Collar for Bonnet)
7 33400011 GBL-214-A C-Bracket Kit with Screws
8 — —
Manual CX Wall Bracket
8A See table on next page Manual CX Button Only
9 See table on next page Manual CX Finished Wall Plate
10 03340012 GBL-1012-A Activation Assembly Tool
11 33400033 GBL-1060-A Manual CX Mud Guard (4 pack)
12 0340085 GBL-66-A Shut Off Sleeve (with O-Ring)
* Not sold separately. ** Included with Piston.

FLUSH CONNECTION PARTS

Item
No. Code No. Part No. Description
13 3323182 V-651 Vacuum Breaker Kit
14 0323011 V-500-A RB Vacuum Breaker Assembly
15 33060011 F-227-A
Adjustable Tube 6.5" Replacement Kit, 158, 198
33060012
F-228-A Adjustable Tube 10.5" Replacement Kit, 154
0306395
16 F-211-A CX Poly Washer and Coupling (set of 2)
17 0306392PK F-305 CX Elbow for CX Poly Washer
18 0306091 F-2-A 1-1/2" Coupling with S-21 Gasket
18A 0319079 S-21 Rigid Gasket
19 0306031PK F-1 1-1/2" x 6" Tube
0396119PK
20 F-101 CP Tube Outlet 1-1/2" x 10-1/2"
0306237PK
21 F-7 Tube Flange 1-1/2" x 2-3/4" with Prongs

Manual Urinal Flushometers

CX 198 - 0.5 gpf
CX 198 - 0.25 gpf
CX 198 - 0.125 gpf
10
