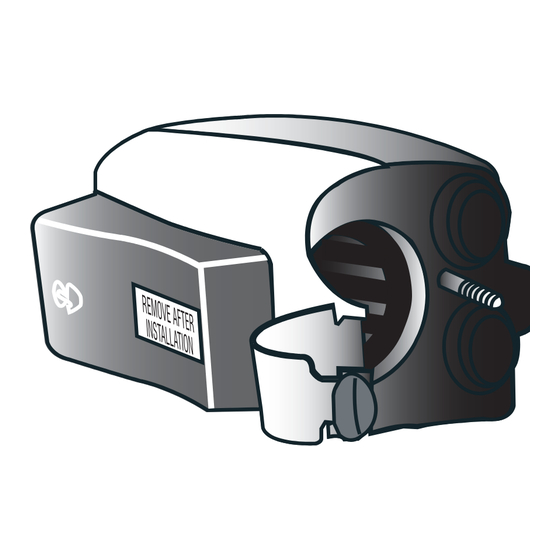

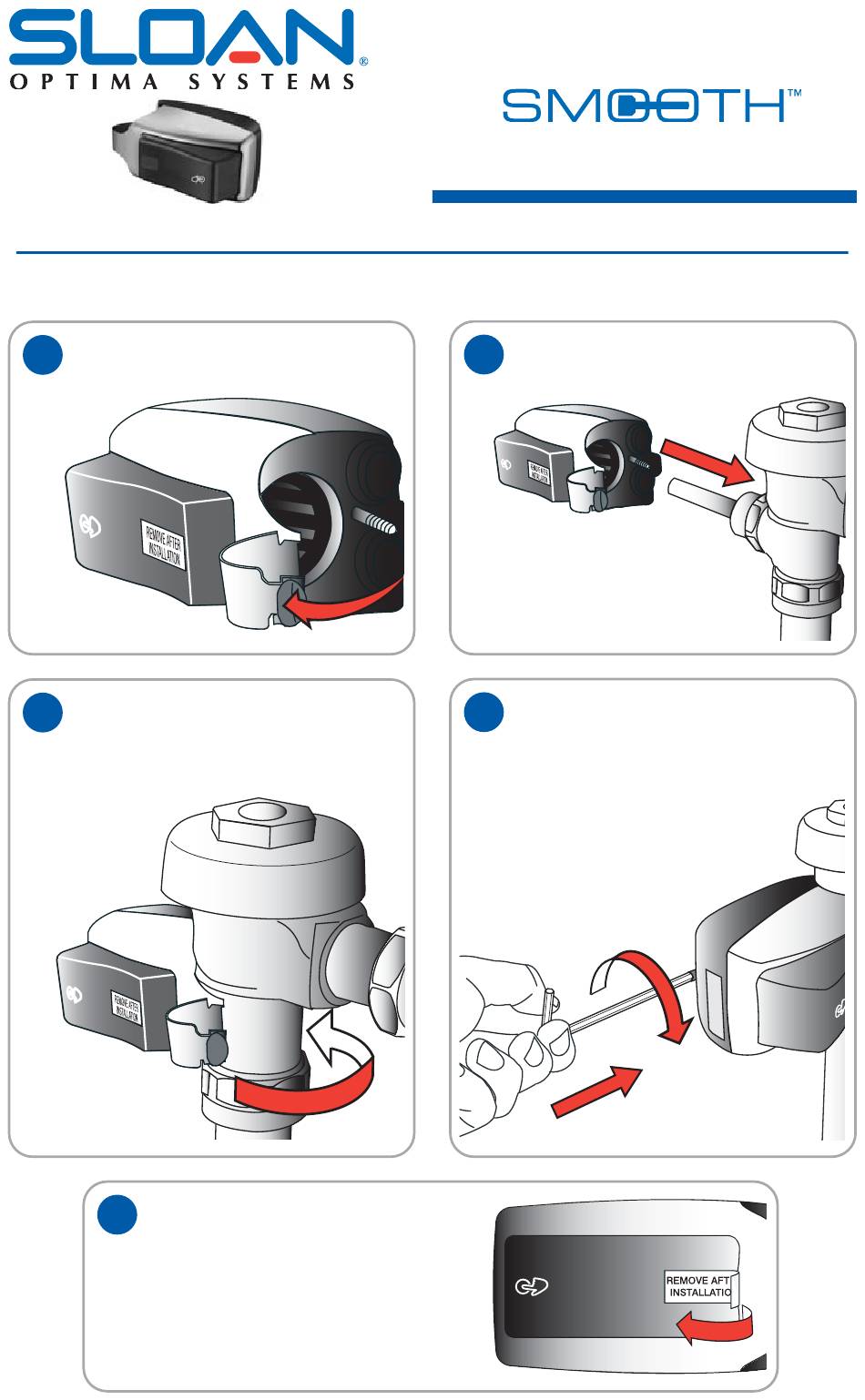

EBV-200-A SMOOTH FLUSHOMETER RETROFIT KIT INSTALLATION INSTRUCTIONS
1
Pull and swing Mounting Clamp to the
open position.
3
Swing the Mounting Clamp around the
flushometer body and press the clamp
end into the unit until it clicks into place.
5
Remove Adhesive Label from sensor
window.
NOTE: Red LED light will flash and
product will cycle. Unit is now ready
for use.
NOTE: Water does not need to be shut off.
INSTALLATION INSTRUCTIONS
(SIDE-MOUNT-OPERATOR-OVER-THE-HANDLE)
FLUSHOMETER RETROFIT KIT
2
Slide the unit over the existing handle up
to the flushometer body.
4
Tighten unit by pushing in on the
spring loaded Mounting Screw and
turning clockwise with a 1/8" hex
wrench. Do Not overtighten.
Code No. 0816556
Rev. 0b (07/07)
