Sloan CX Troubleshooting Instructions

TROUBLESHOOTING GUIDE
Item No. Part No.
1 See Table Piston Assembly
2 See Table
Activation Assembly

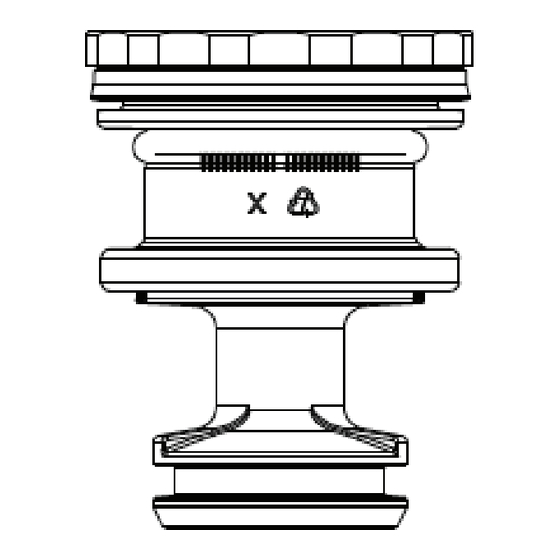

PISTON ASSEMBLY SELECTION GUIDE
Code No. Description
3340053 1.6 gpf/6.0 Lpf closet activation assembly
3340054
1.28 gpf/4.8 Lpf closet activation assembly
3340055 0.5 gpf/1.9 Lpf urinal activation assembly
3340056
0.25 gpf/1.0 Lpf urinal activation assembly
ACTIVATION ASSEMBLY SELECTION GUIDE
Code No. Description
3340048 1.6 gpf/6.0 Lpf closet activation assembly
3340049
1.28 gpf/4.8 Lpf closet activation assembly
3340051 0.5 gpf/1.9 Lpf urinal activation assembly
3340052
0.25 gpf/1.0 Lpf urinal activation assembly
Colors may differ. Consult factory to confirm you have the correct piston assembly.
*
FLUSH CONNECTION PARTS
Item Code No.
1 0323182
2 0323279 Short Vacuum Breaker Tube
3 0306394
4 0306395 Poly Washer Coupling (set of two)
5 0306392PK
6 3306002 1-1/2" Coupling with S-21 Gasket
7 0306031PO 1 1/2" (38 mm) Flanged outlet tube RB, 6"
8 0396669PK F-102 1-1/2" (38 mm) Outlet Tube CP 8"*
9 0306238PK
10 0306146PK
F-5-A 1-1/2" Spud Coupling Assembly CP*
11 0306396
* Consult factory for alternate finish options
Manufactured in the U.S.A by Sloan Valve Company under one
or more of the following patents: U.S. Patents. 5,295,655;
5,542,718; 5,558,120; 5,564,460; 5,730,415; 5,865,420;
5,887,848; 5,967,182. Other Patents Pending.
Bak-Chek , Para-flo , PERMEX , Turbo-Flo
® ® ®
The information contained in this document is subject to change without notice.
Description
Description
V-651 Vacuum Breaker
Adjustable Tube
Elbow
F-7 Flange CP*
Urinal Connection
®
5
CX Manual Flushometers
Piston Color*
Green
Purple
Red
Burgundy
Plug Color*
Green
Purple
Red
Burgundy
For Model 158, Wall Hung
4
7
Install with
Flange against spud
4
For Model 198
11
1
2
1
2
3
For Model 158, Floor Mount
4 10
8
9
Plug
