Sloan CX 8158 Repair Parts And Maintenance Manual

3
14
5
1
4
15
16
17
For Model 8158, Wall Hung
18
20
20A
19
21
Install with
Flange against spud
For Model 8198, Urinals
18
19
25
For Model 8154, Floor Mount Exposed Rear Inlet
18
19
22
2
6
7
2A
8
25A 25B
24
24A 24B
23

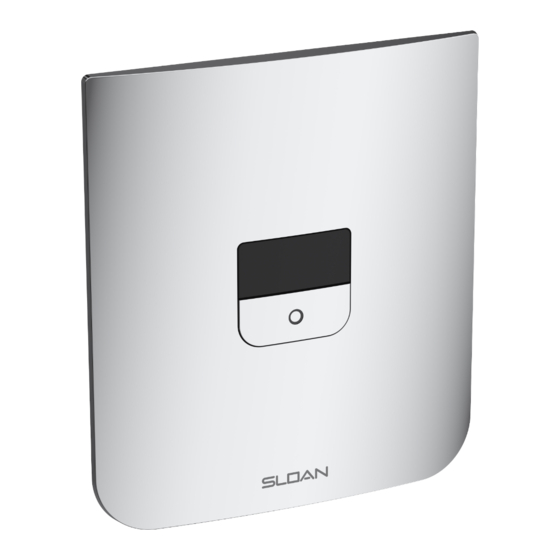

Repair Parts and Maintenance Guide
CX Sensor Flushometer
Hardwired with Battery Backup
Sensor Closet Flushometers
CX 8158 - 1.6 gpf (Wall Hung)
CX 8158 - 1.28 gpf (Wall Hung)
CX 8158 - 1.1 gpf (Wall Hung)
CX 8154 - 1.6 gpf (Floor Mount)
CX 8154 - 1.28 gpf (Floor Mount)
CX 8154 - 1.1 gpf (Floor Mount)
9
11
10
11A

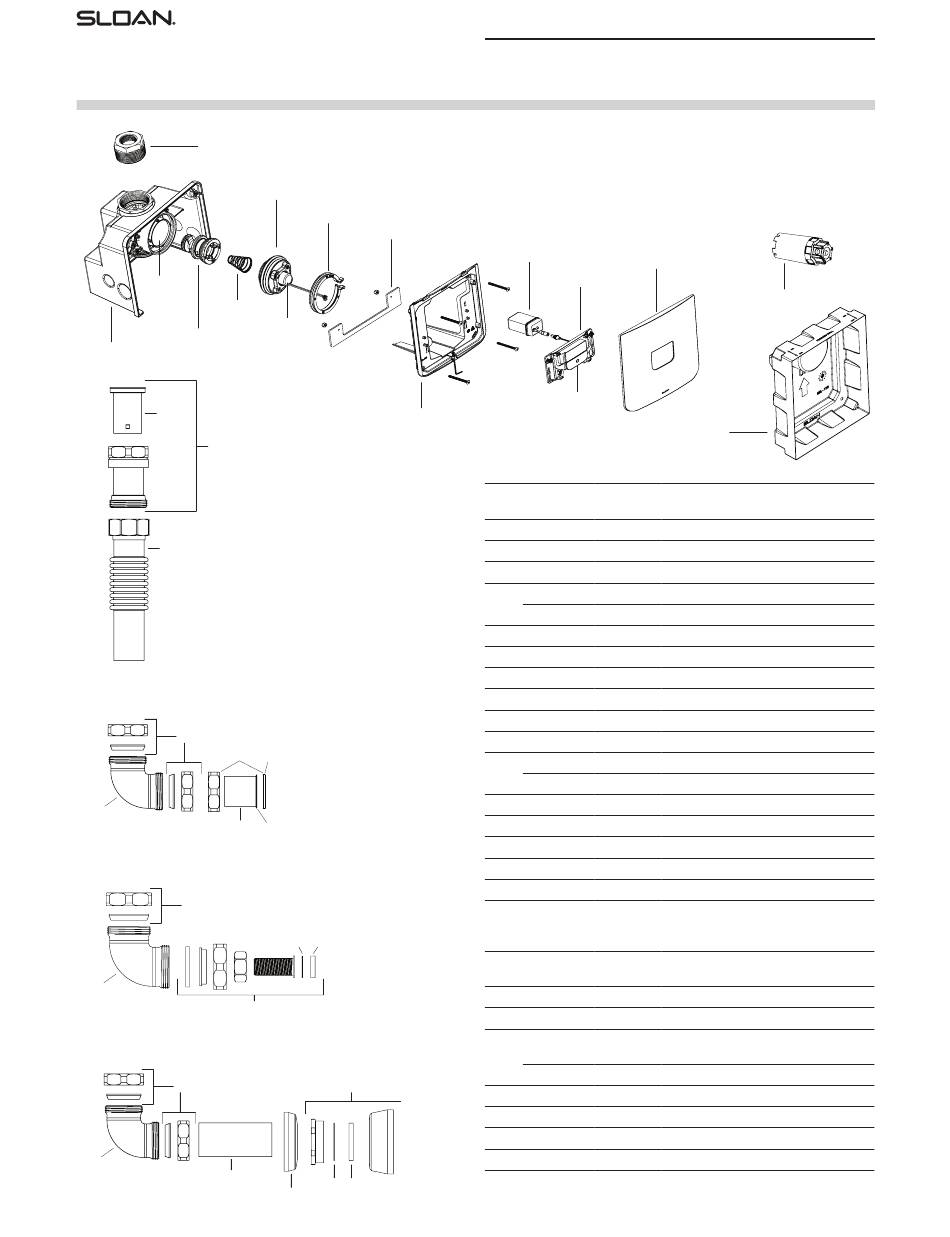

PARTS LIST
Item
No. Code No. Part No.
See table on next page
1
See table on next page
2
2A See table on next page
3 0340062 GBL-56
0340063 GBL-171
4 — —
5 — —
3340011
6 GBL-1011-A
33400011
7 GBL-214-A
8 — —
9 9103681PK ELG-79
10 See table on next page
See table on next page
See table on next page
11
See table on next page
11A
12 3340012 GBL-1012-A
13 33400035 GBL-1062-A
14 0340085 GBL-66-A
* Not sold separately. ** Included with Piston.
FLUSH CONNECTION PARTS
Item
No. Code No. Part No.
3323183
15 V-651
16 0323011 V-500-A
17 33060011 F-227-A
33060012 F-228-A
0306395
18 F-211-A
0306392PK
19 F-305
20 0306091 F-2-A
20A 0319079 S-21
Sensor Urinal Flushometers
CX 8198 - 0.5 gpf
CX 8198 - 0.25 gpf
CX 8198 - 0.125 gpf
12
13
Description
Piston Assembly
Activation Assembly (Includes Item 2A)
Solenoid Assembly
Inlet Adapter 1-1/2" NPT x 1" NPT Closet
Inlet Adapter 1-1/2" NPT x 3/4" NPT Urinal
Sensor CX Valve Body and Box Assembly*
Conical Spring**
Safety Collar (Collar for Bonnet)
C-Bracket with (2) Lock Nuts and Screws
Sensor CX Wall Bracket*
Battery Pack
Sensor Assembly Closet
Sensor Assembly Urinal
Finished Wall Plate
Override Button Only
Activation Assembly Tool
Replacement Mud Guard, Sensor (4 pack)
Shut Off Sleeve (with O-Ring)
Description
Vacuum Breaker Repair Kit
RB Vacuum Breaker Assembly
Adjustable Tube 6.5" Replacement Kit, 8158,
8198
Adjustable Tube 10.5" Replacement Kit, 8154
CX Poly Washer and Coupling (set of 2)
CX Elbow for CX Poly Washer
1-1/2" Coupling Set with S-21 Gasket
1-1/2" Rigid Gasket
