1A
1
2
PARTS LIST
Item
No.
Code No.
Part No.
Description
1
—
—
Valve Assembly
1A
0340085
GBL-66-A
Shut Off Sleeve (with O-Ring)
2
See table to the right
Piston Assembly with Spring
3
—
—
Conical Spring*
See table on next page
4
Activation Assembly
3340018
4A
GBL-1018-A
Plunger Assembly
5
3340011
GBL-1011-A
Safety Collar
6
—
—
TRF Manual Finished Wall Plate, CP
7
—
—
TRF Manual Wall Bracket with Button Assembly
8
33400034
GBL-1061-A
Replacement Kit, Mud Guard Manual (4 Pack)
9
3340012
GBL-1012-A
Activation Assembly Tool
0340094
10
GBL-75
Depth Guide Tool
—
11
GBL-200-A
TRF Manual Wall Bracket and Button Assembly
Includes items 6 & 7.
* Included with Piston Assembly.
† Consult factory for finish options.
ITEM NO. 2 - MANUAL PISTON IDENTIFICATION CHART
PISTON
BODY
FLOW
CONTROL
Flush Volume
1.6 gpf WD (India)
Water Closet
Piston Body
Orange with Screen
Flow Control
Orange
Part Number
GBL-1024-A
Code Number
3340024
4A
3
4
5
1.6 gpf
1.28 gpf
Water Closet
Water Closet
Green with Screen
Purple with Screen
Green
Black Cage
GBL-1005-A
GBL-1006-A
3340005
3340006
Repair Parts and Maintenance Guide

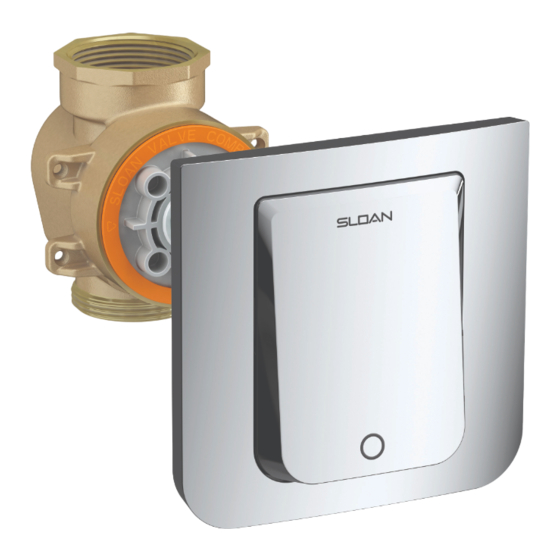

TruFlush Manual Flushometer
Manual Closet Flushometers
TRF 156 - 1.6 gpf
TRF 156 - 1.28 gpf
TRF 156 - 1.1 gpf
11
6
7
ITEM NO. 2 - MANUAL PISTON ASSEMBLY SELECTION GUIDE
Code No.
Part No.
Description
3340024
GBL-1024-A
1.6 gpf/6.0 Lpf Closet Piston Assembly
(Washdown)
3340005
GBL-1005-A
1.6 gpf/6.0 Lpf Closet Piston Assembly
3340006
GBL-1006-A
1.28 gpf/4.8 Lpf Closet Piston Assembly
33400064
GBL-1089-A
1.1 gpf/4.2 Lpf Closet Piston Assembly
3340007
GBL-1007-A
0.5 gpf/1.9 Lpf Urinal Piston Assembly
3340008
GBL-1008-A
0.25 gpf/1.0 Lpf Urinal Piston Assembly
3340009
GBL-1009-A
0.125 gpf/0.48 Lpf Urinal Piston Assembly
* Colors may differ. Consult factory to confirm you have the correct Piston Assembly.
Piston Color*
FILTER SCREEN
DO NOT REMOVE
†
1.1 gpf
0.5 gpf
Water Closet
Urinal
Grey with Screen
Red with Screen
Black Cage
Red
GBL-1089-A
GBL-1007-A
33400064
3340007
NOT AVAILABLE IN
USA OR CANADA
Manual Urinal Flushometers
TRF 196 - 0.5 gpf
TRF 196 - 0.25 gpf
TRF 196 - 0.125 gpf
10
8
TRUFLUSH MANUAL PISTON
SEE CHART BELOW FOR MORE
0.25 gpf
0.125 gpf
Urinal
Burgundy with
Pink with Screen
Screen
Burgundy
GBL-1008-A
GBL-1009-A
3340008
3340009
9
Piston
Color*
Orange
Green
Purple/Black
Grey/Black
Red
Burgundy
Pink
Urinal
Pink
Advertisement
Table of Contents
Related Manuals for Sloan TruFlush TRF 156
Summary of Contents for Sloan TruFlush TRF 156
- Page 1 Repair Parts and Maintenance Guide TruFlush Manual Flushometer NOT AVAILABLE IN USA OR CANADA Manual Closet Flushometers Manual Urinal Flushometers TRF 156 - 1.6 gpf TRF 196 - 0.5 gpf TRF 156 - 1.28 gpf TRF 196 - 0.25 gpf TRF 156 - 1.1 gpf TRF 196 - 0.125 gpf ITEM NO.
- Page 2 Sloan 1.1 gpf diaphragm and piston kits are designed as a replacement part for Sloan 1.1 gpf/4.2 Lpf flushometers only. They are not intended to be used as a means to reduce water consumption in flushometers with higher flush volumes such as 1.28 gpf/4.8 Lpf or 1.6 gpf/6.0 Lpf or higher.
- Page 3 NOT spray directly onto the Flushometer, instead spray cleaner into a clean cloth and then wipe down the Flushometer. While cleaning bathroom tile, protect the Flushometer from any splattering of cleaner. Acids and abrasive cleaning fluids will discolor or remove chrome plating. When assistance is required, please contact Sloan Technical Support at 1.888.SLOAN.14 (1.888.756.2614).
