Sloan G2 Optima Plus Repair Parts And Maintenance Manual

Sensor flushometers
Hide thumbs Also See for G2 Optima Plus:

Advertisement

Quick Links

Download this manual
3
4
1
5
6
7
8
A-3 Body
10
26
25
Earlier model with
A-3 body
27
For use with Sloan's G2
Optima Plus
ushometer
®
introduced May, 2003.
For older Optima Plus
®
ushometers (produced
from 1992 – 2003) and
16A
Regal Pro
Optima Plus
®
®
ushometers see pages
66 thru 71.
13
2
12
11
9
23
24
22
20
21
19A
19B
18
17
14
15
16

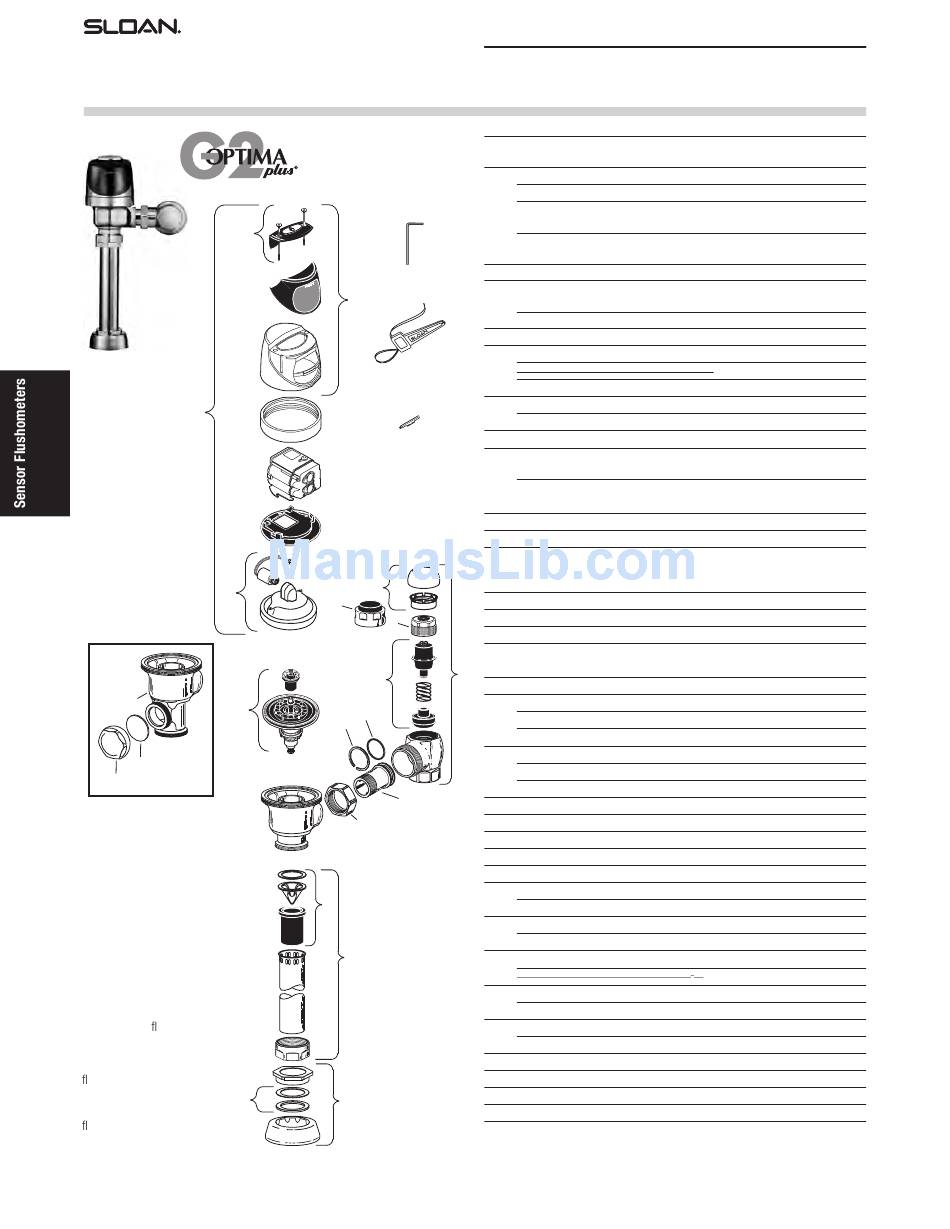

Repair Parts and Maintenance Guide
Repair Parts and Maintenance Guide
G2 Optima
Flushometer
®
SENSOR MODULE COMPONENT PARTS
Item
No.
Code No. Part No.
Description
1. 0325160
EBV-138-A
G2 Cover/Ring/Sensor Assembly – Water Closet
0325161
EBV-139-A
G2 Cover/Ring/Sensor Assembly – Urinal
0325166
EBV-149-A
G2 Cover/Ring/Sensor Assembly – Water Closet
w/Zurn Ring
0325167
EBV-150-A
G2 Cover/Ring/Sensor Assembly –
Urinal w/Zurn Ring
2. 0325168
EBV-142-A
Cover Assembly
3. 0325172
EBV-130-A
Override Button Assembly includes screws & hex
wrench
0325170
EBV-132-A
Screws (2) and Allen Wrench Only
4. 0325169
EBV-131
Lens Window Cover
5. 0325804
EBV-14
Locking Ring CP
0325210
EBV-168
Locking Ring CP OBSOLETE
3325524
EBV-31-A
Locking Ring – for Zurn Valves
6. 3325450
EBV-129-A-C
G2 Electronic Module – Water Closet
3325451
EBV-129-A-U
G2 Electronic Module – Urinal
7. 0325171
EBV-134
Cover Rest Plate
8. 3325456
EBV-145-A
Inside Cover Assembly (includes solenoid
EBV-136-A)
3325089
EBV-1010-A Inside Cover Assembly (includes solenoid EBV-
136-A and locking ring EBV-14)
9. 3325453
EBV-136-A
Solenoid (For G2 Modules only)*
10. SEE CHART NEXT PAGE Flex Tube Diaphragm Kit
* Refer to Page 58 for instructions regarding solenoid replacement.
ACCESSORIES
11. 0325107
EBV-91
Trimpot Adjustment Screwdriver
12. 0305823
EBV-22
Strap Wrench
13. 0325170
EBV-132-A
Allen Wrench
VALVE COMPONENT PARTS
14. 3323182
V-651-A
Vacuum Breaker Repair Kit
15. 0393004
V-600-AA
3/4'' x 9'' CP Vacuum Breaker
0393006
V-600-AA
1-1/4'' x 9'' CP Vacuum Breaker
3393007
V-600-AA
1-1/2'' x 9'' CP Vacuum Breaker
16. 0306125
F-5-AW
3/4'' CP Spud Coupling
0306140
F-5-AU
1-1/4'' CP Spud Coupling
0306146
F-5-AT
1-1/2'' CP Spud Coupling
16A. SEE SLIP JOINT GASKETS AND RINGS TABLE ON NEXT PAGE
17. 0308676
H-550
CP Stop Coupling
18. 0308801
H-551-A
CP Adjustable Tailpiece 2-1/16'' long
19A. 5308696
H-553
O-ring – 24 per package
19B. 5308381
H-552
Locking ring – 12 per package
20. 3308386
H-700-A
1'' Screwdriver Bak-Chek
3308384
H-700-A
3/4'' Screwdriver Bak-Chek
21. 3308853
H-541-A
Control Stop Repair Kit
3308856
H-543-A
Control Stop Repair Kit
22. 0308612
H-622
CP Bonnet
0308843
H-577
CP Bonnet
23. 3308772
H-1010-A
Vandal Resistant Control Stop Cap Assembly
3308790
H-1009-A
Vandal Resistant Control Stop Cap Assembly
24. 3325816
EBV-1019-A 3/4'' Decorative Stop Cap
3308866
H-574
1'' Decorative Stop Cap
25. 3325814
EBV-1017-A Handle Cap — Metal
26. 0311042
K-46
Blind Nut Gasket
27.
0305381 EBV-36-A
Squatty Valve Body
28.
3388015 H-1015
Flow Control Kit (HEU Only) (not Shown)
† For use with 1" and 3/4" H-700-A and 1" H-600-A Bak-Chek
‡ For use with H-600-A 3/4'' screwdriver Bak-Chek
The information contained in this document is subject to change without notice.
68
Stop CP – complete
®
Stop CP – complete
®
†
3/4" H-540/H-600 only
‡
†
OBSOLETE
–
‡
screwdriver control stop
®
control stops
®
†
‡
