Item Part
Description
No. No.
1
See Table

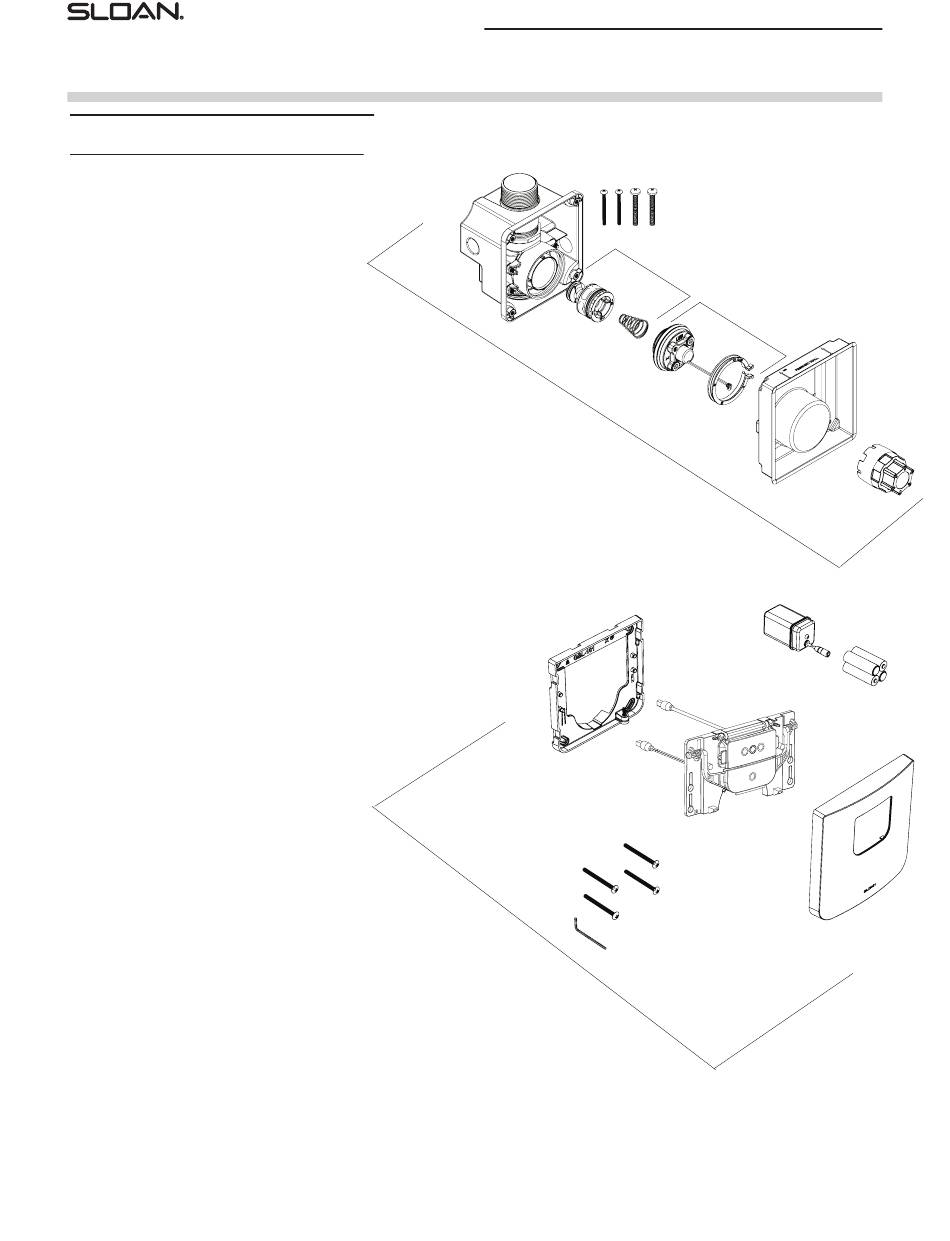

Valve Assembly Less Plate
2
See Table
Piston Assembly
3
See Table
Activation Assembly
4
34001003
Dual Flush Wall Plate
Assembly
The information contained in this document is subject to change without notice.

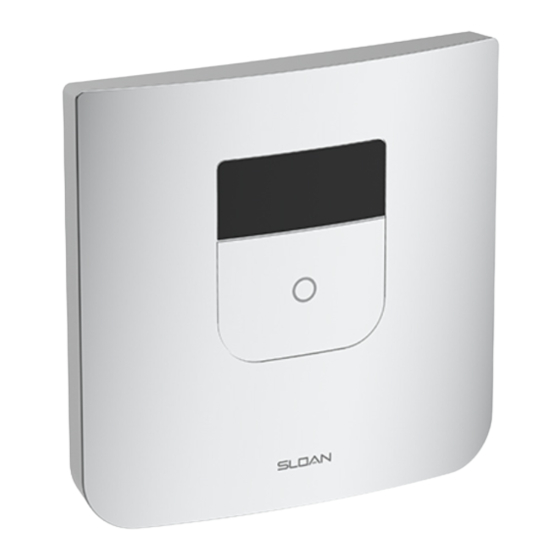

Repair Parts and Maintenance Guide
TruFlush Hardwired/Battery
Flushometers
2
1
4
1
3
Advertisement
Table of Contents
Related Manuals for Sloan TruFlush
Summary of Contents for Sloan TruFlush
- Page 1 Repair Parts and Maintenance Guide TruFlush Hardwired/Battery Flushometers Item Part Description No. No. See Table Valve Assembly Less Plate See Table Piston Assembly See Table Activation Assembly 34001003 Dual Flush Wall Plate Assembly The information contained in this document is subject to change without notice.
- Page 2 Repair Parts and Maintenance Guide TruFlush Hardwired/Battery Flushometers VALVE ASSEMBLY SELECTION GUIDE Code No. Part No. Description 34001003 TRF 8036 TRF8036 Dual Flush 3/6 LPF Valve PISTON PARTS LIST SELECTION GUIDE Code No. Part No. Description Piston Color* GBL Piston Assy-ELE Dual Flush Orange &...
- Page 3 Repair Parts and Maintenance Guide TruFlush Hardwired/Battery Flushometers 2. PISTON REPLACEMENT A. Tighten the retaining screw at the bottom right using Allen key B. Slide up wall plate C. Pull -out wall plate D. Disconnect Flushometer solenoid connector from the pcb Assembly. Pull on end connector to prevent damage to wires.
- Page 4 Repair Parts and Maintenance Guide TruFlush Hardwired/Battery Flushometers O. Activate Flushometer by pressing the flush Button. P. Adjust water flow as needed (See Section 4). Q. Put down the pcb Assembly Override Button. R. Install Wall Plate. 4. . ADJUST WATER FLOW A.
- Page 5 Activation Assembly not adjusted properly. Readjust Activation Assembly (see section 4). ii. Piston is damaged. Replace with new proper gpf/Lpf piston iii. Wrong TruFlush model installed; i.e.,1.6 gpf. model installed on 1.0 or 1.5 gal. urinal fixture. Replace with proper TruFlush model per guide.
