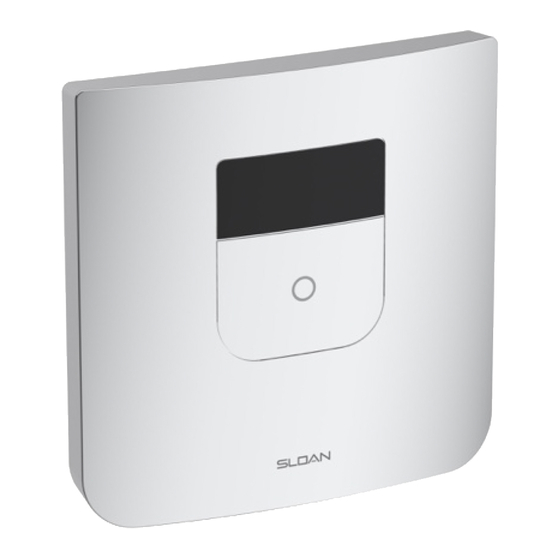

Sloan TruFlush TRF 8156 Repair Parts And Maintenance Manual

1A
1
2
3
4

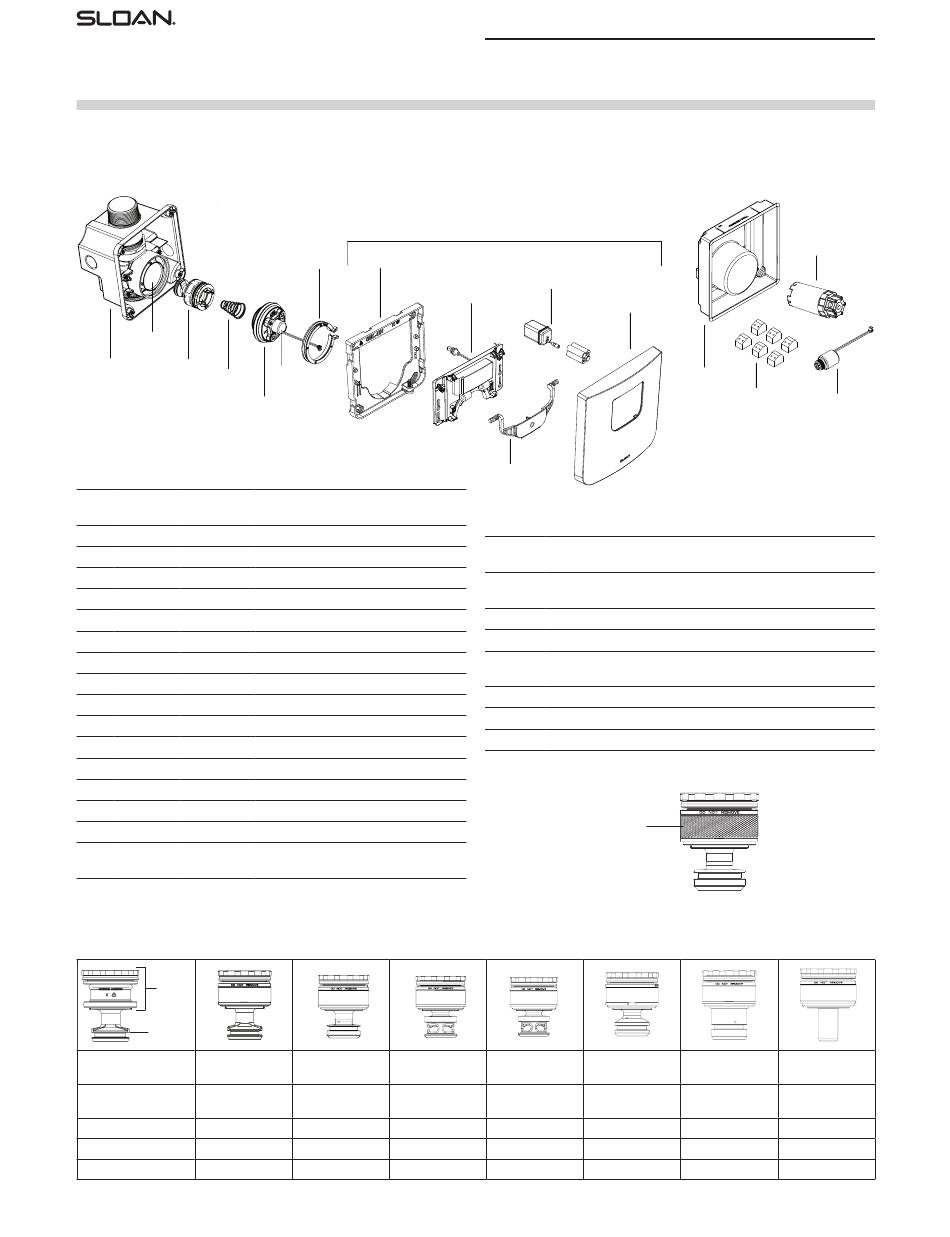

PARTS LIST
Item
No. Code No. Part No. Description
1 — — Valve Assembly with Box
1A 0340085 GBL-66-A
Shut Off Sleeve (with O-Ring)
See table to the right
2 Piston Assembly
—
3 — Conical Spring*
4 See table on next page Activation Assembly**
5 3340011 GBL-1011-A Safety Collar
6 0340101 GBL-101 TRF Sensor Closet Wall Bracket
7 — — TRF Sensor Assembly Repair Kit
See table on next page
8 Override Button Only
9103681PK
9 ELG-79 Battery Pack
0340142
10 GBL-128 TRF Sensor Finished Wall Plate, CP
11 33400036 GBL-1036-A Replacement Kit, Mud Guard Sensor (4 pack)
12 3340033 GBL-88-A Terminal Block Repair Kit (6)
13 3340012 GBL-1012-A Activation Assembly Tool
14 See table on next page Solenoid Repair Kit
—
15 GBL-205-A Finished Wall Plate and Sensor Assembly
(Includes items 6-10)
* Included with Piston Assembly. † Consult factory for alternate finishes.
** Includes Solenoid Repair Kit #14.
ITEM NO. 2 - SENSOR PISTON IDENTIFICATION CHART
PISTON
BODY
FLOW
CONTROL
Flush Volume
1.6 gpf WD (India)
Water Closet
Piston Body Orange with Screen
Flow Control Orange
Part Number GBL-1024-A
Code Number 3340024
6
5
14
†
†
1.6 gpf 1.28 gpf
Water Closet Water Closet
Green with Screen Light Blue with
Screen
Green Black Cage
GBL-1005-A GBL-1097-A
3340005 33400082
Repair Parts and Maintenance Guide
TruFlush Sensor Flushometer
Hardwired with Battery Backup
Sensor Closet Flushometers
TRF 8156 - 1.6 gpf
TRF 8156 - 1.28 gpf
TRF 8156 - 1.1 gpf
15
9
7
10
8
ITEM NO. 2 - SENSOR PISTON ASSEMBLY SELECTION GUIDE
Code No. Part No. Description
3340024
GBL-1024-A 1.6 gpf/6.0 Lpf Closet Piston Assembly
(Washdown)
3340005 GBL-1005-A 1.6 gpf/6.0 Lpf Closet Piston Assembly
33400082 GBL-1097-A 1.28 gpf/4.8 Lpf Closet Piston Assembly
33400065 GBL-1090-A 1.1 gpf/4.2 Lpf Closet Piston Assembly
3340007
GBL-1007-A 0.5 gpf/1.9 Lpf Urinal Piston Assembly
3340008
GBL-1008-A 0.25 gpf/1.0 Lpf Urinal Piston Assembly
33400001 — 0.125 gpf/0.48 Lpf Urinal Piston Assembly
* Colors may differ. Consult factory to confirm you have the correct Piston Assembly.
Piston Color*
FILTER SCREEN
DO NOT REMOVE
TRUFLUSH SENSOR PISTON
1.1 gpf 0.5 gpf
Water Closet Urinal
Burgundy with Red with Screen
Screen
Black Cage Red
GBL-1090-A GBL-1007-A
33400065 3340007
NOT AVAILABLE IN
USA OR CANADA
Sensor Urinal Flushometers
TRF 8196 - 0.5 gpf
TRF 8196 - 0.25 gpf
TRF 8196 - 0.125 gpf
13
11
12
Piston
Color*
Orange
Green
Blue/Black
Burgundy/
Black
Red
Burgundy
Red/Pink
SEE CHART BELOW FOR MORE
0.25 gpf 0.125 gpf
Urinal Urinal
Burgundy with Red with Screen
Screen
Burgundy Pink
GBL-1008-A —
3340008 33400001
14
