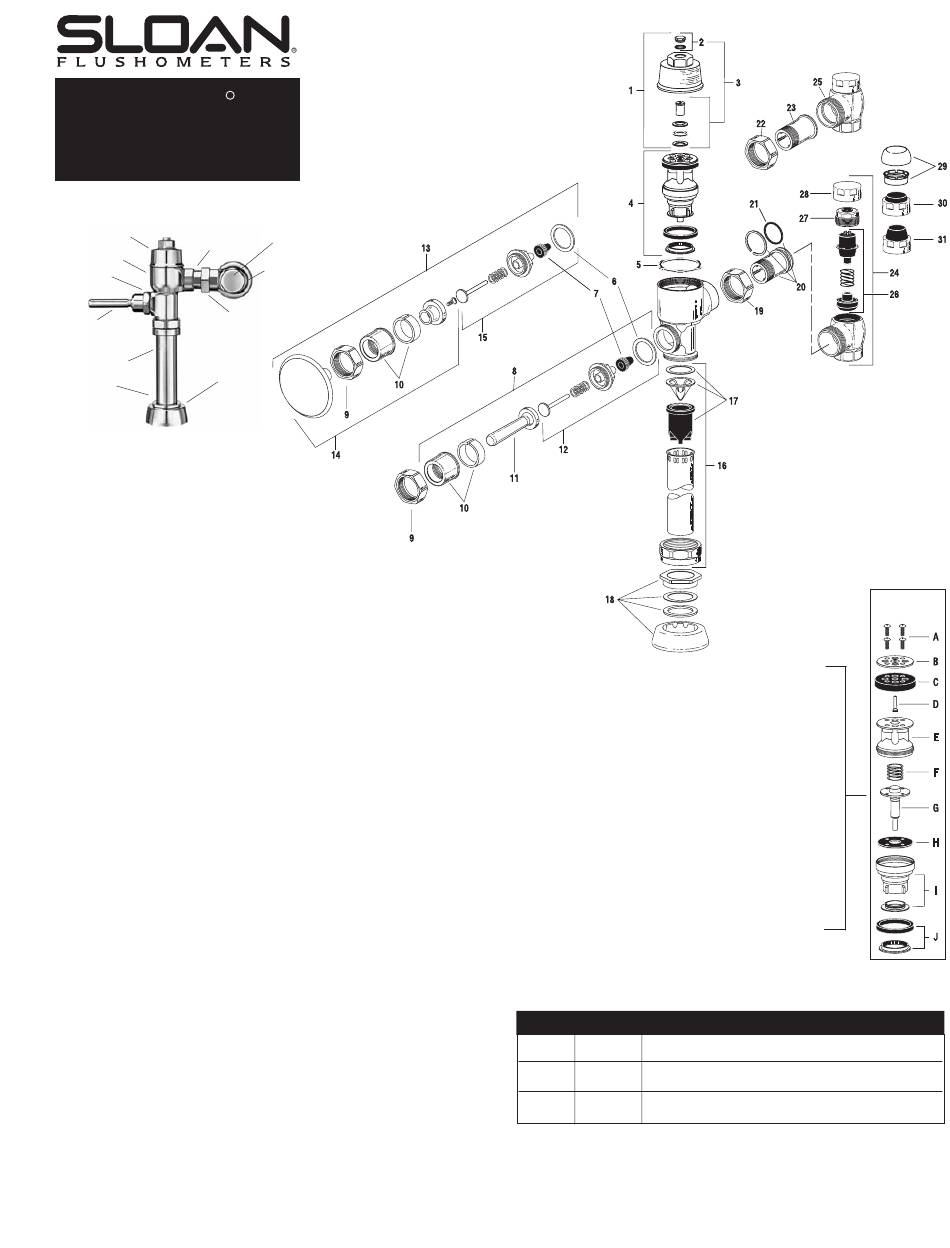

Sloan NAVAL Maintenance Manual

NAVAL NAVAL
Flushometer Flushometer
Maintenance Guide Maintenance Guide
Also for use with CROWN and STAR
®
COVER
TAILPIECE
BODY
HANDLE
COUPLING
STOP COUPLING
HANDLE
FLUSH CONNECTION
(VACUUM BREAKER)
SPUD
SPUD COUPLING
FLANGE

PARTS LIST

1. 0314193 CN-74-A Cover Assembly CP
2. 5314010 CN-1007-A Cap Screw Repair Kit - 6 per pkg.
3. 3314015 CN-1008-A Regulating Screw Repair Kit
4. 0314016 CN-1002-A Piston with Main Seat - Closet
0314017 CN-1003-A Piston with Main Seat - Urinal
0314191 CN-1009-A Piston with Main Seat - Shower
5. 5314243 CN-76 Cover Gasket - 12 per pkg.
6. 5301139 A-31 Handle Gasket - 48 per pkg.
7. 5302297 B-39 Handle Seal - 12 per pkg.
8. 0302390 B-73-A Triple Seal Handicap Handle Assembly (ADA Compliant)
9. 0301082 A-6 Handle Coupling CP
10. 0302109 B-7-A Socket Assembly CP
11. 0302389 B-74-A Handicap Handle Grip CP (ADA Compliant)
12. 3302306 B-51-A Triple Seal Handle Repair Kit - 1 per pkg.
13. 0303351 C-42-A 3'' Push Button Assembly CP
14. 3303347
C-1000-A 3'' Push Button Replacement Kit
15. 3303396
C-64-A 3'' Push Button Repair Kit
16. 5323005
V-500-A ¾'' x 9'' Vacuum Breaker
5323006
V-500-A 1¼'' x 9'' Vacuum Breaker
5323007
V-500-A 1½'' x 9'' Vacuum Breaker
17. 3323192 V-551-A Vacuum Breaker Repair Kit
18. 0306125 F-5-A ¾'' Spud Coupling CP
0306140 F-5-A 1¼'' Spud Coupling CP
0306146 F-5-A 1½'' Spud Coupling CP
19. 0308676 H-550 Stop Coupling CP
20. 0314289 NH-551-A Adjustable Tailpiece 2-1/16'' CP
21. 5308696 H-553 O-ring - 24 per pkg.
22. 0308063 H-6 Ground Joint Stop Coupling CP
23. 0314028 NH-5 Ground Joint Tailpiece 1-5/8''
24. 0388022 H-710-A 1'' Adjustable Tailpiece SD Bak-Chek Control Stop CP
0388025 H-710-A ¾'' Adjustable Tailpiece SD Bak-Chek Control Stop CP
25. 0388024 H-710-AG 1'' Ground Joint Screwdriver Bak-Chek Control Stop CP
0388026 H-710-AG ¾'' Ground Joint Screwdriver Bak-Chek Control Stop CP
26. 3308853 H-541-A Control Stop Repair Kit †
3308856 H-543-A Control Stop Repair Kit ‡
27. 0308612 H-622 Bonnet CP †
0308843 H-577 Bonnet CP ‡
28. 0308840 H-573 Control Stop Cap CP †
0308848 H-582 Control Stop Cap CP ‡
29. 3308791 H-1010-A Vandal Resistant Stop Cap Assembly †
3308790 H-1009-A Vandal Resistant Stop Cap Assembly ‡
30. 3308866 H-574 Control Stop Cap with Bumper †
31. 3308867
H-576 Control Stop Cap with Extended Bumper †
† For use with H-700-A 1'' & ¾'' and H-600-A 1'' Screwdriver Bak-Chek
‡ For use with H-600-A ¾'' Screwdriver Bak-Chek
SLOAN VALVE COMPANY • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131
Phone: 1-800-9-VALVE-9 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380 • http://www.sloanvalve.com
Copyright © 2003 Sloan Valve Company
R
Flushometers
®
CONTROL STOP
SUPPLY
FLANGE
®
Control Stops.
®
Control Stops.
Printed in the U.S.A.

NAVAL PISTON COMPONENTS

A 0314200 CN-17
B 0314082 CN-15
0314179 CN-15-A
C 5314188 CN-68-A
D 0314204 CN-57
E 0314228 CN-160
F 5328019 SH-406
G 0314078 CN-18-A
H 5314226
CN-120
I 0314240
CN-123-AC
0314242
CN-123-AU
0314189
CN-66-A
J 0314234
CN-21-A
0314223
CN-121-A
NOTE: Naval Pistons can be used to replace Pistons in older Crown and Star
Flushometers
CROWN/NAVAL VALVE WASHER SET - 6 per pkg. includes:
5314050 CN-1010-A
5, 6, 7, C, H, J, Cap Screw Gasket & Regulating Screw Packing
PISTON REBUILD KIT-CLOSET & URINAL - 6 per pkg. includes:
5314094 CN-1004-A
5, A, B, C, D, H, J, Cap Screw Gasket & Regulating Screw Packing
PISTON REBUILD KIT-SHOWER - 6 per pkg. includes:
5314184 CN-1006-A
5, A, B, C, D, H, J, Cap Screw Gasket & Regulating Screw Packing
The information contained in this document is subject to change without notice.
Made in the U.S.A. NAVAL M.G. — Rev. 1b (05/03)
Top Plate Screws - 24 per pkg.
Top Plate
Top Plate - Shower Valve only
Single Lip Cup - 12 per pkg.
Xpelor
Piston Body
Spring - 12 per pkg.
Relief Valve
Relief Valve Seat - 12 per pkg.
Guide Assembly - Closet
Guide Assembly - Urinal
Guide Assembly - Shower
Main Seat
Main Seat - Shower Valve only

REPAIR KITS

Code No. 0816187
No. 4 PISTON
(Exploded View)
