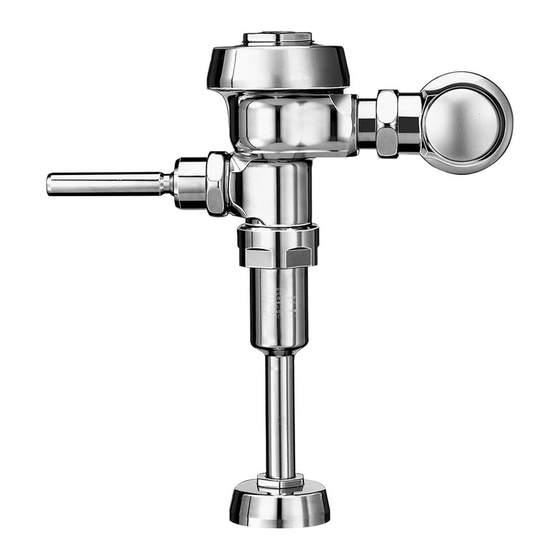

Sloan Royal Repair Parts And Maintenance Manual

Sloan Royal Repair Parts And Maintenance Manual

Flushometer

Advertisement

Quick Links

Valve Body
Body only
Body with tail
Consuly factory for
proper application
Control Stop and Caps
Tailpiece
ITEM 10A. SLIP JOINT GASKETS AND RINGS
Size
Code No.
Part No. Description
1-1/2"
5306058
F-3
5322001
VBF-5
0319086/5319086 S-30
0319079
S-21
1-1/2" x 1-1/4" 0396062
F-105
5306057
1-1/4"
F-3
5322176
VBF-5
0307052/5307052 G-21
1"
5306056
F-3
5306115
F-5
3/4"
5306055
F-3
5306113
F-5
* See pages 102-103 for additional lengths
† For use with 1" and 3/4" H-700-A and 1" H-600-A Bak-Chek
‡ For use with 3/4" H-600-A Bak-Chek
screwdriver control stop
®
RW for use with Reclaimed Water Flushometers
Sloan products are also available in satin, brushed nickel, chrome, gold and polished brass nishes – contact
factory for part numbers.
The information contained in this document is subject to change without notice.
TAILPIECES, CONTROL STOPS
AND FLUSH CONNECTIONS
For additional information on
tailpieces, control stops and ush
connections see Showerheads, Parts
and Accessories Tab.
Red Friction Ring
Black Slip Joint Gasket
Flexible Seat
Rigid Seat (rubber over brass)
Slip Joint Gasket – Rigid
Red Friction Ring
Black Slip Joint Gasket
Rigid Seat (rubber over brass)
Red Friction Ring
Black Slip Joint Gasket
Red Friction Ring
Black Slip Joint Gasket
screwdriver control stop
®
Repair Parts and Maintenance Guide
Royal
®
Flushometer

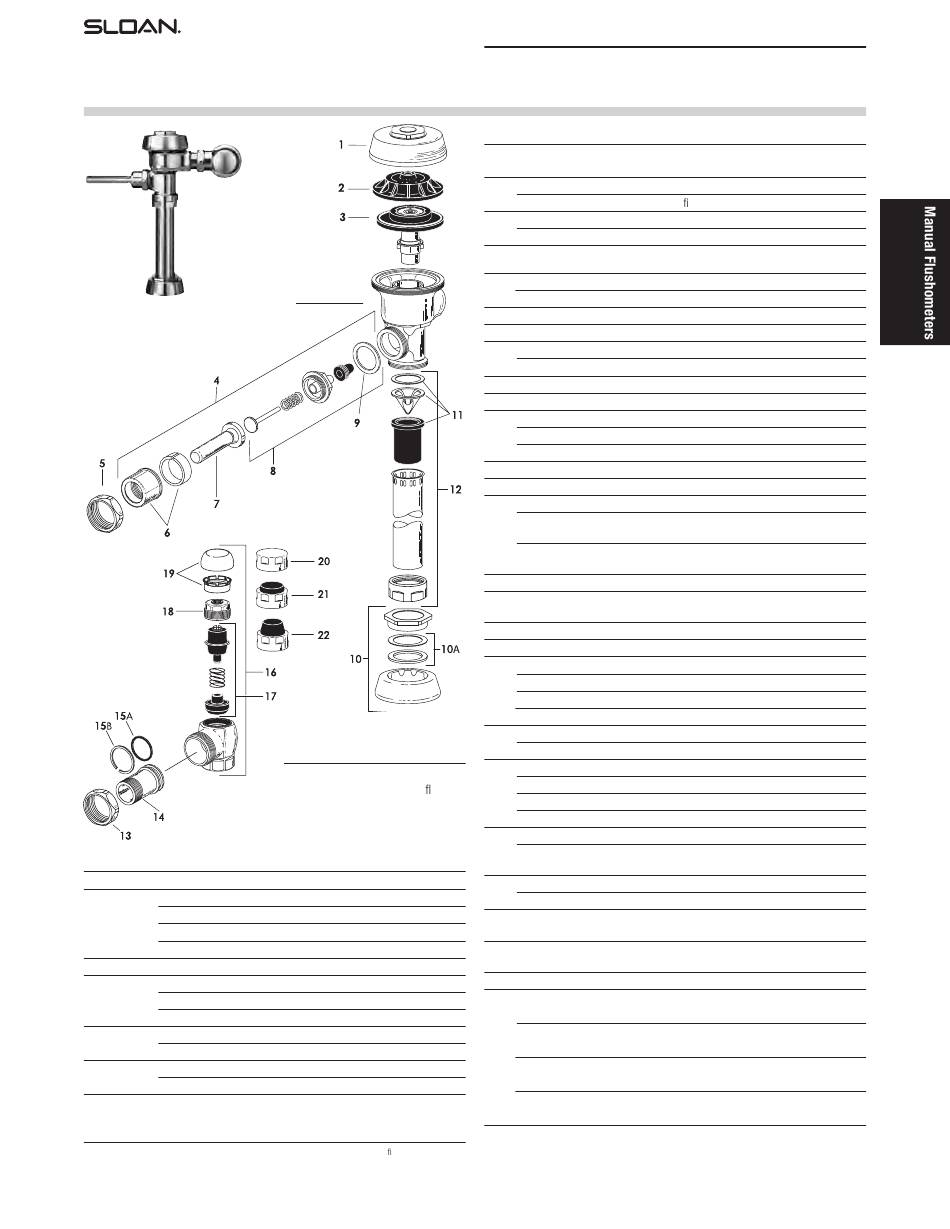

PARTS LIST
Item
No.
Code No. Part No.
Description
1.
0301172PK A-72
CP Cover
0301435PK A-72-HE
CP High Ef ciency Cover
2.
0301168
A-71
Inside Cover
0301336
A-71-1
Inside Cover (Purple)
3.
Dual-Filtered Bypass Diaphragm Assembly
(refer to table and diagram on following page)
4.
0302390
B-73-A
CP ADA-Compliant Triple Seal Handle Assembly
0302267
B-73-A-PH
CP ADA-Compliant Triple Seal Handle Assembly
5.
0301082
A-6
CP Handle Coupling
0302109
6.
B-7-A
CP Socket Assembly
0302389
7.
B-74-A
CP ADA-Compliant Handle
0302264
B-74-A-PH
CP ADA-Compliant Handle (Purple Handle)
3302306
8.
B-51-A
Triple Seal Handle Repair Kit
5301139
9.
A-31
Handle Gasket – 48 per package
0306125
10.
F-5-AW
3/4" (19 mm) CP Spud Coupling Assembly
0306140
F-5-AU
1-1/4" (32 mm) CP Spud Coupling Assembly
0306146
F-5-AT
1-1/2" (38 mm) CP Spud Coupling Assembly
10A. SEE SLIP JOINT GASKETS AND RINGS TABLE BELOW LEFT
11.
3323182
V-651-A
High Back Pressure Vacuum Breaker Repair Kit
12.
3393004
V-600-AA
3/4" (19 mm) x 9" (228 mm) CP Vacuum Breaker
3393006
V-600-AA
1-1/4" (32 mm) x 9" (228 mm) CP Vacuum
Breaker
3393007
V-600-AA
1-1/2" (38 mm) x 9" (228 mm) CP Vacuum
Breaker
13.
0308676
H-550
CP Stop Coupling
14.
0308801
H-551-A
CP Adjustable Tailpiece 2-1/16" (52 mm long)
Standard Length*
15A. 5308696
H-553
O-ring – 24 per package
15B. 5308381
H-552
Locking Ring – 12 per package
3308386
16.
H-700-A
1" (25 mm) CP Bak-Chek
0388141
H-700-A-RW 1" (25 mm) CP Bak-Chek
3308384
H-700-A
3/4" (19 mm) CP Bak-Chek
0388142
H-700-A-RW 3/4" (19 mm) CP Bak-Chek
17.
3308853
H-541-ASD Control Stop Repair Kit
3308856
H-543-ASD Control Stop Repair Kit
18.
0308612
H-622
CP Bonnet
0308892
H-608-RW
CP Bonnet
0308843
H-577
CP Bonnet
19.
3308772
H-1010-A
Vandal Resistant Control Stop Cap Assembly
3308790
H-1009-A
Vandal Resistant Control Stop Cap Assembly
H-600 3/4" Stop only
0308738
20.
H-573
Control Stop Cap CP
0308848
H-582
Control Stop Cap CP
3308866
21.
H-574
Control Stop Cap with Bumper
(–YO Variation)
3308867
22.
H-576
Control Stop Cap with Extended Bumper
(–YG Variation)
3388015
23.
H-1015
Flow Control Kit (not Shown) (HEU Only)
3308735
24.
H-634-AA-RW 1" (25 mm) Sweat Solder Kit w/ Cast Set Screw
Flange (not shown)
3308736
H-636-AA-RW 3/4" (19 mm) Sweat Solder Kit w/ Cast Set Screw
Flange (not shown)
3308785
H-636-AA
1" (25 mm) Sweat Solder Kit w/ Cast Set Screw
Flange (not shown)
3308788
H-636-AA
3/4" (19 mm) Sweat Solder Kit w/ Cast Set Screw
Flange (not shown)
*Contact factory for optional tune-up kits.
11
Screwdriver Stop
®
Screwdriver Stop
®
Screwdriver Stop
®
Screwdriver Stop
®
DISCONTINUED

Advertisement

loading
Need help?

Need help?

Do you have a question about the Royal and is the answer not in the manual?

Questions and answers

Summary of Contents for Sloan Royal

  • Page 1 *Contact factory for optional tune-up kits. RW for use with Reclaimed Water Flushometers Sloan products are also available in satin, brushed nickel, chrome, gold and polished brass nishes – contact factory for part numbers. The information contained in this document is subject to change without notice.
  • Page 2 NOTE: For older water closets that require 4.5 gpf (17.0 Lpf), choose kits A-1102-A or A-1038-A, but remove the ow ring before use. For blowout-style urinals that require 3.5 gpf (13.2 Lpf), choose kits A-1102-A or A-1038-A. For service sinks that require 6.5 gpf (24.6 Lpf), order A-36-A diaphragm repair kit (not shown Sloan Code No. 3301036) and remove the ow ring before use.
