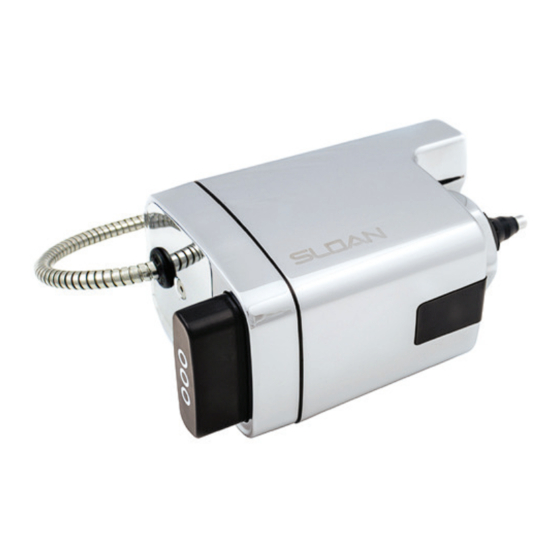

Sloan EL-750/Hardwired Repair Parts And Maintenance Manual

EL-750/Hardwired
Dual-flush Side Mount
Hardwired, sensor-activated, retrofit unit for exposed, dual-flush and
single-flush closet and single-flush urinal.
EBV-505-A
Dual-flush
Sleeve Assembly
(Supplied with Hex
Wrench
EBV-570-A
Single-flush
Sleeve Assembly
(Supplied with Hex
Wrench)
EBV-575-A
GEM ADAPTOR KIT FOR
SFSM ONLY
Yellow Gasket (For -G
Variation Only) EBV-576
(5325376) (Pack of 5)
Chrome Adapter
(For=G Variation Only)
The information contained in this document is subject to change without notice.
EL-700/Hardwired
Single-flush Side Mount
EL-750
Dual-flush
Side Mount
EL-700
Single-flush
Side Mount
EL-664-A Tray Assembly

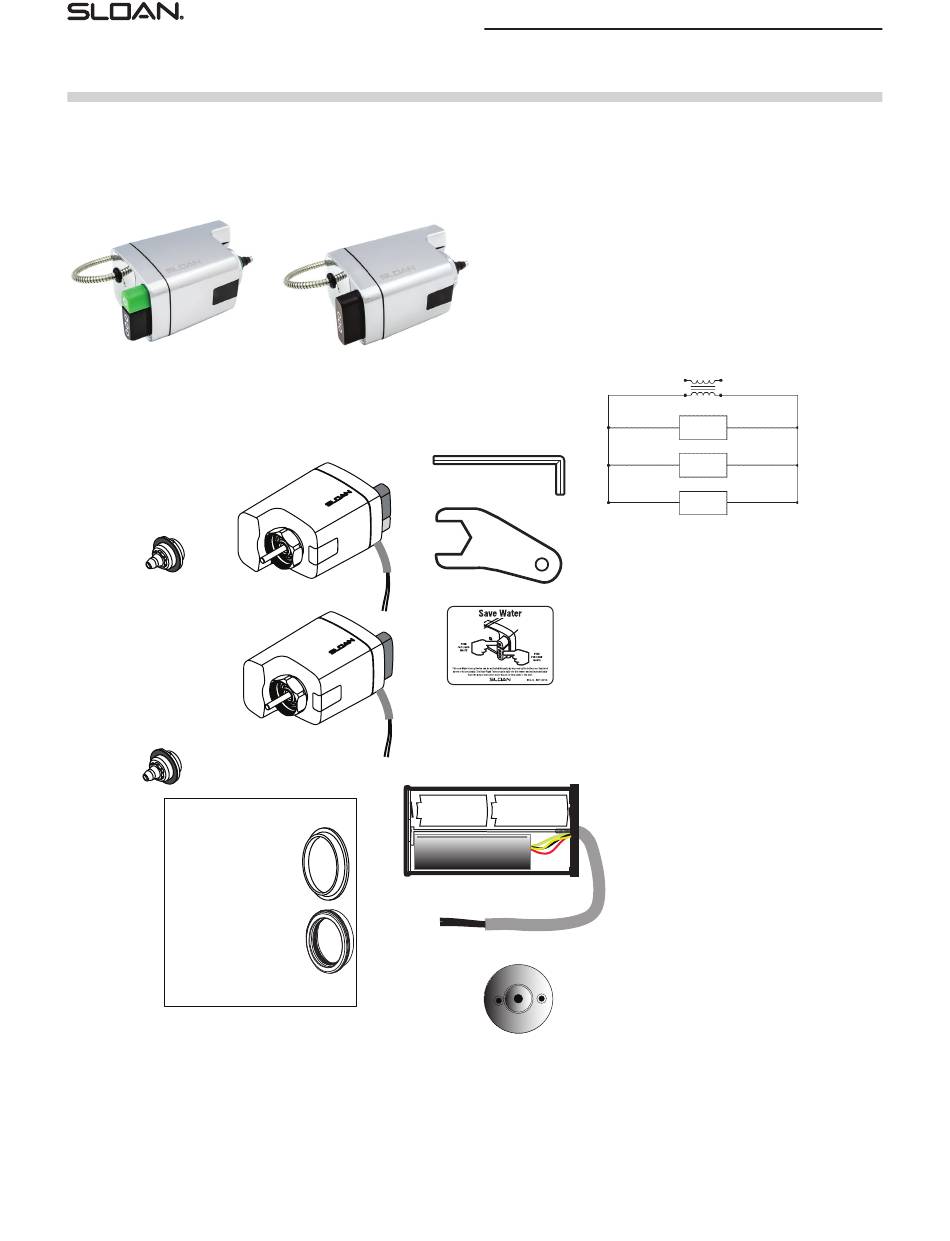

Repair Parts and Maintenance Guide
EL-750/EL-700 Hardwired Flushometers
VAC Power Requirement: Transformer 6 VAC 0.5 mA per
unit

Sloan Transformers:

EL-386 – 120 VAC/ 6 VAC Plug-in Transformers
EL-451 – 120 VAC/6 VAC 25 VA Box Style Transformers
NOTE: One (1) Hardwire Flushometer per each EL-386 Transform-
er and six (6) Hardwire Flushometers per each EL-451 Transformer
Battery Compartment
Hex Wrench 2.5 mm
EBV-545-A
Collar Wrench
WES-46 DFSM Wall Plate
EL-612-A Wall Flange
Mounting Kit
74

Wiring Diagram

120 VAC
6 VAC
Side
Mount
Side
Mount
Side
Mount
