ESSENTIAL INTERACTIVE SERIES

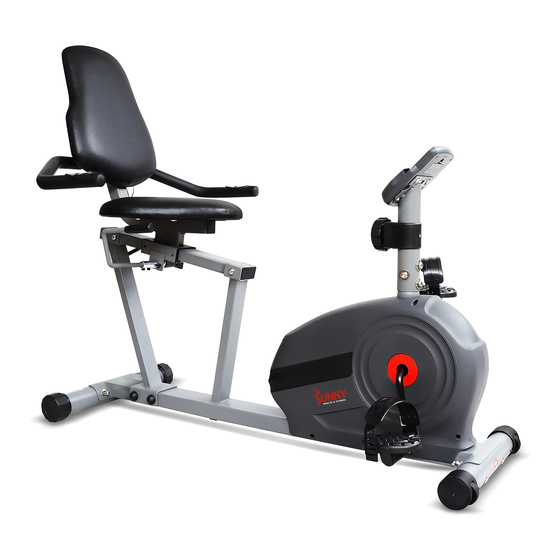

RECUMBENT BIKE
SF-RB422903
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
0

Advertisement

Table of Contents
loading

Related Manuals for Sunny Health & Fitness SF-RB422903

Summary of Contents for Sunny Health & Fitness SF-RB422903

  • Page 1 ESSENTIAL INTERACTIVE SERIES RECUMBENT BIKE SF-RB422903 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.

  • Page 3: Pre-Assembly Check List

    PRE-ASSEMBLY CHECK LIST .Before you start to assemble, please make sure all parts are included.

  • Page 4: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Tension Controller Handlebar Post Seat Rear Support Tube Backrest Slide Rail Meter Manual Handlebar Thank You Card Adjustment Handle Front Stabilizer Hardware Package Rear Stabilizer Battery 18L/R Pedal 1pr.

  • Page 5: Hardware Package

    HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed:  The model number (found on cover of manual)  The product name (found on cover of manual) ...
  • Page 6 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 1 Remove preassembled Carriage Bolts (No. 13) 4 Arc Washers (No. 14) and 4 Cap Nuts (No.
  • Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 2 A: Connect the Pulse Connecting Wire (No. Pulse Connecting Wire 2 (No. 24) and connect the Sensor Wire (No.
  • Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3 Connect the Pulse Connecting Wire (No. Pulse Connecting Wire 3 (No. 25). Lock the Rear Support Tube (No. 3) to the Main Frame (No.
  • Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5 Lock the Seat (No. 34) to the Seat Tube (No. 5) with 4 Screws (No. 27) and 4 Flat Washers (No.
  • Page 10 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 7 Remove the preassembled 4 Screws (No. 32) from the Meter (No. 92) using the Spanner (No. 88). Connect the Sensor Connecting Wire (No.

  • Page 11: Adjustment Guide

    ADJUSTMENT GUIDE ADJUSTING THE SEAT POSITION ADJUSTING THE LEVEL To move the Seat (No. 34) forward or If at any point the bike does not feel level, you can adjust the Rear End Caps (No. backward, while seated on the bike, put your 19).

  • Page 12: Battery Installation And Replacement

    BATTERY INSTALLATION & REPLACEMENT Battery Battery Cover BATTERY INSTALLATION 1. Take out 2 AAA batteries from computer box. 2. Press the buckle of battery cover on the Meter (No. 92), then remove battery cover. 3. Install 2 AAA batteries into the battery case on the back of the Meter (No. 92). Pay attention to the battery + and –...
  • Page 13 EXERCISE METER ■KEY FUNCTION  This key lets you to select and lock on to a particular function you want. SCAN→TIME→SPEED(SPD) →DISTANCE(DIST) →CALORIES(CAL)→TOTAL DIST(ODO) →RPM →PULSE  Pressing and hold with 3 seconds to reset the value to zero(without ODO). ■SLEEP MODE ...
  • Page 14 APP CONNECTION: 1. Scan the QR code below to download the SunnyFit app onto your mobile device. 2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in. 3.

  • Page 15: Exploded Diagram

    EXPLODED DIAGRAM 1 EXPLODED DIAGRAM 2...
  • Page 16 PARTS LIST Description Spec. Qty. Description Spec. Qty. Cross Pan Head Main Frame ST3.5x8 Self-Drilling Screw Handlebar Post Bushing Rear Support Tube Square Bushing Slide Rail Backrest Hex Socket Pan Seat Tube M8x50 Head Screw Handlebar Carriage Bolt M8x60 Adjustment Block Axle Foam Grip Adjustment Handle Wire Plug...

This manual is also suitable for:

Essential interactive series

Table of Contents
