COREZY 16-LEVEL SMART MAGNETIC
RESISTANCE RECUMBENT BIKE WITH
WORKOUT BANDS
SF-RB424006
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
Advertisement
Table of Contents
Related Manuals for Sunny Health & Fitness COREZY
Summary of Contents for Sunny Health & Fitness COREZY

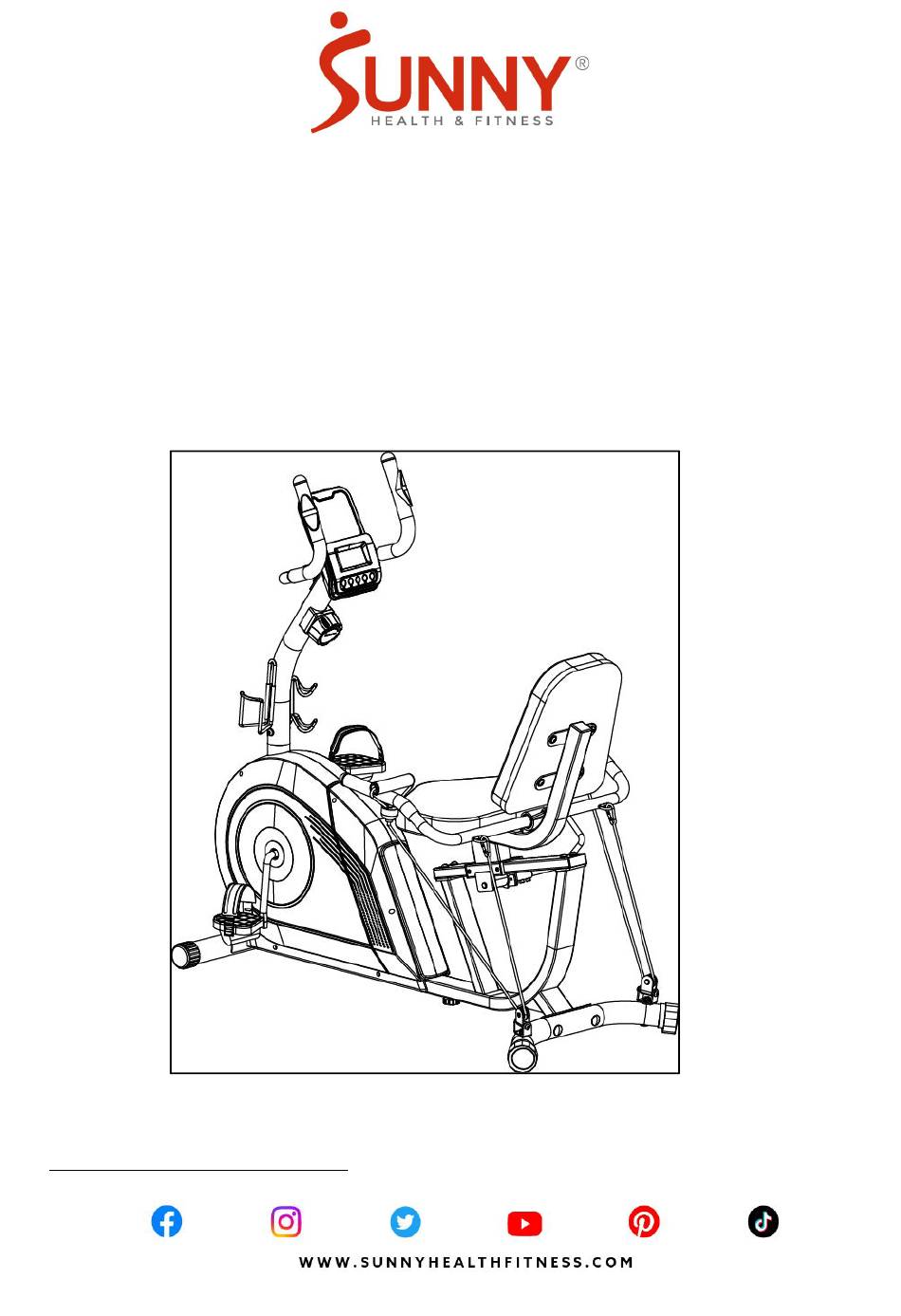

- Page 1 COREZY 16-LEVEL SMART MAGNETIC RESISTANCE RECUMBENT BIKE WITH WORKOUT BANDS SF-RB424006 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 3: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included Description Spec. Description Spec. Main Frame Right Pedal JD-22A Front Stabilizer Computer TZ-2190 Rear Stabilizer Bottle Holder Front Post Dumbbell Rack Front Handlebar Rope Group Rear Handlebar Adjusting Foot Pad M8*30... -
Page 4: Hardware Package
HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: The model number (found on cover of manual) The product name (found on cover of manual) ... - Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Attach the Front Stabilizer (No. 2) and Rear Stabilizer (No. 3) to the Main Frame (No.
- Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Align Left Pedal (No. 33) with Belt Pulley With Crank (No. 69) at 90° and gently insert the Left Pedal (No.
- Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 4: Remove 4 Bolts (No. 38) and 4 Big Arc Washers (No. 39) from the Main Frame (No.
- Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: Remove 2 Bolts (No. 18), 2 Washers (No. 19) and Handlebar Cover (No. 9) from the Seat Support Bracket (No.
- Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 7: Remove 2 Bolts (No. 38) and 2 Arc Washers (No. 49) from the Front Post (No.
- Page 10 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 9: Attach the Bottle Holder (No. 58) and Dumbbell Rack (No. 99) to the Front Post (No.
- Page 11 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). When you want to use the 2 Rope Groups (No. 106), you should be turn up the Rear Handlebar (No.
- Page 12 ADJUSTMENTS GUIDE MOVING THE RECUMBENT BIKE Lift the Rear Stabilizer (No. 3) and tilt the recumbent bike until the Transportation Wheels (No. 51) touch the ground. Now you can transport the recumbent bike to the desired location with ease. ADJUSTING THE BALANCE In order to achieve a smooth and comfortable ride, you must ensure that the recumbent bike is stable and secure.
-
Page 13: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION 1. Take out 2 AA batteries from computer box. 2. Press the buckle of battery cover on the Computer (No. 43), then remove battery cover. 3. Install 2 AA batteries into the battery case on the back of the Computer (No. 43). Pay attention to the battery + and –... -
Page 14: Exercise Computer
EXERCISE COMPUTER BLUETOOTH 1. The Bluetooth icon will flash when the computer is on or wakes from sleep mode. If no Bluetooth connection is established within 3 minutes, the Bluetooth icon will turn off. 2. The Bluetooth icon will stay on when it is connected. WIRELESS HEART RATE 1. -
Page 15: Function Buttons
FUNCTION BUTTONS MODE: 1. Press the button to select TIME, DIST(DISTANCE), CALORIES and PULSE to preset. 2. Press the button for selection function display on main LCD, or enter after setting. 3. Hold the MODE button for 2 seconds to reset all values except ODO(TOTAL DISTANCE) when the Bluetooth is not connected. -
Page 16: Operation Order
OPERATION ORDER: 1. Power on – Installs 2 pieces of 1.5V UM-3 or AA batteries. The computer start to segment test with a long beep sound. (Whenever batteries are removed, all the functions values will be reset to zero or default value.) 2. -
Page 17: App Connection
APP CONNECTION: Connect Smart Equipment to SunnyFit App: 1. Scan to download SunnyFit from the app store: 2. Ensure that the Bluetooth function is turned on from your mobile device. 3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in. -
Page 18: Exploded Diagram
EXPLODED DIAGRAM 1... - Page 19 EXPLODED DIAGRAM 2...
-
Page 20: Parts List
PARTS LIST Description Spec. Description Spec. Main Frame Right Pedal JD-22A Front Stabilizer Tension Wire L=1000mm Rear Stabilizer Sensor Wire L=550mm Front Post Extension Sensor Wire L=650mm Front Handlebar Bolt M8*20 Rear Handlebar Big Arc Washer Ф8*Ф20*2.0 Sliding Rail Tension Control Knob Tension Control Knob Seat Support Bracket L=320mm... - Page 21 PARTS LIST Description Spec. Description Spec. Open Face Bearing Bolt M6*12 S5 Bearing Housing Bearing 6001 Locking Nut–Right 15/16” Flywheel Ф200 Locking Washer Ф24*Ф40*3.0 Idler Wheel Shaft Belt PJ400 PC Pad Belt Pulley With Crank Φ260 Idler Wheel Screw ST4.2*20 Bolt M8*75 Left Belt Cove...
