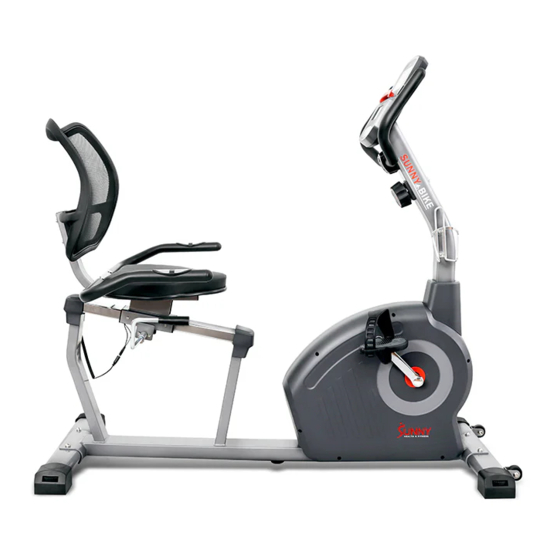

ELITE INTERACTIVE SERIES
EXERCISE RECUMBENT BIKE
SF-RB420046
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
Advertisement
Table of Contents
Related Manuals for Sunny Health & Fitness SF-RB420046
Summary of Contents for Sunny Health & Fitness SF-RB420046
- Page 1 ELITE INTERACTIVE SERIES EXERCISE RECUMBENT BIKE SF-RB420046 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 3: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included Description Spec. Description Spec. Main Frame Left Pedal Front Stabilizer Right Pedal Rear Stabilizer Front Post Cover Front Handlebar Water Holder Rear Handlebar Computer Seat Support Bracket Clamp Cover Seat Hardware Package... -
Page 4: Hardware Package
HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓ The model number (found on cover of manual) ✓ The product name (found on cover of manual) ✓... - Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Unscrew 4 Screws (No. 11) from Main Frame (No. 1) with Allen Wrench (No. 111).
- Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Align Left Pedal (No. 48) with Left Crank (No. 80) at 90° and gently insert pedal into the crank arm.
- Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: Remove 6 Bolts (No. 11), 4 Washers (No. 10) and 2 Big Arc Washers (No. 113) from the Main Frame (No.
- Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 6: Remove 2 Bolts (No. 60) and 2 Spring Washers (No. 39) from the Front Post (No. 4) with Allen Wrench (No.
- Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 8: Attach the Rear Handlebar (No. 6) to the Seat Support Bracket (No. 9) with 2 Bolts (No.
- Page 10 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 10: Attach Bottle Holder (No. 57) to the Front Post (No. 4) with 2 Screws (No. 58). Tighten secure with...
-
Page 11: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION 1. Take out 2 AA batteries from computer box. 2. Press the buckle of battery cover on the Computer (No. 59), then remove battery cover. 3. Install 2 AA batteries into the battery case on the back of the Computer (No. 59). Pay attention to the battery + and –... - Page 12 ADJUSTMENTS GUIDE MOVING THE RECUMBENT BIKE Lift the Rear Stabilizer (No. 3) and tilt the recumbent bike until the Transportation Wheels (No. 50) touch the ground. Now you can transport the recumbent bike to the desired location with ease. ADJUSTING THE BALANCE In order to achieve a smooth and comfortable ride, you must ensure that the recumbent bike is stabled and secured.
-
Page 13: Exercise Computer
EXERCISE COMPUTER FUNCTION BUTTONS MODE 1. Press the button to select hour, minute, year, month and date for setting. 2. Press the button to select TIME, DISTANCE, CALORIES and PULSE to preset. 3. Press the button for selection function display on main LCD, or enter after setting. 4. - Page 14 CALORIES Accumulates calories consumption during training from 0 to max. 999 calories. The user may also preset the target calorie before training by press SET & MODE button. Each setting increase is10 cal. Note : This data is a rough guide for comparison of different exercise sessions which can not be used in medical treatment.
- Page 15 8. Recovery – When the PULSE is working, you can press “RECOVERY” button to start the recovery test function. The monitor will count down from 0:60 second to 0:00 and the heart beat symbol will be glitter till counting down to “0:00”. During 60 seconds counting period, please heart rate sensor is attached.
- Page 16 APP CONNECTION: 1. Scan the QR code below to download the SunnyFit app onto your mobile device. 2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in. 3.
-
Page 17: Exploded Diagram
EXPLODED DIAGRAM 1... - Page 18 EXPLODED DIAGRAM 2...
-
Page 19: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION Remove the computer and verify that the wire from computer properly connected to the wire that comes from the front post. Check batteries correctly There is no display on the computer. positioned and battery springs are in proper contact with batteries. -
Page 20: Parts List
PARTS LIST Description Spec. Description Spec. Main Frame Handle Pulse Wire L=750mm Ф12.1 Front Stabilizer Plug Rear Stabilizer Screw ST4.2*20 Φ25 Front Post End Cap Front Handlebar Bolt M8*45 Rear Handlebar Cap Nut Sliding Rail Bolt M8*40 Ф8 Seat Adjusting Tube Spring Washer Seat Support Bracket Square End Cap... - Page 21 PARTS LIST Description Spec. Description Spec. Ф24*Ф30*360 Foam Grip Magnetic Bracket Tension Control L=420mm Magnet Seat Knob Tension Control Wire Magnet 40*25*10 Ф5*Ф18*1.0 Big Arc Washer Screw ST2.9*9 Ф15*50*Ф1.5 Bolt M5*55 Spring Screw ST4.2*16 Bolt M6*45 Shipping Tube Cover Limit Column Bolt M6*10 Φ17*1...
