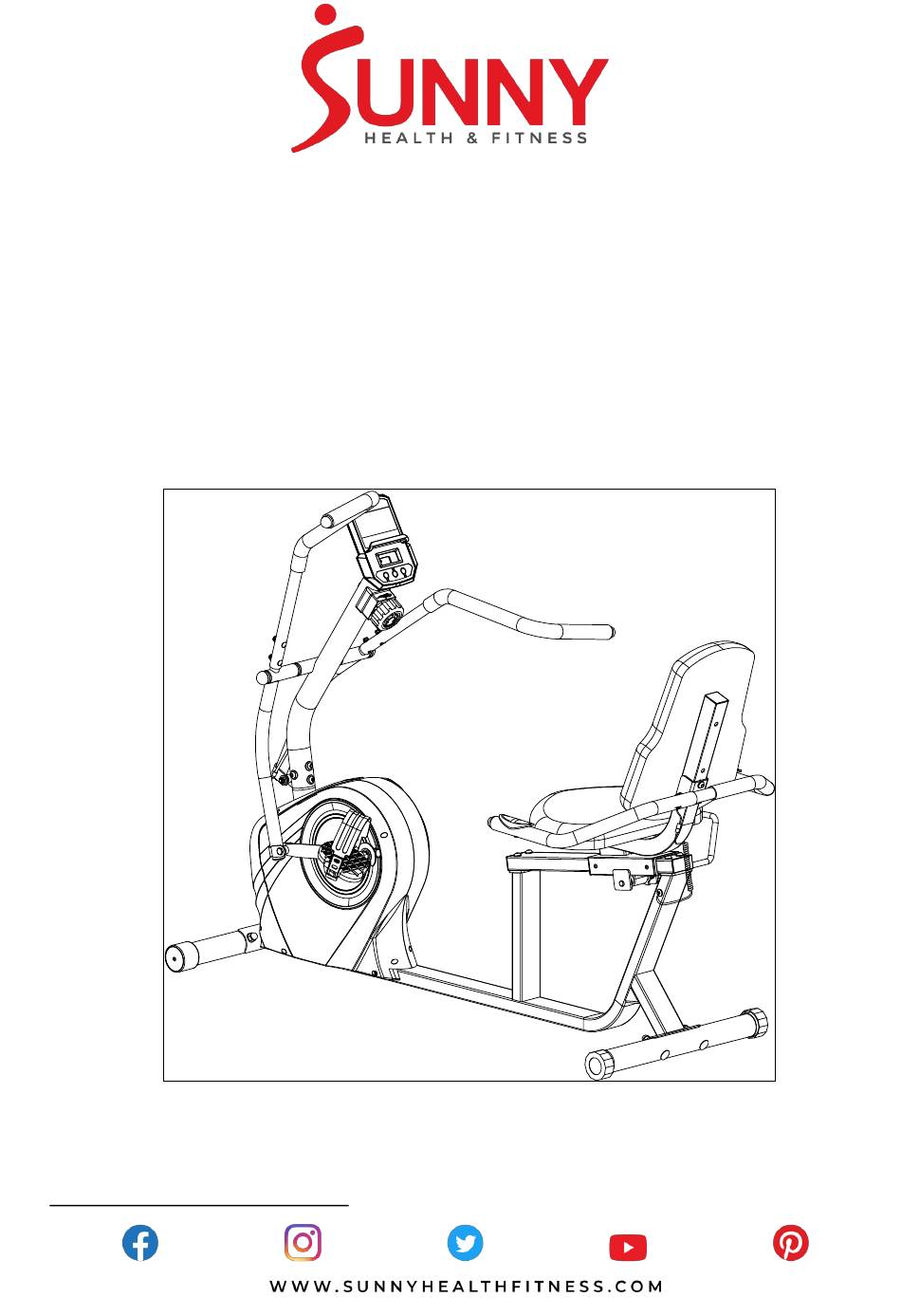

CROSS TRAINER MAGNETIC
RECUMBENT BIKE WITH ARM
EXERCISERS
SF-RB4936
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
Advertisement
Table of Contents
Related Manuals for Sunny Health & Fitness SF-RB4936
Summary of Contents for Sunny Health & Fitness SF-RB4936
- Page 1 CROSS TRAINER MAGNETIC RECUMBENT BIKE WITH ARM EXERCISERS SF-RB4936 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 3: Exploded Diagram
EXPLODED DIAGRAM 1... - Page 4 EXPLODED DIAGRAM 2...
-
Page 5: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Ф24*Ф30*500 Front Post Foam Grip Seat Adjusting Tube End Cap Ф12.5 Front Stabilizer Plug Rear Stabilizer Flexible Wire L=1650mm Left Swing Tube End Cap Ф8*Ф16*1.5 Right Swing Tube Washer Ф8 Connecting Rod Spring Washer Left Handlebar... - Page 6 Description Spec. Qty. Description Spec. Qty. Ф6*Ф16 Washer Idler Wheel Screw M6*15 PC Pad Spring Screw M8*18.5 Belt Pulley with Spring Crank Ф24*Ф40 Locking Washer Left Belt Cover 15/16” Locking Nut-Right Right Belt Cover Open Face Bearing Decorative Circle Self-tapping Drilling Bearing Housing ST4.2*20 Screw...
-
Page 7: Hardware Package
HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: The model number (found on cover of manual) The product name (found on cover of manual) ... - Page 8 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Attach the Front Stabilizer (No. 4) and Rear Stabilizer (No. 5) to the Main Frame (No.
- Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Remove 4 Screws (No. 24) and 4 Washers (No. 63) from Seat (No. 80) using the Allen Wrench (No.
- Page 10 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: Remove 6 Screws (No. 24), 6 Arc Washers (No. 21) and 6 Spring Washers (No. 50) from the Main Frame (No.
- Page 11 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 6: Remove 2 Screws (No. 39), 2 Spring Washers (No. 38), 2 D Washers (No. 36), 2 Washers (No.
- Page 12 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 7: Remove the 2 Washers (No. 56), 2 Spacers (No. 55), 2 Sleeves (No. 57), 2 Spring Washers (No.
- Page 13 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 8: Attach the Left & Right Handlebars (No. 9 & No. 10) to the Left & Right Swing Tubes (No.
-
Page 14: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION 1. Take out 2 AAA batteries from computer box. 2. Press the buckle of battery cover on the Computer (No. 29), then remove battery cover. 3. Install 2 AAA batteries into the battery case on the back of the Computer (No. 29). Pay attention to the battery + and –... - Page 15 ADJUSTMENTS GUIDE MOVING THE RECUMBENT BIKE Lift the Rear Stabilizer (No. 5) and tilt the recumbent bike until the transportation wheels on the Left & Right End Caps (No. 18L/R) touch the ground. Now you can transport the recumbent bike to the desired location with ease.
-
Page 16: Exercise Computer
EXERCISE COMPUTER FUNCTION BUTTONS: MODE: Press the button to select TIME, DISTANCE, and CAL to preset. Press the button for selection function display value on LCD or enter after setting. Press the button and hold for 3 seconds to reset all values except odometer to zero. - Page 17 6. TIME: Accumulates total time from 00:00 up to 99:59. The user may preset target time by pressing SET & MODE buttons. Each increment is 1 minute. Automatically counts down from targeting value during exercise. 7. CALORIES: Accumulates calories burned during training from 0 to 9999 Cal. The user may also preset the target calories before training by pressing the SET &...
-
Page 18: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION Remove the computer and verify that the wire from computer properly connected to the wire that comes from the front post. Check batteries correctly There is no display on the computer. positioned and battery springs are in proper contact with batteries.
