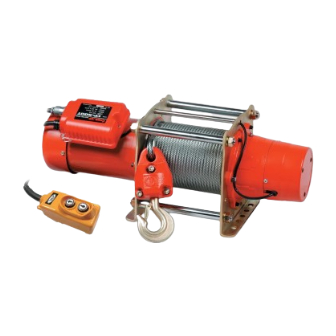

Comeup CP-500T Quick Start Manual

Electric winch
Hide thumbs Also See for CP-500T:
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual

Introduction

 Feature
Lifting capacity:
Lifting height:
Lifting speed:
Brake:
Control:
 Unpacking
．Winch assembly
．Wire rope 7 mm x 60 m
．Weight hook CHW-0005
．Pendant switch CPB-213 w/cord 3.5 mm
．PN 158842 excludes remote control Part
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part
PN: 155760 380V50Hz 157799 415V50Hz 153440 440V60Hz
500 kg at wire rope top layer
58 m
12~18 m/min at 50Hz ; 14~22m/min at 60Hz
Electromagnetic spring-applied failsafe brake
Pendant switch powers the winch
Electric Winch
CP-500T
Model:
158842 415V50Hz 931093 380V60Hz
2
x 5C x 6 m
No.19
1pc
1pc
1pc
1pc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP-500T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Comeup CP-500T

Summary of Contents for Comeup CP-500T

  • Page 1 Electric Winch CP-500T Model: PN: 155760 380V50Hz 157799 415V50Hz 153440 440V60Hz 158842 415V50Hz 931093 380V60Hz Introduction  Feature Lifting capacity: 500 kg at wire rope top layer Lifting height: 58 m Lifting speed: 12~18 m/min at 50Hz ; 14~22m/min at 60Hz...
  • Page 2 Installation Before using the winch, make sure all electrical components have no corrosion or damaged; the environment should be clear and dry.  Performance Winch Model CP-500T Motor kw x p 1.8 x 4 Size (mm) Recommend Wire Rope Breaking (kg)
  • Page 3 Warning ． The winch is not intended to be used in any manner for the movement or lifting of personnel. ． The lifting capacity shown is based on the top layer of rope on the drum. ． The rope winding on the drum shall remain 5 wraps from the drum. Parts List Item No.
  • Page 4 Winch Assembly...
